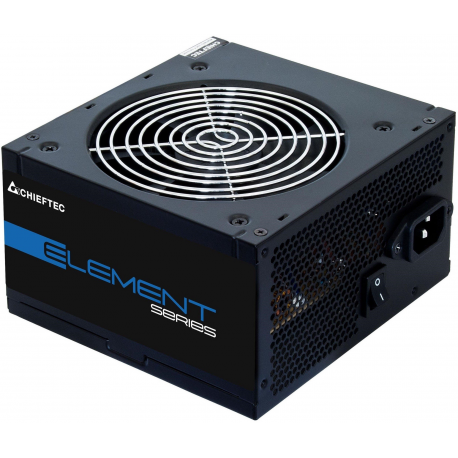

Chieftec ELEMENT Series ELP-500S - Power supply (internal) - ATX12V 2.3 - 80 PLUS Bronze - AC 230 V - 500 Watt - active PFC - decent black
images are for illustrative purposes only
New
Article: 3040192 Intrastat: 85044090 SKU: ELP-500S
Pricing and stock details are available to registered users only.
| Total power | 500 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 4 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 456 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V1) | 38 A |
| Max output current (+5V) | 17 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 85% |
| Power protection features | Over power, Over voltage, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 50 cm |
| Number of SATA power connectors | 3 |
| SATA power cable length | 150,500 mm |
| EPS power connector (4+4 pin) | Y |
| PCI Express power connectors (6+2 pin) | 1 |
| PCI Express power cable length | 50 cm |
| Floppy disk drive connector | Y |
| PCI Express connector | Y |
| Purpose | PC |
| Power supply unit (PSU) form factor | PS/2 |
| 80 PLUS certification | 80 PLUS Bronze |
| Supported motherboard form factors | ATX |
| ATX version | 2.3 |
| Certification | CE, CB, EAC, ErP, RoHS, interseroh, TÜV |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Y |
| Cables included | AC, PCIe, Peripheral (Molex), SATA |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.44 kg |
| Package weight | 1.7 kg |
| Package type | Box |
