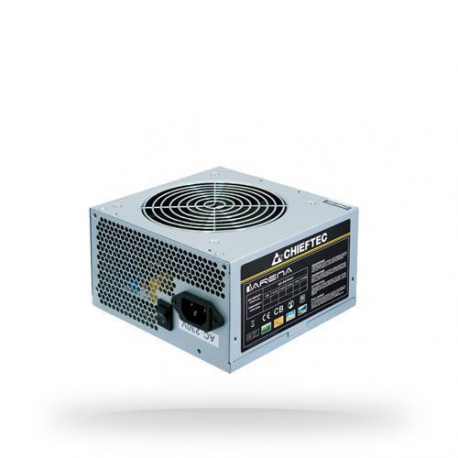

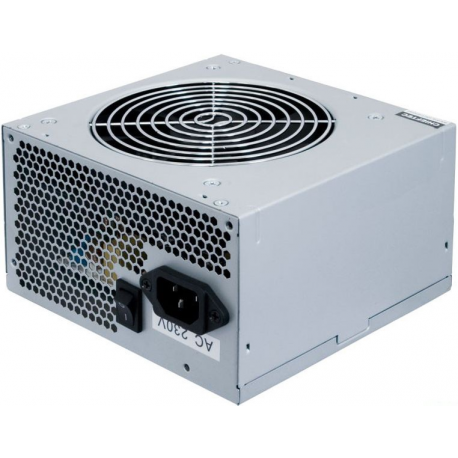

Chieftec iARENA GPA-500S8 - Power supply (internal) - ATX12V 2.3 - 80 PLUS - AC 230 V - 500 Watt - active PFC

  • CASE PSU ATX 500W/GPA-500S8 CHIEFTEC
  • CASE PSU ATX 500W/GPA-500S8 CHIEFTEC
images are for illustrative purposes only

New

Article: 3039872 Intrastat: 85044090 SKU: GPA-500S8
Pricing and stock details are available to registered users only.
 Add to compare
Total power500 W
AC input voltage230 V
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)130 W
Combined power (+12V)396 W
Combined power (+5V)130 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)12.5 W
Max output current (+3.3V)22 A
Max output current (+12V)24 A
Max output current (+5V)19 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)2.5 A
Power protection featuresOver current, Over voltage, Overload, Short circuit, Under voltage, Overheating
Motherboard power connector20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)2
Number of SATA power connectors3
PCI Express power connectors (6+2 pin)1
CPU P4 connector (4-pin)1
Floppy drive power connector1
PurposePC
Power supply unit (PSU) form factorATX
ATX version2.3
Noise level24 dB
Mean time between failures (MTBF)100000 h
CertificationFCC, CE, CB
Product colourGrey
Fan diameter12 cm
Sustainability certificatesRoHS
Dimensions (WxDxH)150 x 140 x 87 mm
