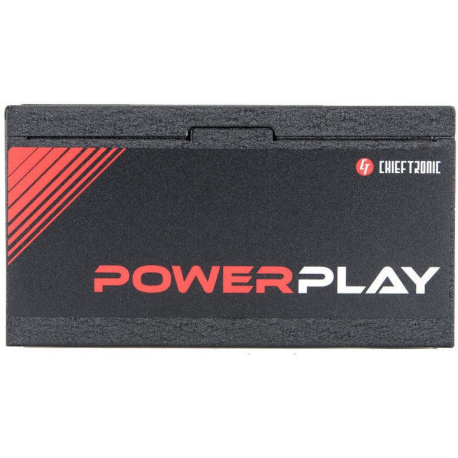

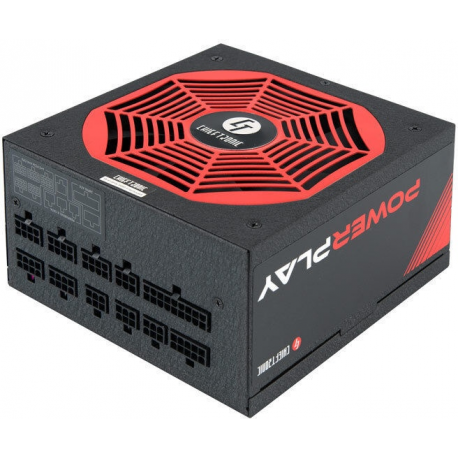

Chieftronic PowerPlay Series 850W - Power supply (internal) - ATX12V 2.3/ EPS12V/ PS/2 - 80 PLUS Platinum - AC 100-240 V - 850 Watt - active PFC
images are for illustrative purposes only
New
Article: 3040072 Intrastat: 85044090 SKU: GPU-850FC
Pricing and stock details are available to registered users only.
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 12 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 849.96 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 100 A |
| Max output current (+12V) | 70.83 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit |

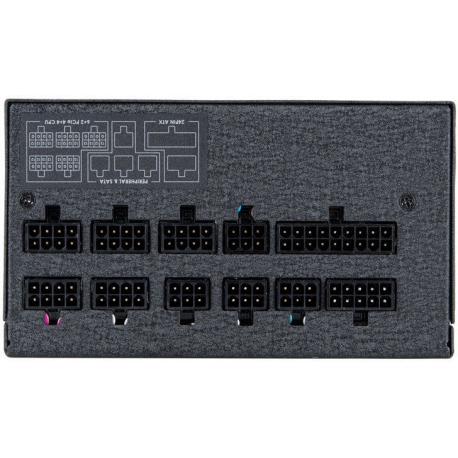

| Motherboard power connector | 20+4 pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 9 |
| SATA power cable length | 150,800 mm |
| Peripheral (Molex) power cable length | 150,700 mm |
| EPS power connector (8-pin) | Y |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power cable length | 60 cm |
| ATX power connector (20+4 pin) | Y |
| Floppy drive power connector | 1 |
| Floppy disk drive connector | Y |
| PCI Express connector | Y |

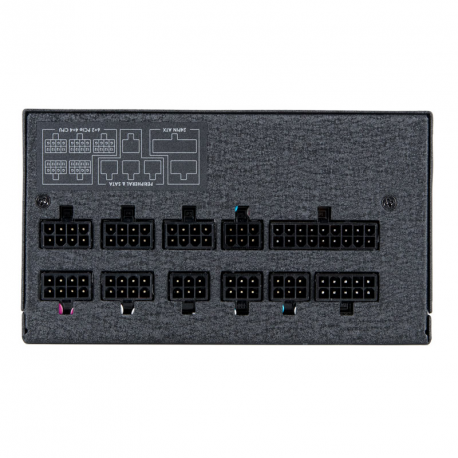

| Cabling type | Modular |
| Purpose | PC |
| Power supply unit (PSU) form factor | PS/2 |
| 80 PLUS certification | 80 PLUS Platinum |
| ATX version | 2.3 |
| Product colour | Black, Red |
| Cooling type | Active |

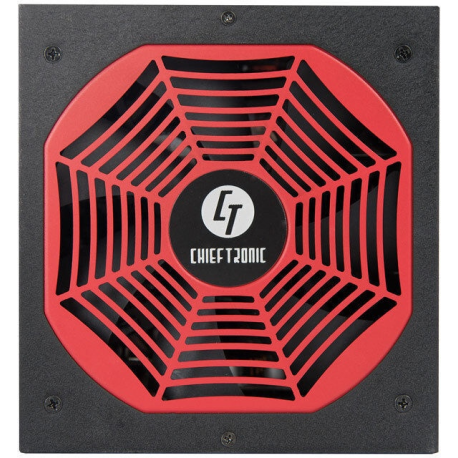

| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |

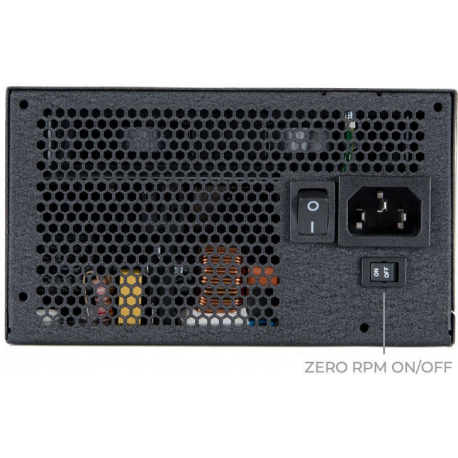

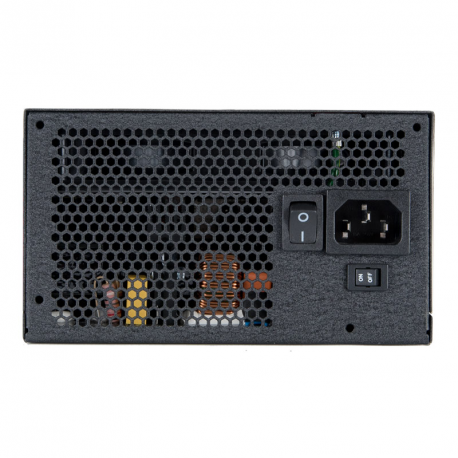

| On/off switch | Y |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 3.41 kg |
| Package weight | 3.82 kg |
| Package type | Box |
| Harmonized System (HS) code | 84733020 |
