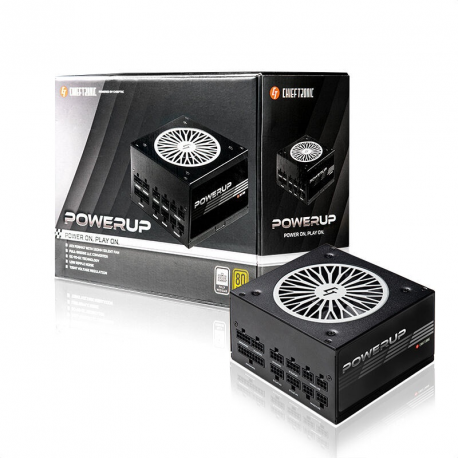

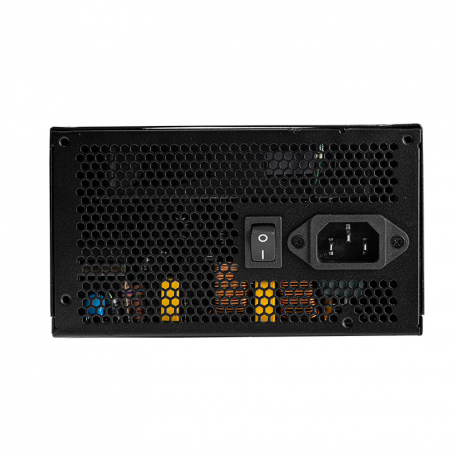

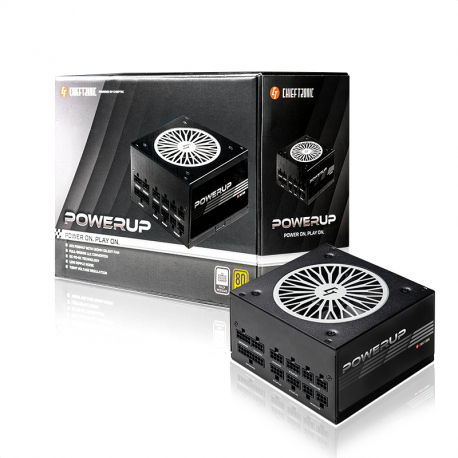

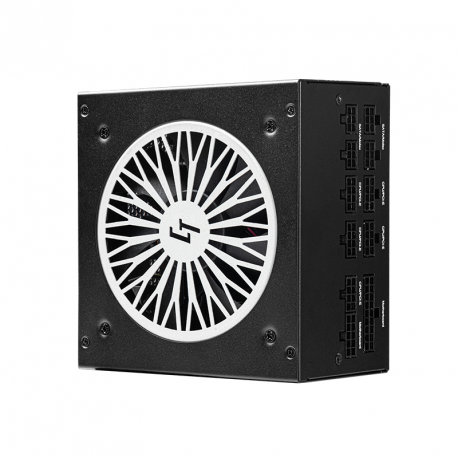

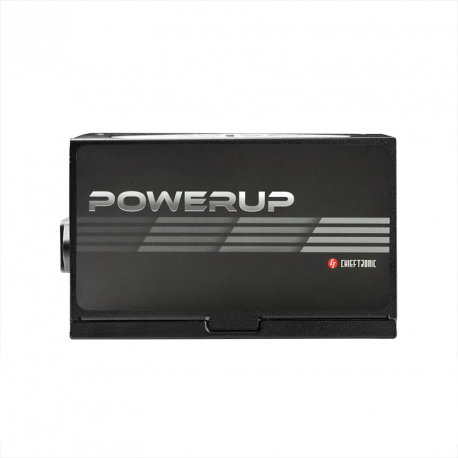

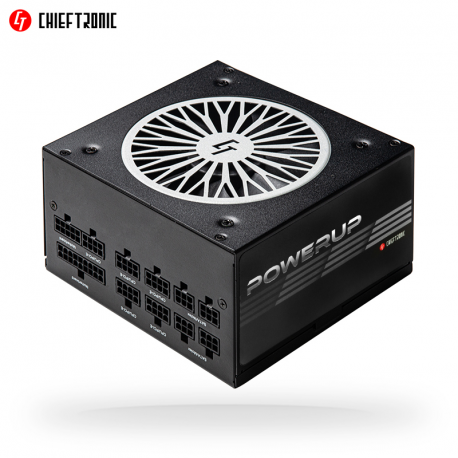

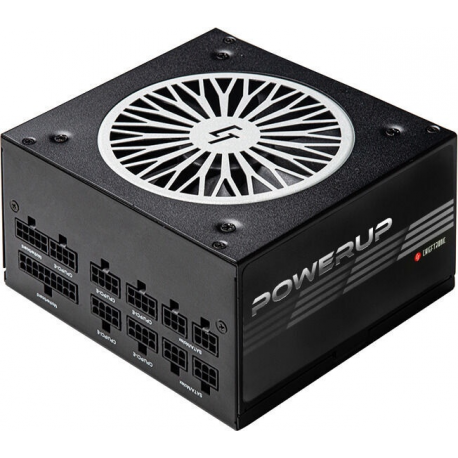

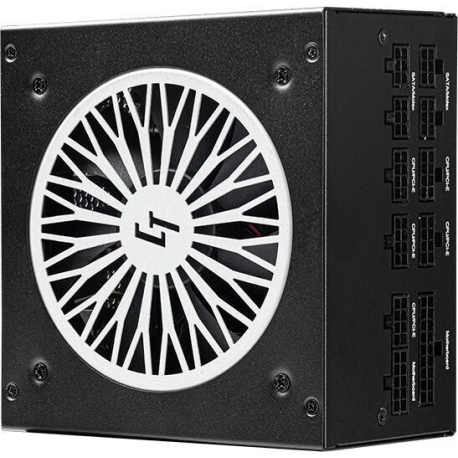

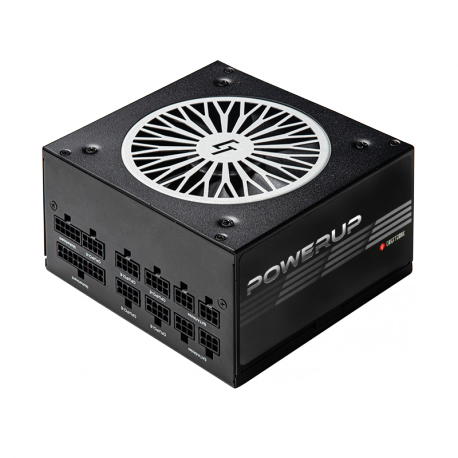

Chieftronic PowerUp Series 650W - Power supply (internal) - ATX12V 2.53 - 80 PLUS Gold - AC 100-240 V - 650 Watt - active PFC
images are for illustrative purposes only
New
Article: 3039092 Intrastat: 85044090 SKU: GPX-650FC
Pricing and stock details are available to registered users only.
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.53 |
| PSU Form Factor | ATX |
| Input Voltage | AC 100-240 V |
| Frequency Required | 47 - 63 Hz |

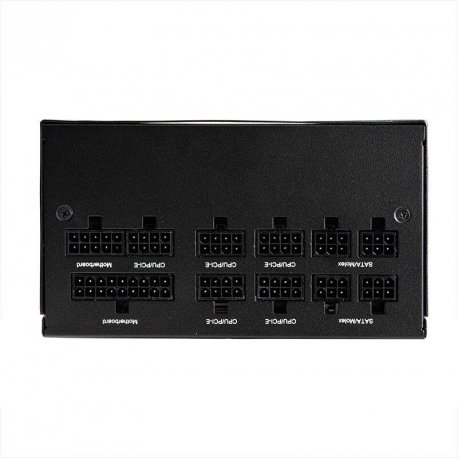

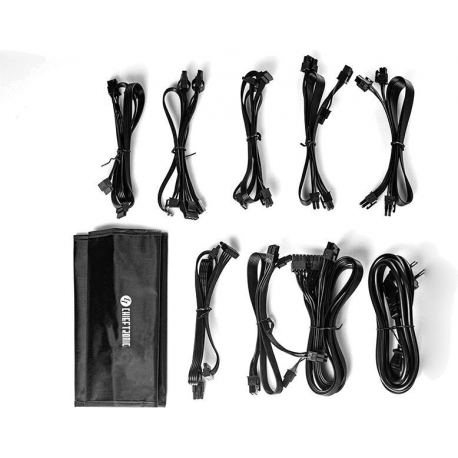

| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section 2 x power 8 pin +12V with detachable 4 pin section 3 x 4 PIN internal power 9 x 15 pin Serial ATA power 2 x 8 pin PCI Express power with detachable 2 pin section 1 x 4 PIN mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 650 Watt |
| Output Current | +3.3V - 20 A +5V - 20 A +12V - 54 A -12V - 0.3 A +5VSB - 2.5 A |

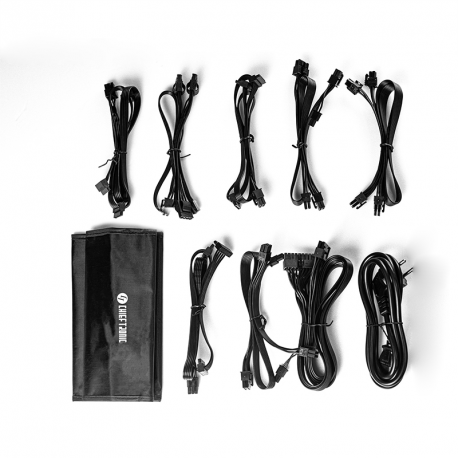

| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |

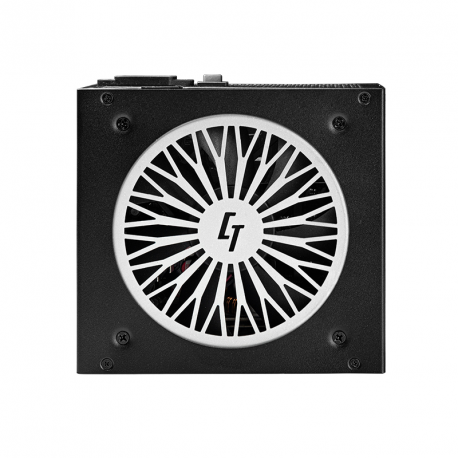

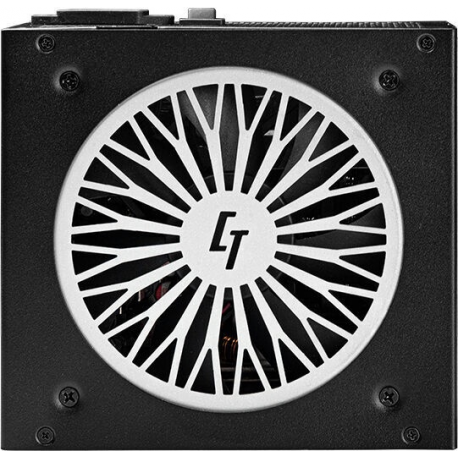

| Cooling System | 120 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, short-circuit protection, no load operation protection, fully modular, Automatic Fanspeed Control (AFC), Surge & Inrush Protection (SIP) |
| Compliant Standards | CB, RoHS, ErP Ready, EAC, TUV Rheinland |
| Service & Support | Limited warranty - 5 years |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
| Weight | 2.2 kg |
| Shipping Weight | 2.75 kg |
