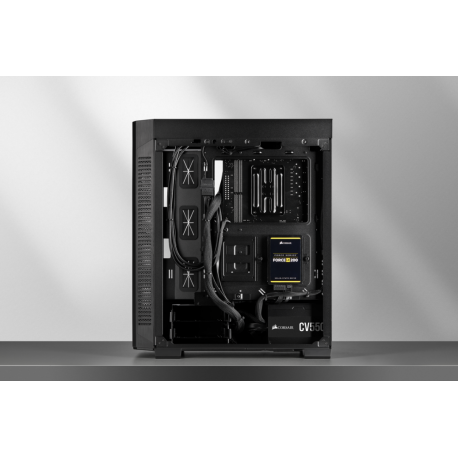

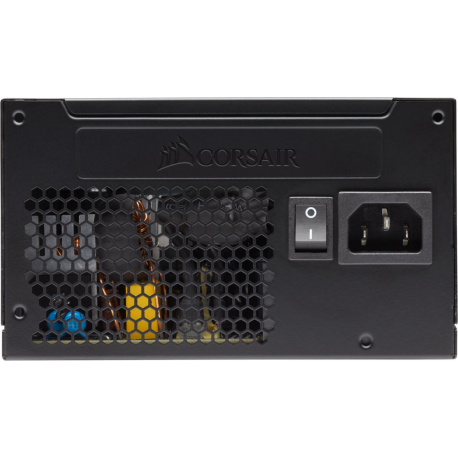

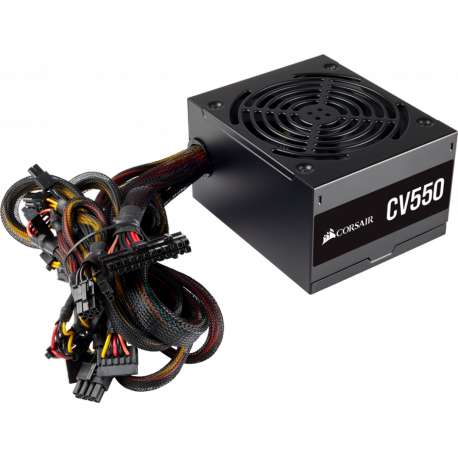

CORSAIR CV Series CV550 - Power supply (internal) - ATX12V 2.31/ EPS12V 2.92 - 80 PLUS Bronze - AC 100-240 V - 550 Watt - Europe - black powder coat

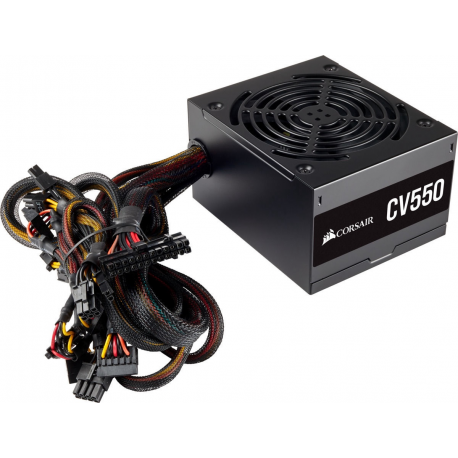

  • Corsair CV Series, CV550, 550 Watt, 80 PLUS Bronze, EU Version

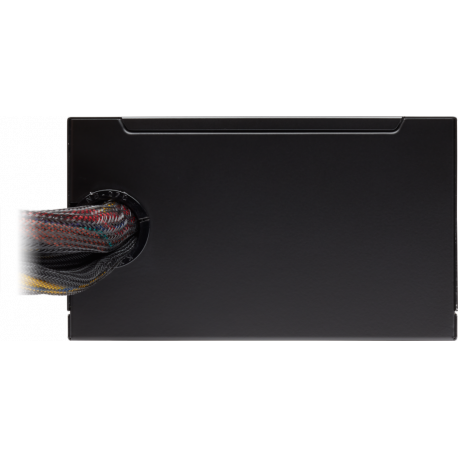

  • Corsair CV Series, CV550, 550 Watt, 80 PLUS Bronze, EU Version

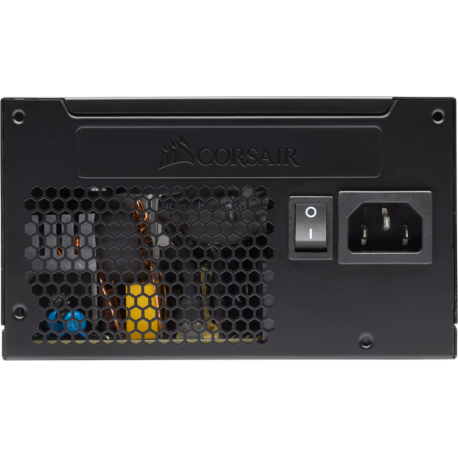

  • Corsair CV Series, CV550, 550 Watt, 80 PLUS Bronze, EU Version

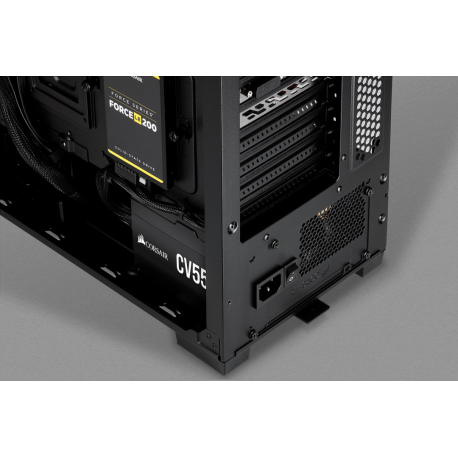

  • Corsair CV Series, CV550, 550 Watt, 80 PLUS Bronze, EU Version

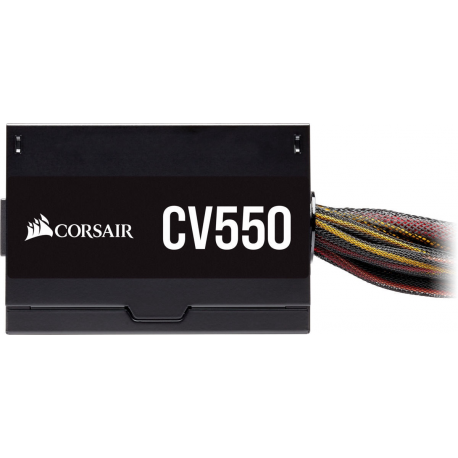

  • Corsair CV Series, CV550, 550 Watt, 80 PLUS Bronze, EU Version

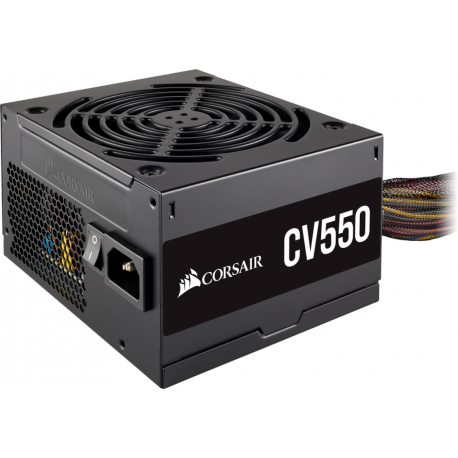

  • Corsair CV Series, CV550, 550 Watt, 80 PLUS Bronze, EU Version

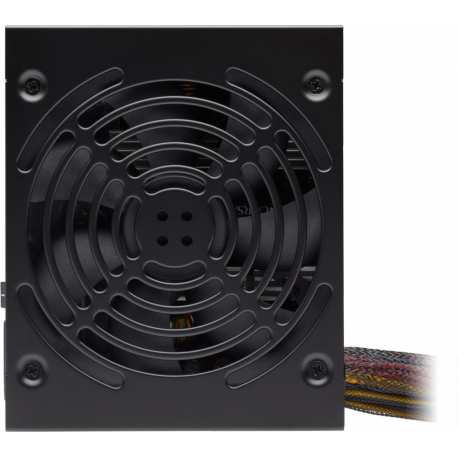

  • Corsair CV Series, CV550, 550 Watt, 80 PLUS Bronze, EU Version

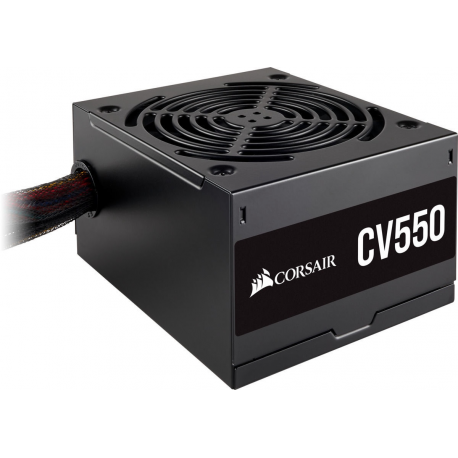

  • Corsair CV Series, CV550, 550 Watt, 80 PLUS Bronze, EU Version
  • Corsair CV Series, CV550, 550 Watt, 80 PLUS Bronze, EU Version
  • Corsair CV Series, CV550, 550 Watt, 80 PLUS Bronze, EU Version
  • Corsair CV Series, CV550, 550 Watt, 80 PLUS Bronze, EU Version
  • Corsair CV Series, CV550, 550 Watt, 80 PLUS Bronze, EU Version
images are for illustrative purposes only

New

Article: 3038368 Intrastat: 85044090 SKU: CP-9020210-EU
Pricing and stock details are available to registered users only.
 Add to compare
Device TypePower supply - internal
Specification ComplianceATX12V 2.31/ EPS12V 2.92
PSU Form FactorATX
ColourBlack powder coat
LocalisationEurope
Input VoltageAC 100-240 V
Frequency Required47 - 63 Hz
Power Output Connectors Details1 x power 24 pin ATX with detachable 4 pin section 1 x power 8 pin EPS12V 2 x PCI Express 7 x 15 pin Serial ATA power 1 x 4 PIN mini-power connector
Output Voltage+3.3, +5, ±12 V
Power Capacity550 Watt
Output Current+3.3V - 24 A +5V - 20 A +12V - 44 A -12V - 0.3 A +5VSB - 3 A
80 PLUS Certification80 PLUS Bronze
MTBF100,000 hours
Cooling System120 mm fan
FeaturesSingle 12V rail, sleeve bearing cooling fan, non-modular
Service & SupportLimited warranty - 3 years
Width15 cm
Depth12.5 cm
Height8.6 cm
