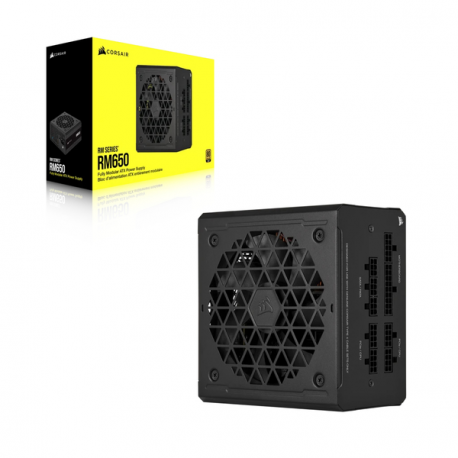

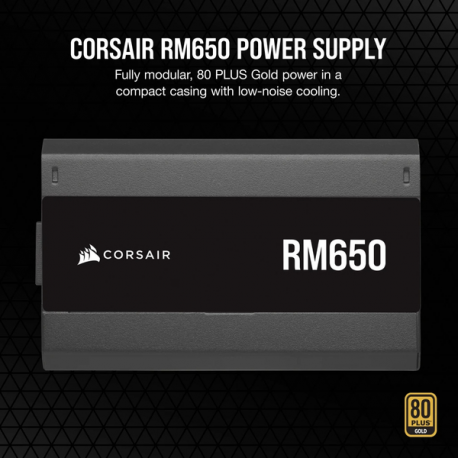

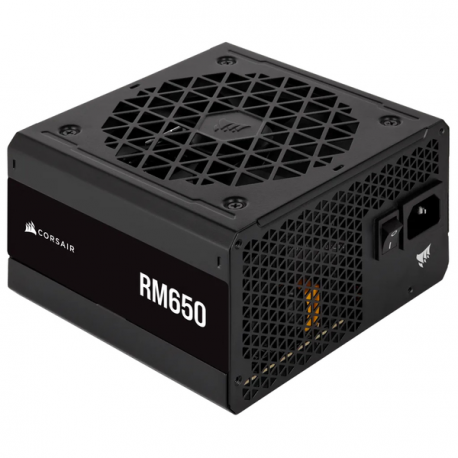

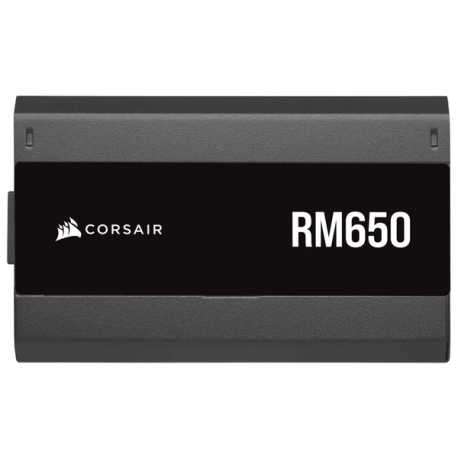

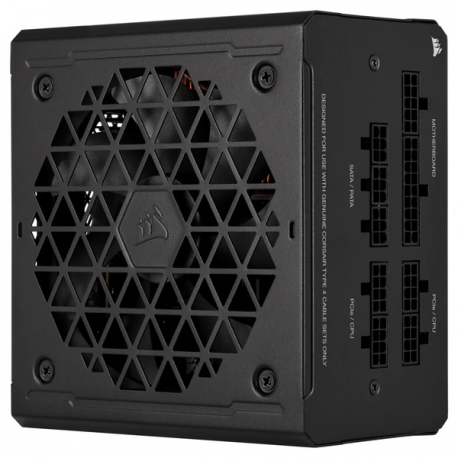

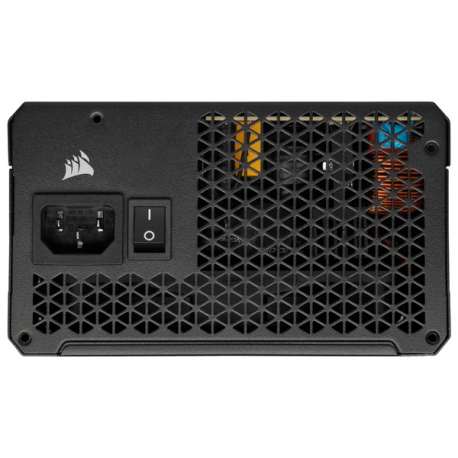

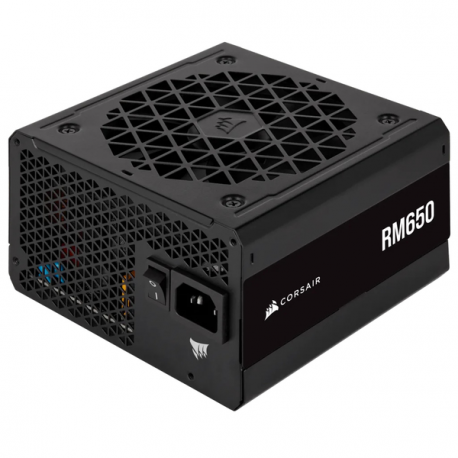

CORSAIR RM Series RM650 PSU 650 Watt 80 PLUS GOLD Certified Fully Modular
images are for illustrative purposes only
New
Article: 3220480 Intrastat: 85044090 SKU: CP-9020280-EU
Pricing and stock details are available to registered users only.
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 650 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |

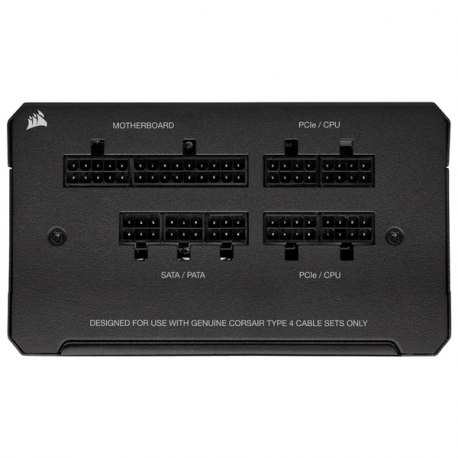

| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 7 |
| Number of PATA power connectors | 4 |
| SATA power cable length | 100,500 mm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |

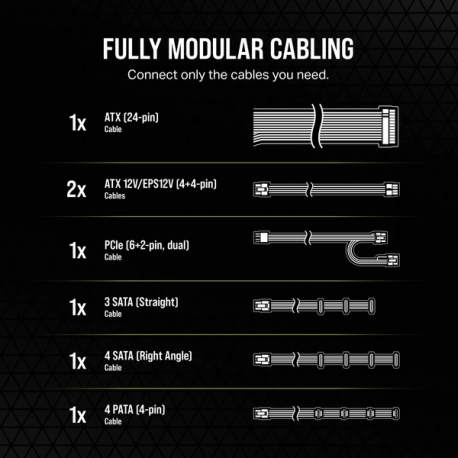

| Cabling type | Fully-Modular |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |

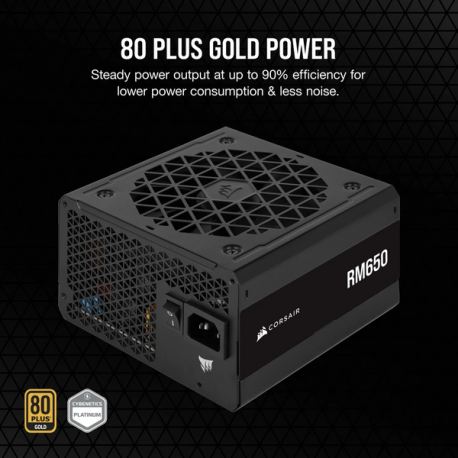

| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.53 |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |

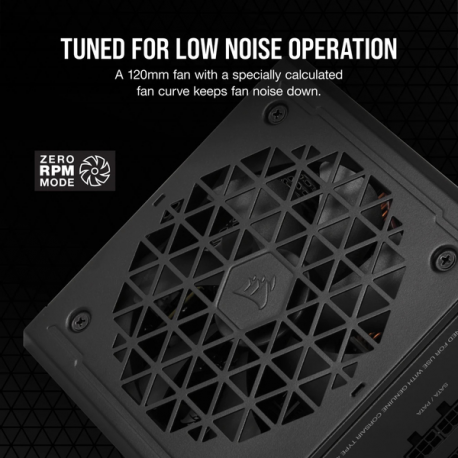

| Cooling type | Active |

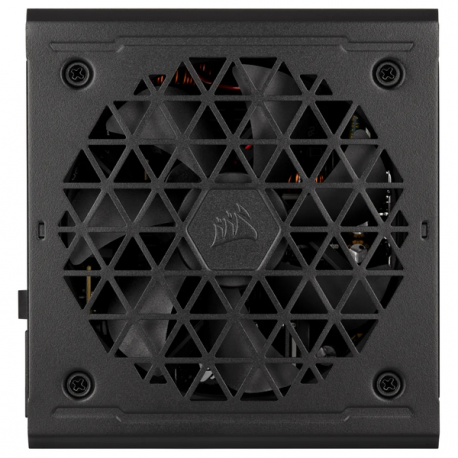

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 2.26 kg |
