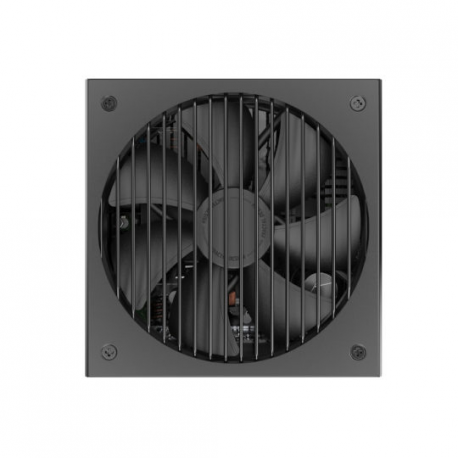

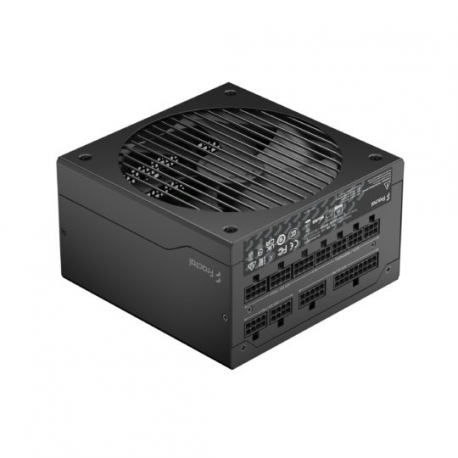

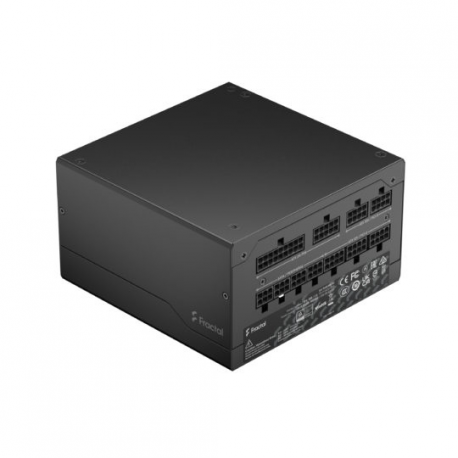

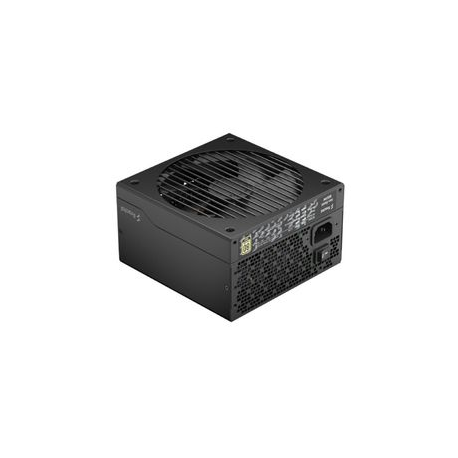

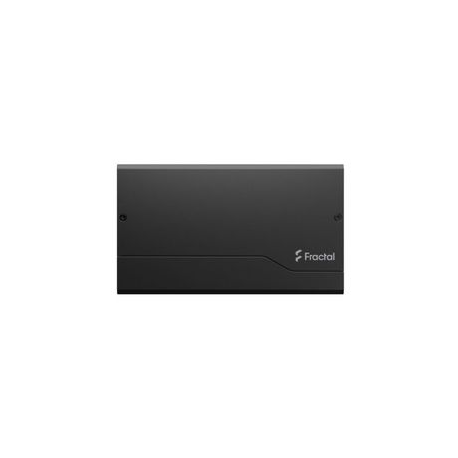

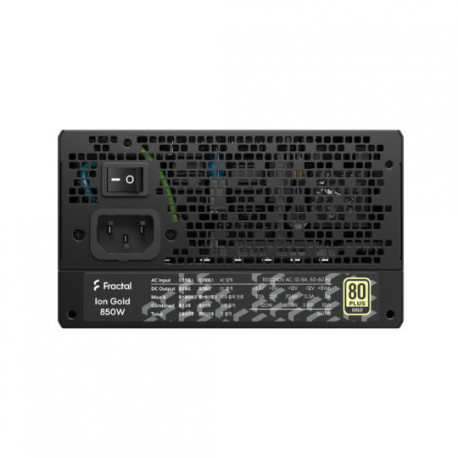

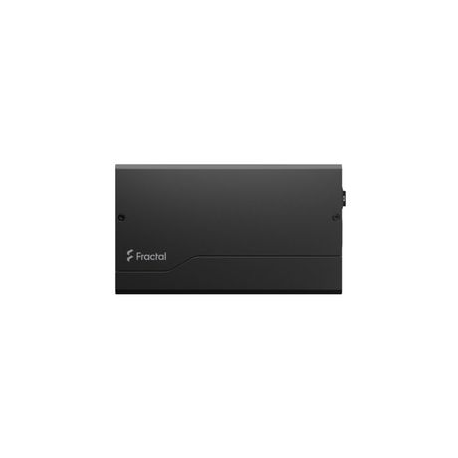

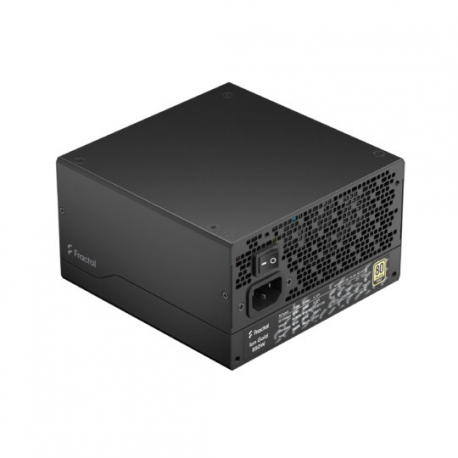

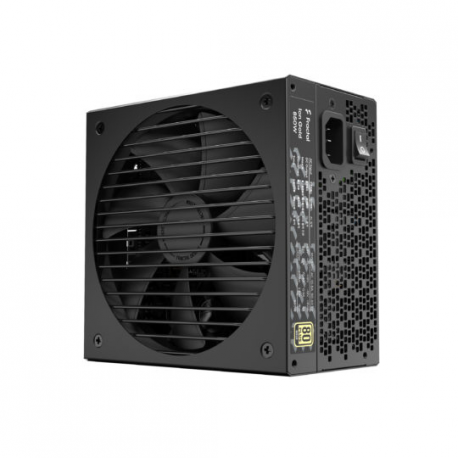

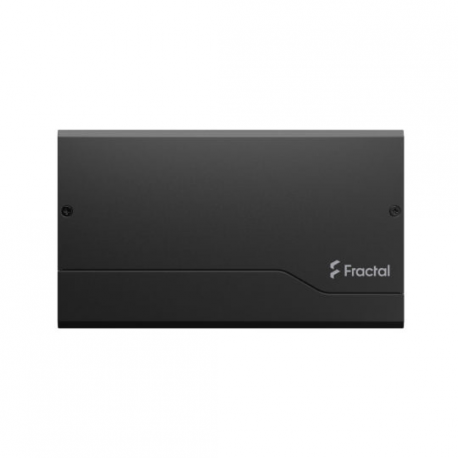

Fractal Design Ion Gold - Power supply (internal) - ATX12V 2.52 / EPS12V 2.92 - 80 PLUS Gold - AC 100-240 V - 850 Watt - Europe - black
images are for illustrative purposes only
New
Article: 1809231 Intrastat: 85044090 SKU: FD-P-IA2G-850-EU
Pricing and stock details are available to registered users only.
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V 2.52/ EPS12V 2.92 |
| PSU Form Factor | ATX |
| Colour | Black |
| Localisation | Europe |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |

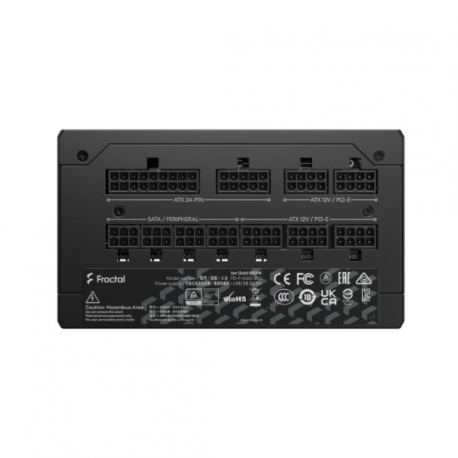

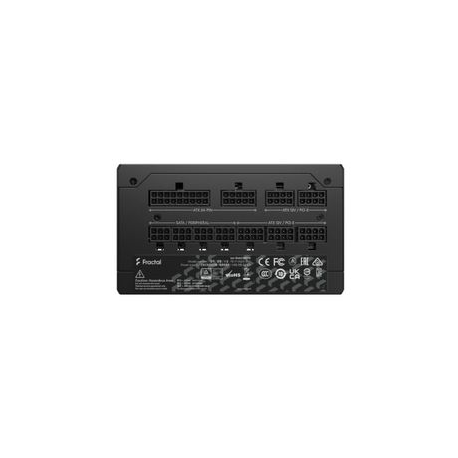

| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 850 Watt |
| Output Current | +3.3V - 22 A ¦ +5V - 22 A ¦ +12V - 70.8 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |

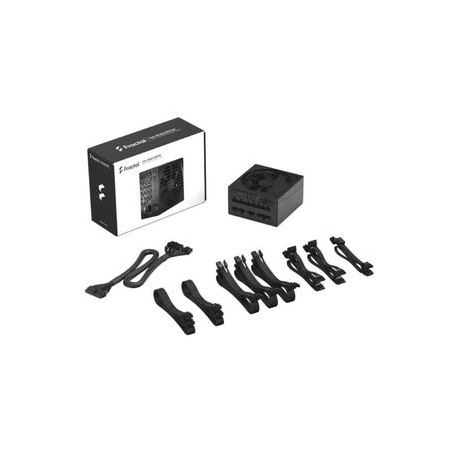

| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |

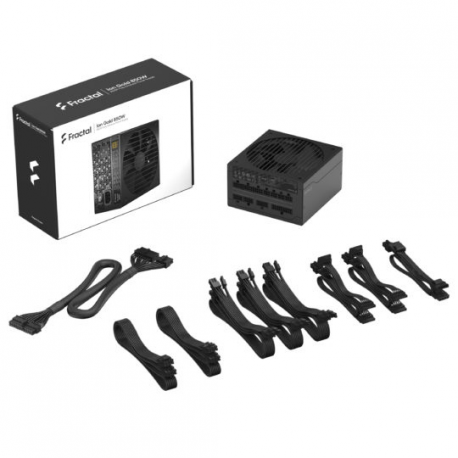

| Included Accessories | Screws, cable ties |
| MTBF | 100,000 hours |

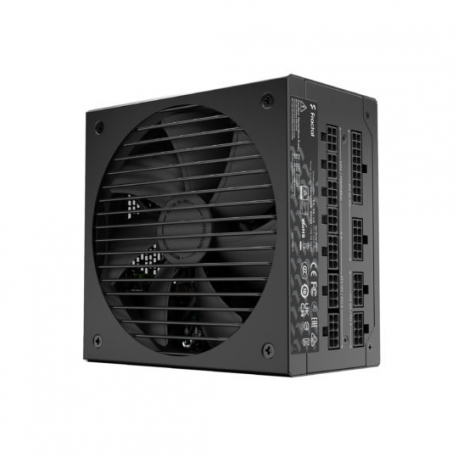

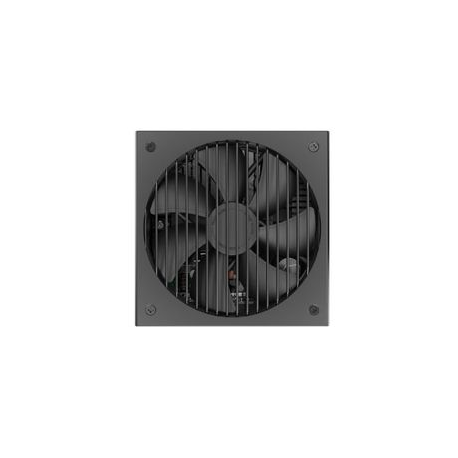

| Cooling System | 140 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, DC-DC technology, fully modular |
| Compliant Standards | TUV, BSMI, CB, CCC, FCC, RoHS, KCC, WEEE, cTUVus, EAC, ErP 2013, RCM |
| Service & Support | Limited warranty - 7 years |
| Max Operating Temperature | 50 °C |
| Width | 15 cm |
| Depth | 15 cm |
| Height | 8.6 cm |
| Weight | 2.41 kg |
| Shipping Width | 30 cm |
| Shipping Depth | 21 cm |
| Shipping Height | 11 cm |
| Shipping Weight | 2.81 kg |
