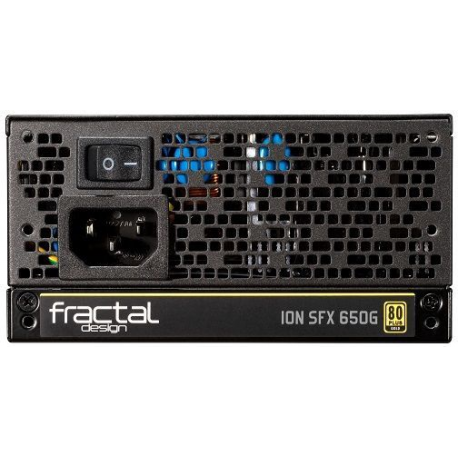

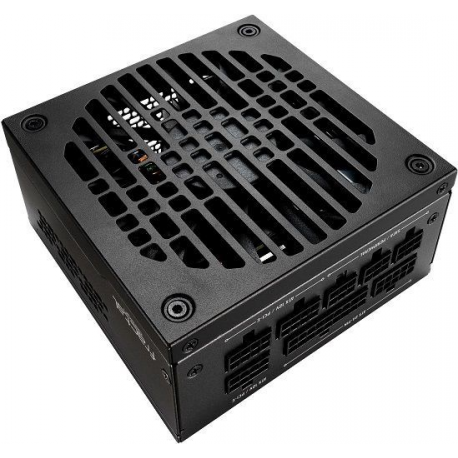

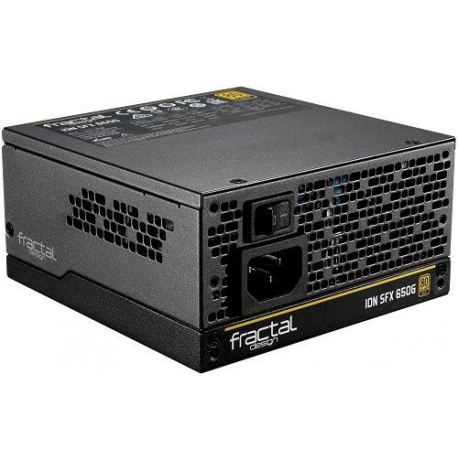

Fractal Design Ion SFX-L Gold 650G - Power supply (internal) - ATX12V / EPS12V / SFX12V - 80 PLUS Gold - AC 100-240 V - 650 Watt - Europe - black, gun metal
images are for illustrative purposes only
New
Article: 3038831 Intrastat: 85044090 SKU: FD-PSU-ION-SFX-650G-BK-EU
Pricing and stock details are available to registered users only.
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 8/4 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |

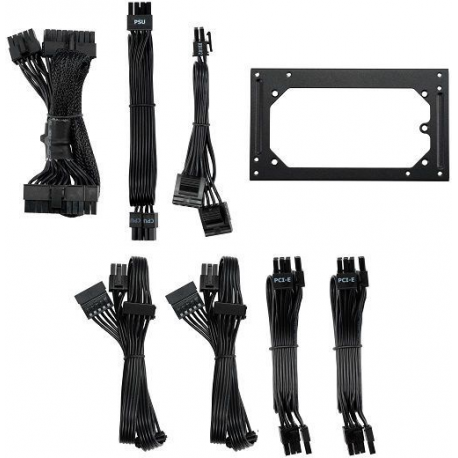

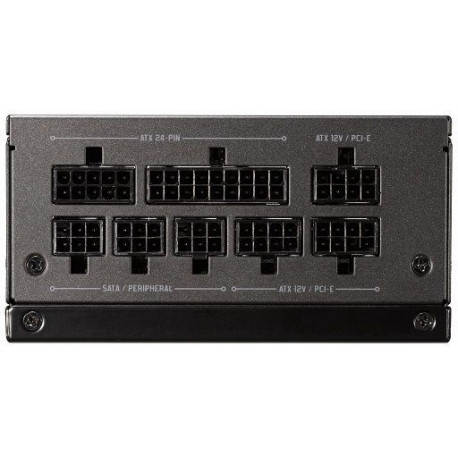

| Motherboard power connector | 24-pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Motherboard power cable length | 35 cm |
| Number of SATA power connectors | 8 |
| SATA power cable length | 100,200,300 mm |
| Peripheral (Molex) power cable length | 200,300 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power cable length | 50 cm |
| CPU power connector (4+4 pin) | Y |
| CPU power cable length | 40 cm |
| ATX Power connector (24-pin) | Y |
| Purpose | PC |
| Power supply unit (PSU) form factor | SFX |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |

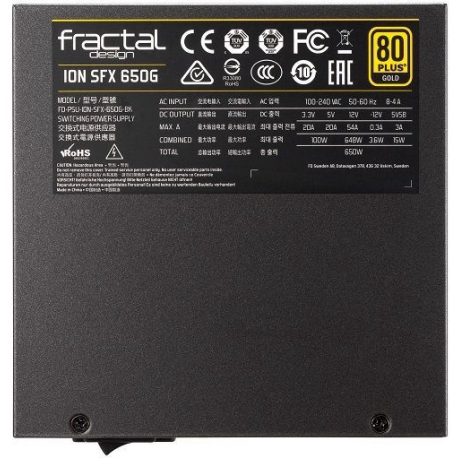

| Certification | CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE |
| Product colour | Black |
| Cooling type | Active |

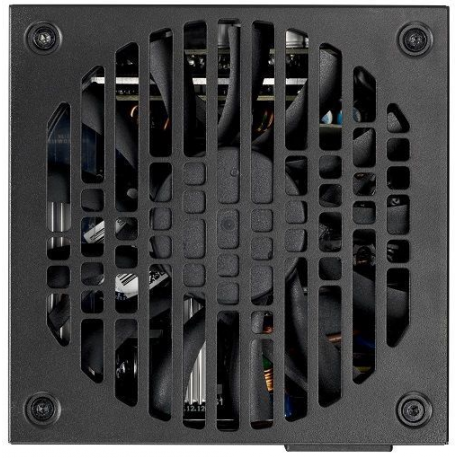

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |

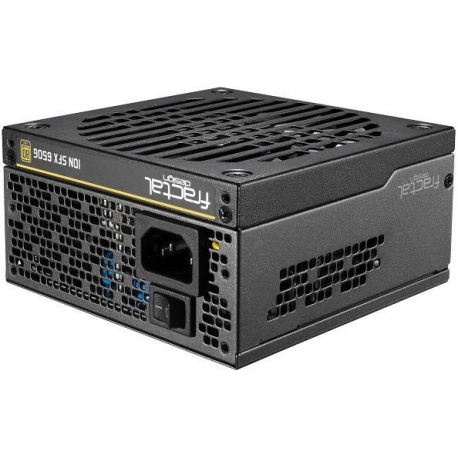

| On/off switch | Y |
| Cables included | AC |
| Width | 125 mm |
| Depth | 125 mm |
| Height | 63.5 mm |
| Weight | 1.15 kg |
| Manual | Y |
| Package width | 260 mm |
| Package depth | 170 mm |
| Package height | 95 mm |
| Package weight | 2.07 kg |
| Package type | Box |
| Sustainability certificates | RoHS |
| Screws included | Y |
| Cable ties included | Y |
| Harmonized System (HS) code | 84733020 |
