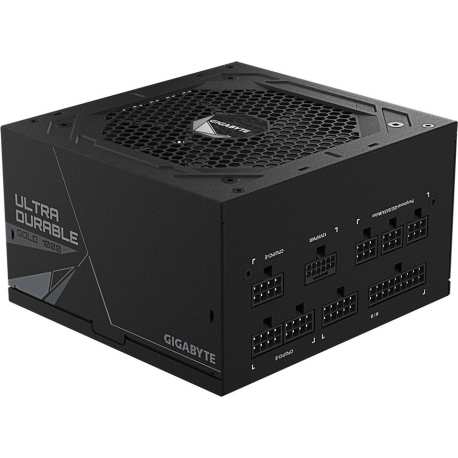

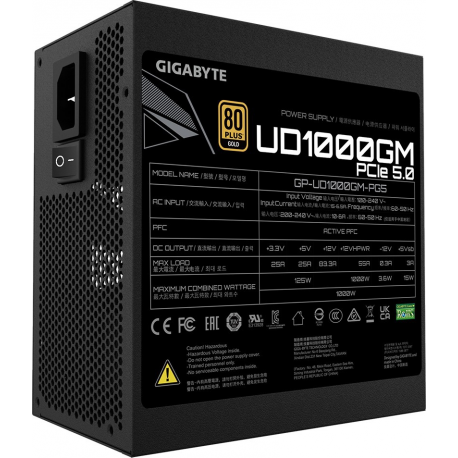

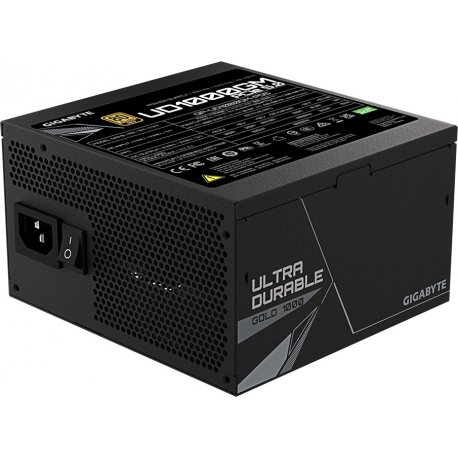

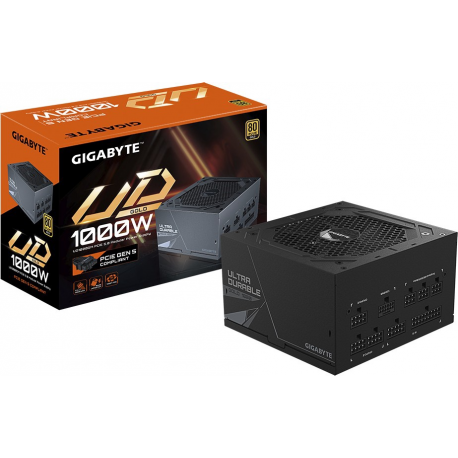

Gigabyte UD1000GM PG5 2.0 - Power supply (internal) - ATX12V 3.0 / EPS12V - 80 PLUS Gold - AC 100-240 V - 1000 Watt - active PFC
images are for illustrative purposes only
New
Article: 3042516 Intrastat: 85044090 SKU: GP-UD1000GM PG5 REV 2.0
Pricing and stock details are available to registered users only.
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 3.0/ EPS12V |
| PSU Form Factor | ATX |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |

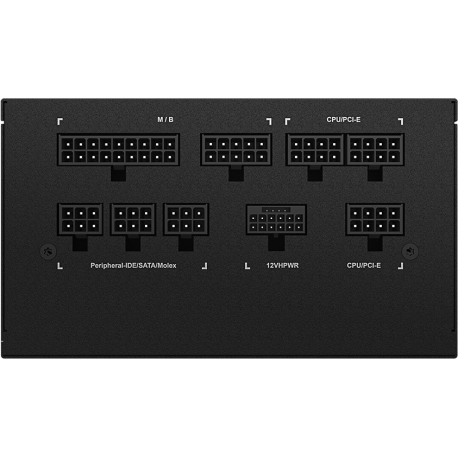

| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 1 x 16 pin PCI Express power ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector ¦ 3 x 4 PIN internal power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 1000 Watt |
| Output Current | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 83.3 A ¦ +12VHPWR - 55 A ¦ +5VSB - 3 A ¦ -12V - 0.3 A |
| Efficiency | 90% |
| Power Factor (PF) | 0.9 |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| MTBF | 100,000 hours |

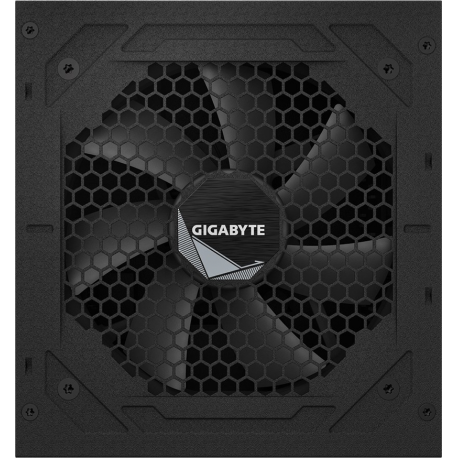

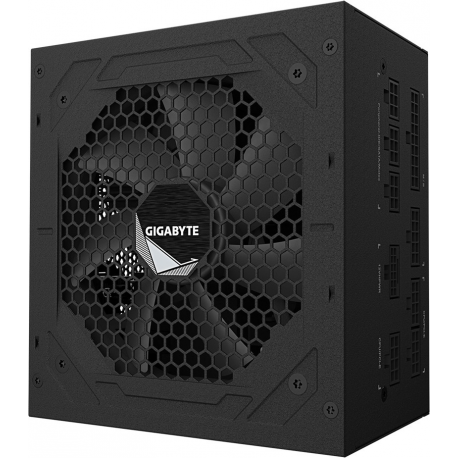

| Cooling System | 120 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, Zero RPM fan mode, hydraulic bearing cooling fan, fully modular |
| Compliant Standards | TUV, C-Tick, CCC, FCC, RoHS, EAC, UKCA |
| Service & Support | Limited warranty - 10 years |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
