MSI MPG A750GF - Power supply (internal) - ATX12V / EPS12V - 80 PLUS Gold - AC 100-240 V - 750 Watt - active PFC
images are for illustrative purposes only
New
Article: 1877190 Intrastat: 85044090 SKU: MPG A750GF
Pricing and stock details are available to registered users only.
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V / EPS12V |
| PSU Form Factor | ATX |
| Input Voltage | AC 100-240 V |
| Frequency Required | 47 - 63 Hz |

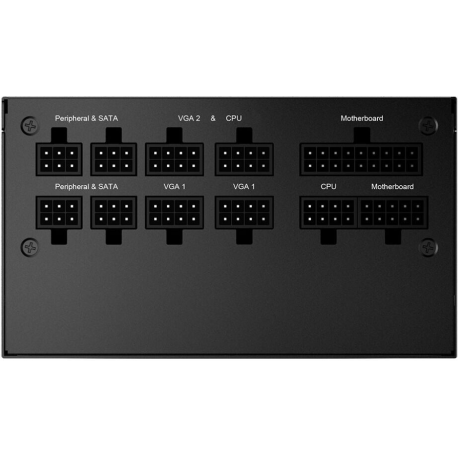

| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 8 x 15 pin Serial ATA power ¦ 5 x 4 PIN internal power ¦ 6 x 8 pin PCI Express power with detachable 2 pin section |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 750 Watt |
| Output Current | +3.3V - 22 A ¦ +5V - 22 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A ¦ +12VMBPH - 25 A ¦ +12VCPU - 25 A ¦ +12VVGA1 - 35 A ¦ +12VVGA2 - 35 A |
| Efficiency | 90% |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |

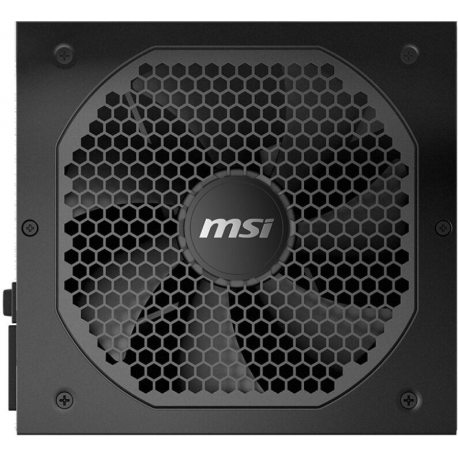

| Cooling System | 140 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, DC-DC technology, fully modular, LLC Half Bridge Topology |
| Service & Support | Limited warranty - 10 years |
| Width | 15 cm |
| Depth | 16 cm |
| Height | 8.6 cm |
