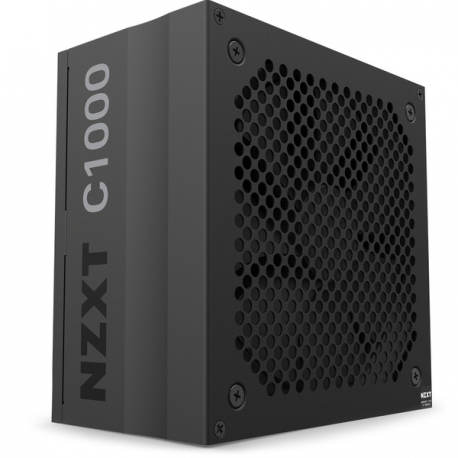

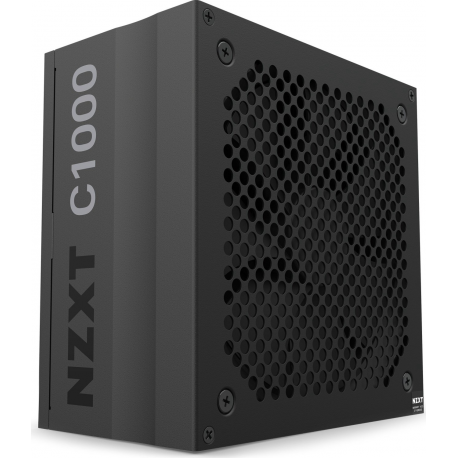

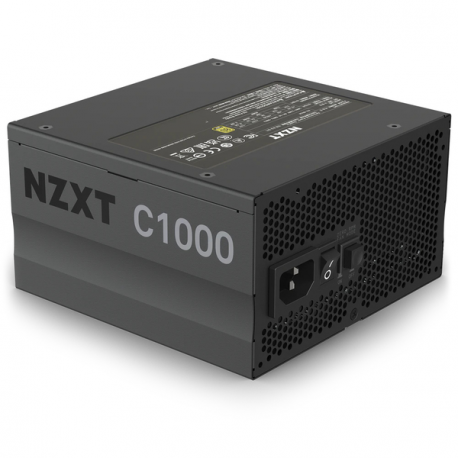

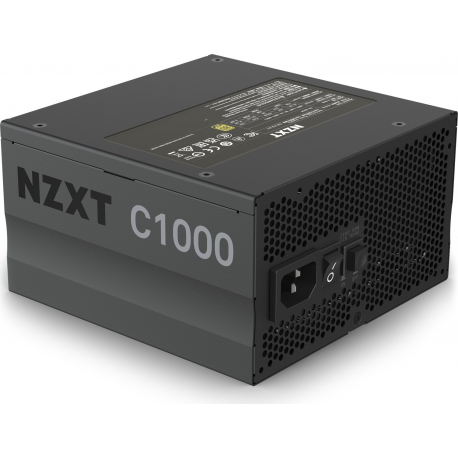

NZXT C-Series C1000 - Power supply (internal) - ATX12V 2.52 / EPS12V 2.92 - 80 PLUS Gold - AC 100-240 V - 1000 Watt - active PFC - Europe - matte black
images are for illustrative purposes only
New
Article: 3043051 Intrastat: 85044090 SKU: PA-0G1BB-EU
Pricing and stock details are available to registered users only.
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.52/ EPS12V 2.92 |
| PSU Form Factor | ATX |
| Colour | Matte black |
| Localisation | Europe |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |

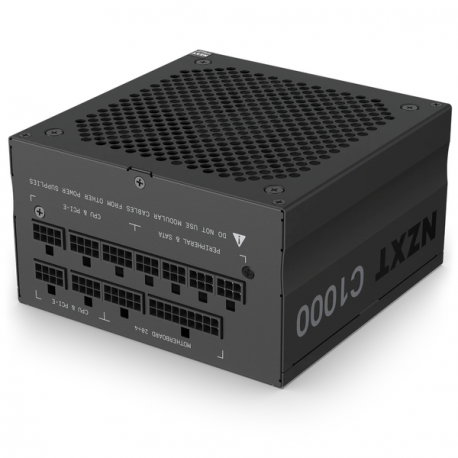

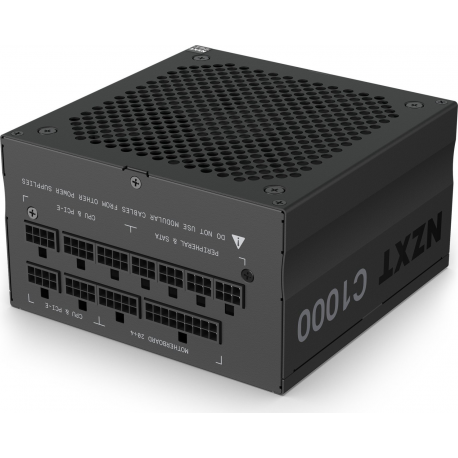

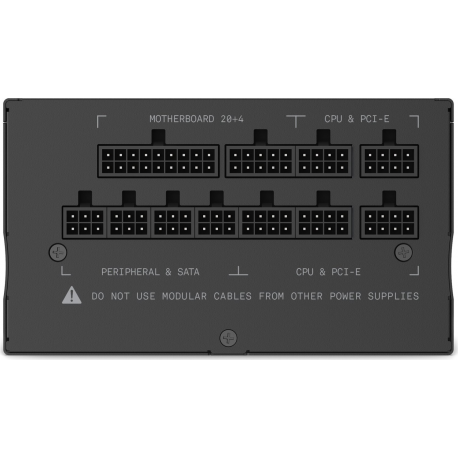

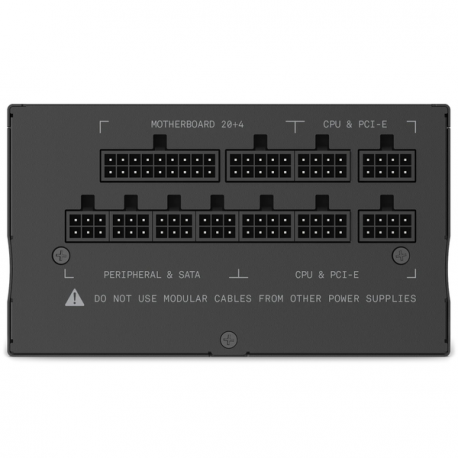

| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 3 x 8 pin PCI Express power with detachable 2 pin section ¦ 6 x 15 pin Serial ATA power ¦ 6 x 4 PIN internal power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 1000 Watt |
| Output Current | +3.3V - 22 A ¦ +5V - 22 A ¦ +12V - 83.5 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Efficiency | 88.52% at 100% Load (115 VAC), 91.97% at 20% Load (115 VAC), 91.79% at 50% Load (115 VAC) |
| Power Factor (PF) | 0.96 |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Included Accessories | Screws |
| Cables Included | Power cable kit |
| MTBF | 100,000 hours |

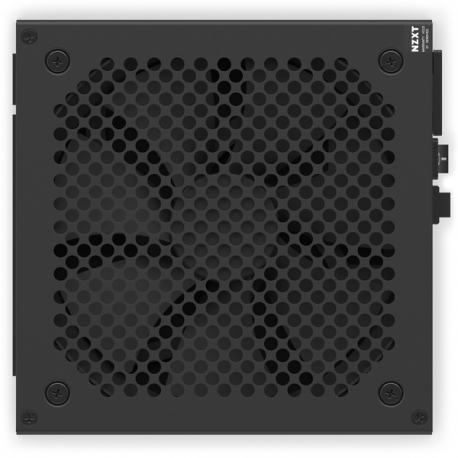

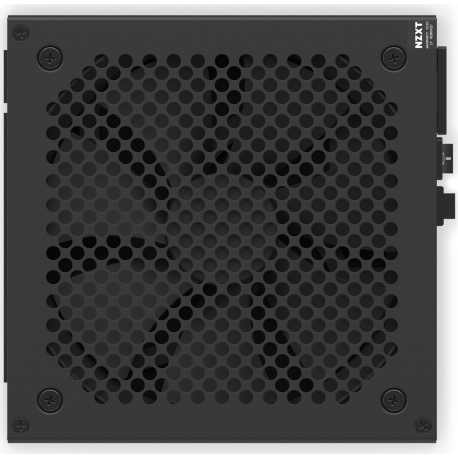

| Cooling System | 135 mm fan |
| Features | Zero RPM fan mode, fluid dynamic bearing cooling fan, fully modular |
| Compliant Standards | TUV, BSMI, cUL, EN 60950, UL 60950, CB, CCC, RoHS, CEC, LVD, EAC, China RoHS, RCM, EN 62368-1, IEC 62368-1, IEC 950, UL 62368-1, UKCA, cTUVus-SUDus |
| Service & Support | Limited warranty - 10 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Width | 15 cm |
| Depth | 15 cm |
| Height | 8.6 cm |
