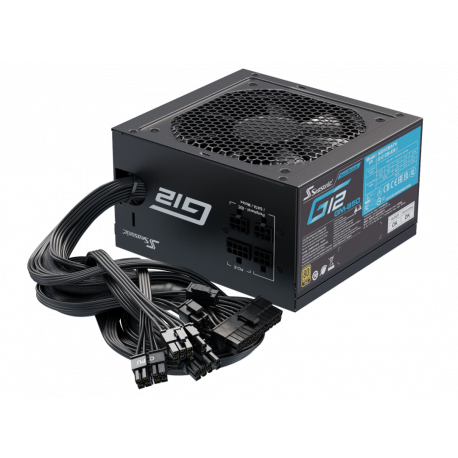

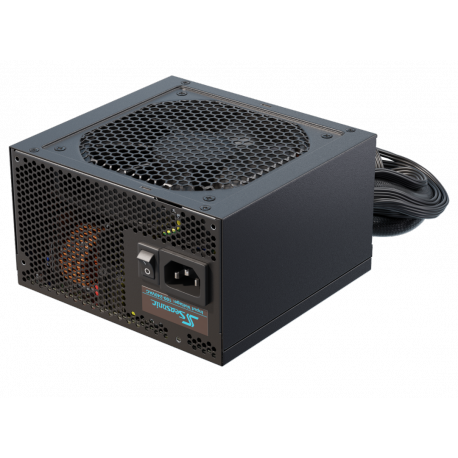

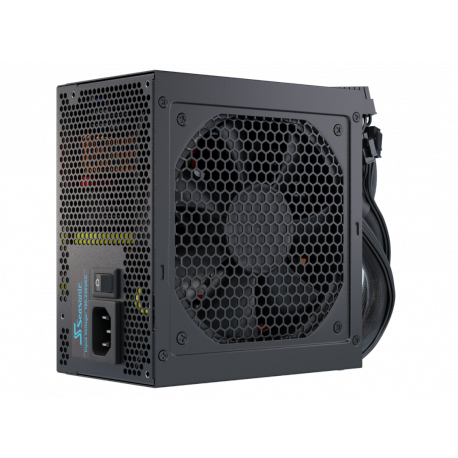

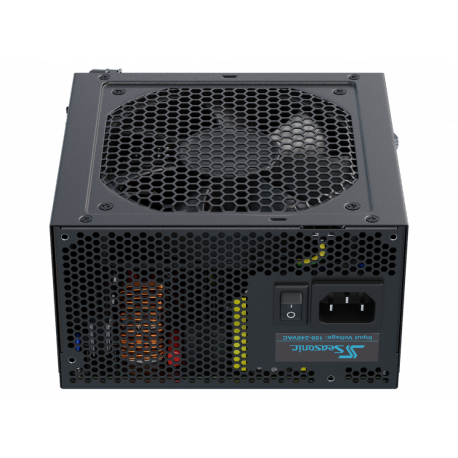

Seasonic FOCUS GM 850 - Power supply (internal) - ATX12V - 80 PLUS Gold - AC 100-240 V - 850 Watt
images are for illustrative purposes only
New
Article: 4172769 Intrastat: 85044090 SKU: SSR-850FM
Pricing and stock details are available to registered users only.
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V |
| PSU Form Factor | ATX |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 850 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 70 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Efficiency | 87% at 20% Load, 90% at 50% Load, 87% at 100% Load |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Included Accessories | Cable ties, cable bag |
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | On/off switch, overheat protection, gold-plated terminals, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, Multi-GPU Technologies Supported, DC-DC technology, fluid dynamic bearing cooling fan, semi-modular, Seasonic S2FC fan Control |
| Compliant Standards | TUV, BSMI, CB, CCC, RoHS, WEEE, cTUVus, Energy-Related Products (ErP) Lot 6, REACH, EAC |
| ENERGY STAR | Yes |
| Service & Support | Limited warranty - 7 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
