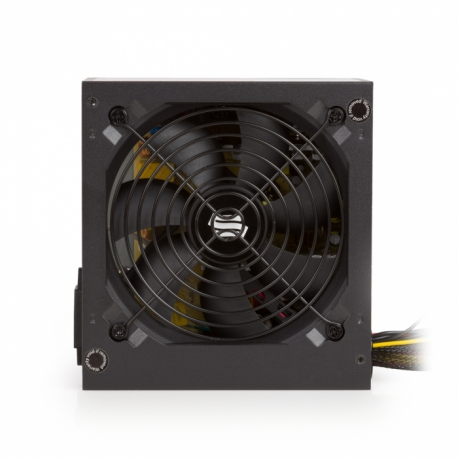

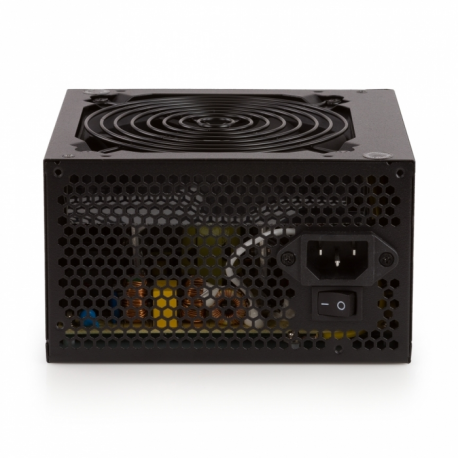

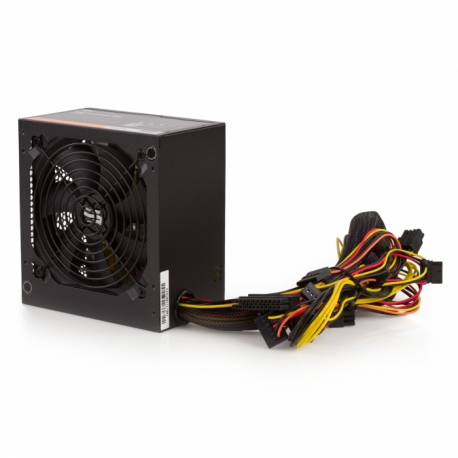

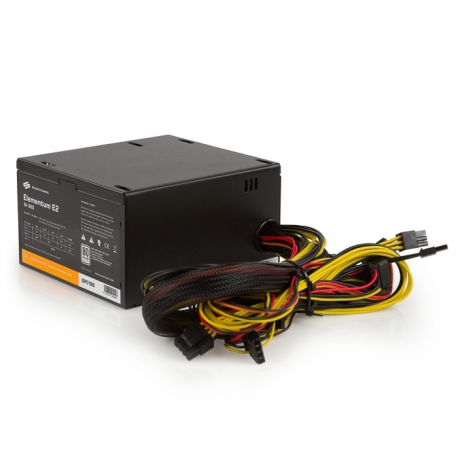

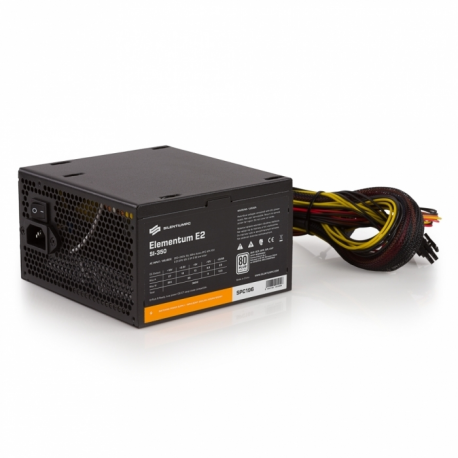

SilentiumPC Elementum E2 SI - Power supply (internal) - ATX12V 2.31 - 80 PLUS - AC 200-240 V - 350 Watt - active PFC - Europe
images are for illustrative purposes only
New
Article: 3040301 Intrastat: 85044090 SKU: SPC196
Pricing and stock details are available to registered users only.
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.31 |
| PSU Form Factor | ATX |
| Localisation | Europe |
| Input Voltage | AC 200-240 V |
| Frequency Required | 50 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section 1 x 8 pin PCI Express power with detachable 2 pin section 4 x 15 pin Serial ATA power 2 x 4 PIN internal power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 350 Watt |
| Output Current | +3.3V - 13 A +5V - 13 A +12V - 27 A -12V - 0.5 A +5VSB - 2.5 A |
| Efficiency | 82% at 20% Load, 85% at 50% Load, 85% at 100% Load |
| Power Factor (PF) | 0.99 |
| 80 PLUS Certification | 80 PLUS |
| Cables Included | Power cable 1.5 m |
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | Over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, surge & inrush protection, fan speed control |
| Compliant Standards | RoHS, Energy-Related Products (ErP) Lot 6 |
| ENERGY STAR | Yes |
| Service & Support | Limited warranty - 3 years |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
| Weight | 1.27 kg |
