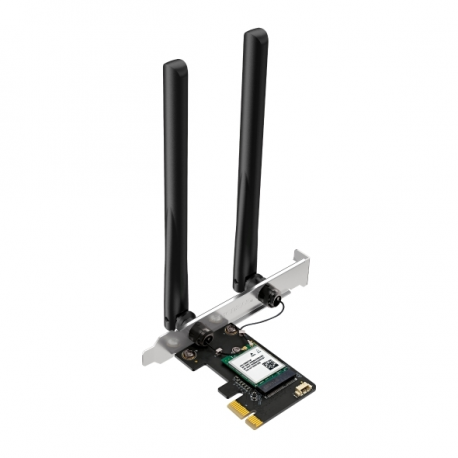

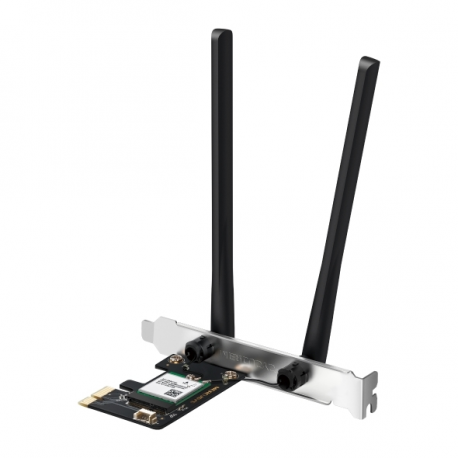

Mercusys MA70XE V1 - Network adapter - PCIe - Wi-Fi 5, Wi-Fi 6, Bluetooth
Mercusys MA70XE V1 - Network adapter - PCIe - Wi-Fi 5, Wi-Fi 6, Bluetooth
Manufacturer
•MERCUSYS
Reference
•MA70XE
Article
•4324471
Intrastat
•85176990
Total quantity in stocks
•30
Nearest delivery
•22.06.2026
Device Type
Network adapter
Form Factor
Plug-in card
Interface (Bus) Type
PCI Express
Connectivity Technology
Wireless
Data Link Protocol
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4
Wi-Fi Rating
AX1800
Spread Spectrum Method
OFDMA
Performance
Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1201 Mbps
Line Coding Format
1024 QAM, OFDMA
Frequency Band
2.4 GHz, 5 GHz
Features
MU-MIMO technology, infrastructure mode
Compliant Standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, Bluetooth 5.4
Antenna
External
Antenna Qty
2
Directivity
Omni-directional
Included Accessories
Bluetooth header cable, resource CD
Encryption Algorithm
WPA-PSK, WPA2-PSK, WPA3-SAE
Compliant Standards
FCC, RoHS
OS Required
Microsoft Windows 10 / 11
Width
2.15 cm
Depth
22.63 cm
Height
12.08 cm
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
