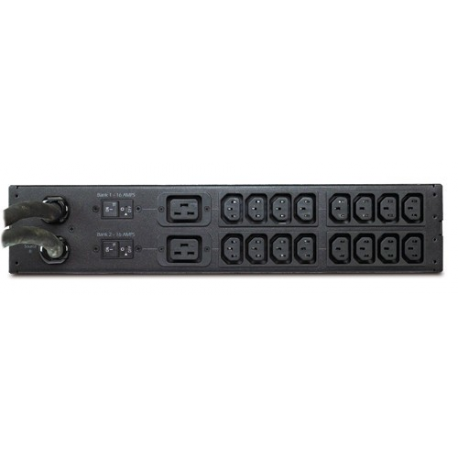

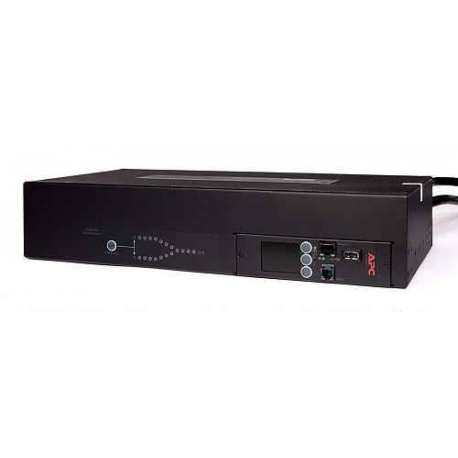

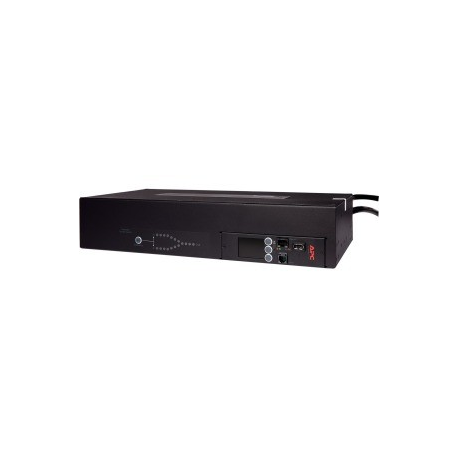

APC Rack Automatic Transfer Switch AP4424 - Redundant switch (rack-mountable) - AC 230 V - Ethernet 10 / 100, RS-232, USB - output connectors: 18 - 2U - black - for P / N: SMTL1000RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC
APC Rack Automatic Transfer Switch AP4424 - Redundant switch (rack-mountable) - AC 230 V - Ethernet 10 / 100, RS-232, USB - output connectors: 18 - 2U - black - for P / N: SMTL1000RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC
Manufacturer
•SCHNEIDER
Reference
•AP4424
Article
•1492730
Intrastat
•85176990
Shipping weight
•9.43 kg
Device Type
Redundant switch - rack-mountable
Height (Rack Units)
2U
Colour
Black
Input Voltage
AC 230 V
Input Voltage Margin
± 10%
Frequency Required
50/60 Hz
Input Connectors
2 x power IEC 60309 32A
Power Output Connectors Details
16 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
Output Voltage
AC 230 V
Max Electric Current
32 A
Circuit Protection
Circuit breaker
Remote Management Interface
Ethernet 10/100, RS-232, USB
Remote Management Protocol
SNMP, Telnet, HTTP, SSH
Interfaces
1 x management (RS-232) ¦ 1 x management (Ethernet) - RJ-45 ¦ 1 x USB - 4 pin USB Type A
Included Accessories
Rack mounting brackets
Cables Included
Serial cable - external ¦ 2 x power cable - integrated - 2.44 cm
Rack Mounting Kit
Included
Features
Current meter, LED indicators, overload protection, short-circuit protection
Compliant Standards
RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, EMC 2004/108/EC, LVD 2006/95/EC, EMC 2014/30/EU, LVD 2014/35/EU
Service & Support
Limited warranty - 2 years
Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 95% (non-condensing)
Width
43.2 cm
Depth
23.6 cm
Height
8.8 cm
Weight
6.94 kg
Shipping Width
58.4 cm
Shipping Depth
35.6 cm
Shipping Height
21 cm
Shipping Weight
9.43 kg
Designed For
P/N: ACDC2513, AP6453CH, AP7950B, AR106, AR106SH4, AR106SH6, AR109SH4, AR109SH6, AR112, AR112SH4, AR112SH6, AR2200, AR2280, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3003, AR3003SP, AR3006, AR3006SP, AR3100G, AR3100TAA, AR3100W, AR3103, AR3103SP, AR3105SP, AR3105W, AR3106, AR3106SP, AR3107G, AR3107SP, AR3140G, AR3140W, AR3150SP, AR3150W, AR3155SP, AR3155W, AR3157SP, AR3180G, AR3300G, AR3300SP, AR3300W, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3340G, AR3340W, AR3350SP, AR3350W, AR3355SP, AR3355W, AR3357SP, AR3357X674, AR4018IX429, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, NBES0302, NBPD0160A, NBPD0180, NBWL0355A, NBWL0356A, SCL400RMJ1U, SCL500RM1UC, SCL500RM1UNC, SCL500RMI1UC, SCL500RMI1UNC, SMC1000-BR, SMC1000I, SMC1000I-2U, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC15002U-BR, SMC1500-BR, SMC1500I, SMC1500I-2U, SMC1500I2U-BR, SMC1500I-2U
