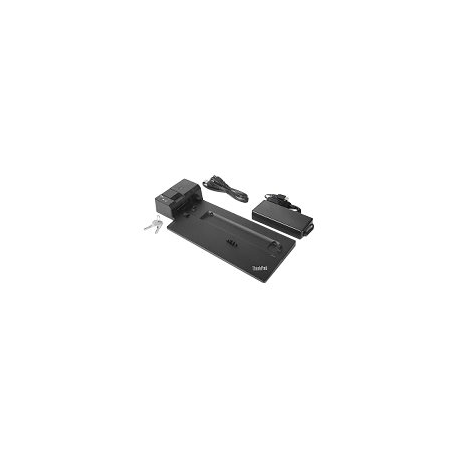

Lenovo ThinkPad Ultra Docking Station - VGA, HDMI, 2 x DP - 135 Watt - pro ThinkPad L14 Gen 1; L15 Gen 1; P14s Gen 1; P15s Gen 1; X1 Carbon Gen 8; X13 Gen 1
images are for illustrative purposes only
New
Article: 1522240 Intrastat: 85437090 SKU: 40AJ0135EU
Pricing and stock details are available to registered users only.
| Product Type | Docking station |
| Width | 37.8 cm |
| Depth | 15.9 cm |
| Height | 5.41 cm |
| Weight | 810 g |
| Localisation | Korea, Europe |
| Max Resolution Details | 4096 x 2160 - 60 Hz (DisplayPort only) ¦ 4096 x 2160 - 60 Hz (HDMI only) ¦ 2048 x 1536 - 85 Hz (VGA only) ¦ 4096 x 2160@30Hz, 4096 x 2160@30Hz (DisplayPort and HDMI simultaneously) ¦ 4096 x 2160@30Hz, 4096 x 2160@30Hz (DisplayPort1 and DisplayPort2 simultaneously) ¦ 4096 x 2160@60Hz, 2048 x 1536@85Hz (DisplayPort and VGA simultaneously) ¦ 4096 x 2160@60Hz, 2048 x 1536@85Hz (HDMI and VGA simultaneously) ¦ 4096 x 2160@60Hz, 1920 x 1080@60Hz, 1920 x 1080@60Hz (DisplayPort1 and DisplayPort2 and HDMI simultaneously) ¦ 4096 x 2160@30Hz, 4096 x 2160@30Hz, 2048 x 1536@85Hz (DisplayPort and HDMI and VGA simultaneously) |
| Interfaces | 1 x USB 3.1 Gen 2 with Always-on charging ¦ 3 x USB 3.1 Gen 2 ¦ 2 x USB-C ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x audio / video - DisplayPort - 20 pin DisplayPort ¦ 1 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) ¦ 1 x audio - headphones/microphone - mini-phone stereo 3.5 mm ¦ 1 x docking / port replicator |
| Included Accessories | 2 x security keys |
| Features | Security lock slot (cable lock sold separately), wake on LAN, Preboot Execution Environment (PXE) support, MAC address pass-through |
| Compliant Standards | UL, cUL, NOM, FCC, ICES |
| Power Device | Power adapter |
| Power Provided | 135 Watt |
| Service & Support | Limited warranty - 3 years |
| Shipping Width | 42.2 cm |
| Shipping Depth | 20 cm |
| Shipping Height | 8.6 cm |
| Shipping Weight | 2 kg |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
| Designed For | The dock is only compatible with qualified LAN enabled laptops (please check the LAN port on your machine): ¦ Lenovo ThinkPad A285 20MW, 20MX ¦ Lenovo ThinkPad A485 20MU, 20MV ¦ Lenovo ThinkPad L13 20R3, 20R4 ¦ Lenovo ThinkPad L13 Gen 2 20VH, 20VJ, 21AB, 21AC ¦ Lenovo ThinkPad L13 Yoga 20R5, 20R6 ¦ Lenovo ThinkPad L13 Yoga Gen 2 20VK, 20VL, 21AD, 21AE ¦ Lenovo ThinkPad L14 Gen 1 20U1, 20U2, 20U5, 20U6 ¦ Lenovo ThinkPad L14 Gen 2 20X1, 20X2 ¦ Lenovo ThinkPad L15 Gen 1 20U3, 20U4, 20U7, 20U8 ¦ Lenovo ThinkPad L15 Gen 2 20X3, 20X4 ¦ Lenovo ThinkPad L490 20Q5, 20Q6 ¦ Lenovo ThinkPad L590 20Q7, 20Q8 ¦ Lenovo ThinkPad P14s Gen 1 20S4, 20S5, 20Y1, 20Y2 ¦ Lenovo ThinkPad P14s Gen 2 20VX, 20VY, 21A0, 21A1 ¦ Lenovo ThinkPad P15s Gen 2 20W6, 20W7 ¦ Lenovo ThinkPad P43s 20RH, 20RJ ¦ Lenovo ThinkPad P52s 20LC ¦ Lenovo ThinkPad P53s 20N6, 20N7 ¦ Lenovo ThinkPad T14 Gen 1 20S0, 20S1, 20S2, 20S3, 20UD, 20UE ¦ Lenovo ThinkPad T14 Gen 2 20W0, 20W1, 20XK, 20XL ¦ Lenovo ThinkPad T14s Gen 1 20T0, 20T1, 20UH, 2 |
