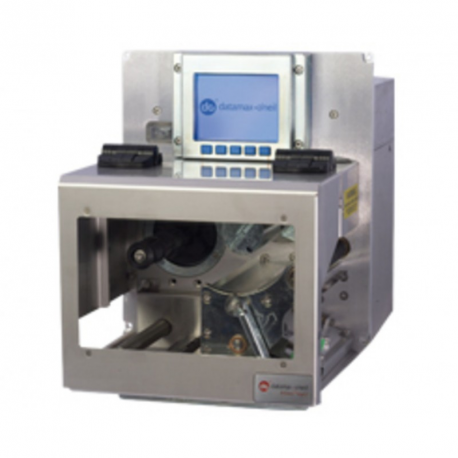

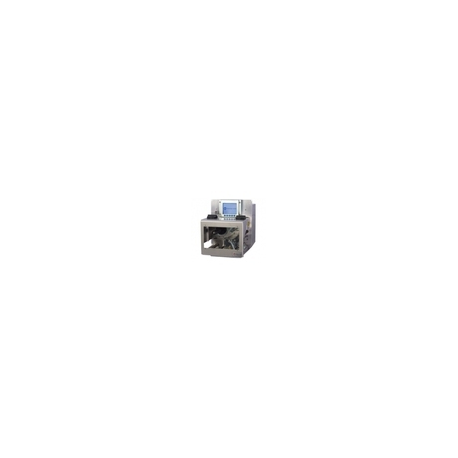

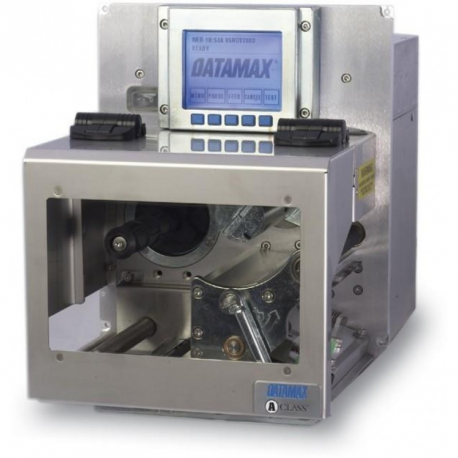

Datamax A-Class Mark II A-4310 - Label printer - direct thermal / thermal transfer - Roll (11.8 cm) - 300 dpi - up to 254 mm / sec - parallel, USB, LAN, serial
images are for illustrative purposes only
New
Article: 467170 Intrastat: 84433210 SKU: LA3-00-46000000
Pricing and stock details are available to registered users only.
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
| Localisation | United Kingdom, Europe |
| Print Speed | Up to 254 mm/sec - max speed - 300 dpi |
| Connectivity Technology | Wired |
| Interface | Parallel, USB, LAN, serial |
| Max Resolution (B&W) | 300 dpi |
| Language Simulation | ZPL, Intermec Printer Language (IPL), ILPC (International Language Printing Capability) |
| Fonts | CG Times, CG Triumvirate, OCR |
| Features | Realtime clock |
| Keyboard | 5 keys |
| Barcodes | Code 93, UCC/EAN-128, GS1 DataBar, QR code, MaxiCode, Aztec code, Telepen, HIBCC, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 3 of 9, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, TLC39, Plessey |
| Printer Features | Right-hand orientation |
| RAM Installed (Max) | 16 MB |
| Flash Memory | 8 MB |
| Media Type | Labels, continuous forms, fanfold paper, tag stock |
| Max Media Size | Roll (11.8 cm) |
| Min Media Size (Custom) | 25.4 mm |
| Max Media Size (Custom) | 118 mm |
| Media Sizes | Roll (11.8 cm) |
| Max Printing Width | 105.7 mm |
| Max Printing Length | 2500 mm |
| Media Thickness Range | 0.06 mm - 0.25 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.8 cm) |
| Networking | Print server |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Connections | 1 x parallel - 36 PIN Centronics ¦ 1 x RS-232/422/485 - 9 pin D-Sub (DB-9) ¦ 1 x LAN - RJ-45 ¦ 1 x USB - 4 pin USB Type B ¦ 2 x RS-232 |
| Compliant Standards | FCC Class A certified, UL, cUL, GS, EN55024, EN55022 Class B, CCC, UL 60950-1, IEC 60950-1, CSA C22.2 No. 60950-1-03 |
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 200 Watt |
| Power Consumption Stand by / Sleep | 25 Watt |
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows NT, Microsoft Windows Vista / XP |
| Service & Support | Limited warranty - parts and labour - 1 year ¦ Limited warranty - printhead - 1 year or 1,000,000 inches |
| Min Operating Temperature | 4 °C |
| Max Operating Temperature | 38 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Width | 24.6 cm |
| Depth | 39 cm |
| Height | 30 cm |
| Weight | 15.3 kg |
