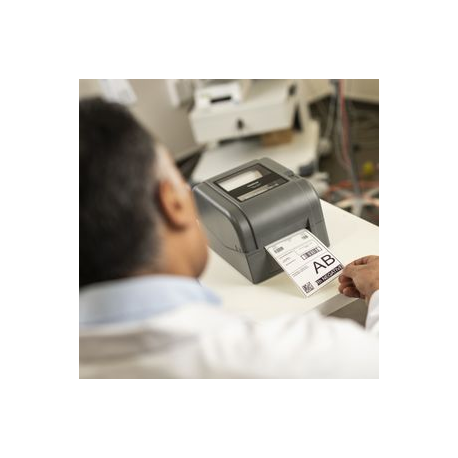

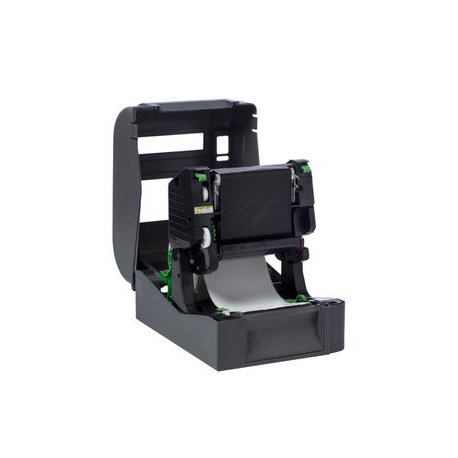

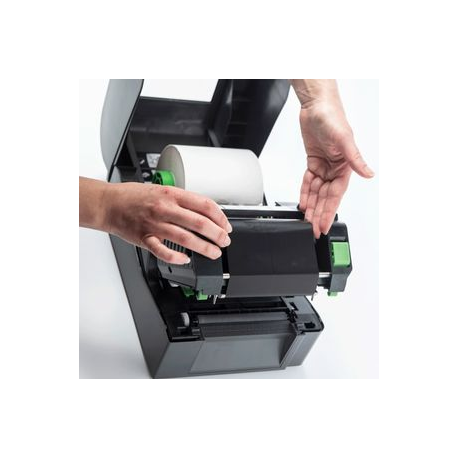

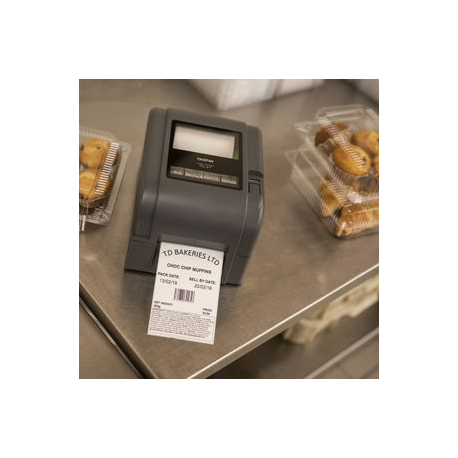

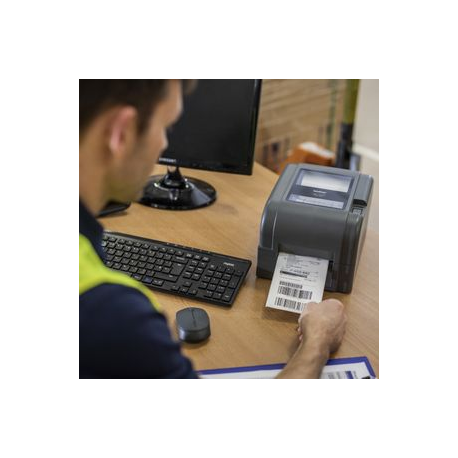

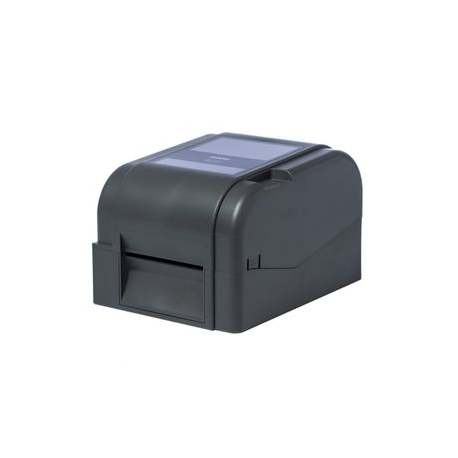

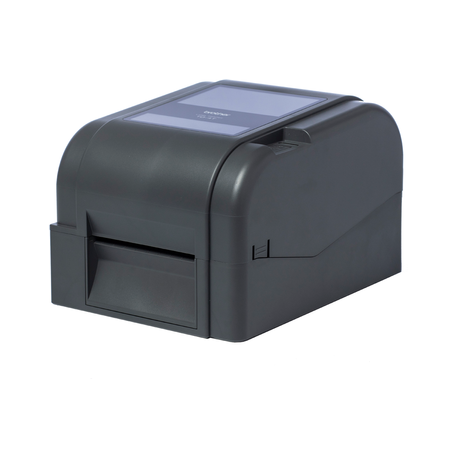

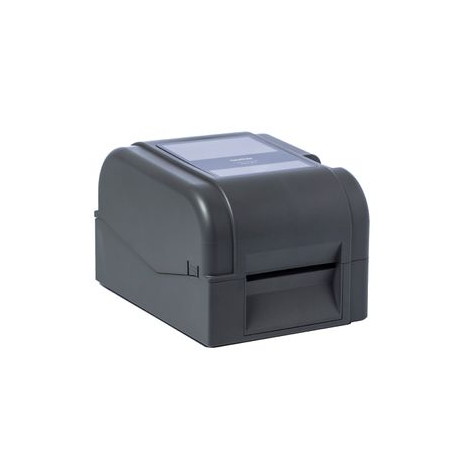

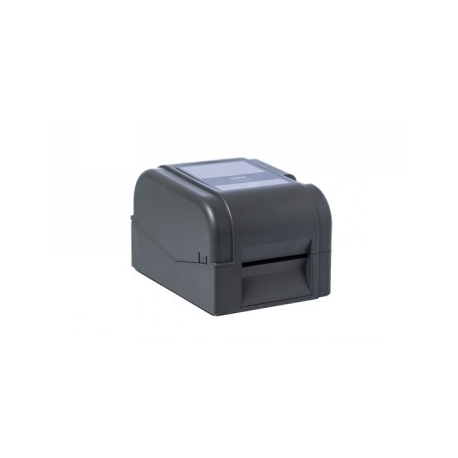

Brother TD-4420TN - Label printer - direct thermal / thermal transfer - Roll (11 cm) - 203 dpi - up to 152.4 mm / sec - USB 2.0, LAN, USB host, RS232C
images are for illustrative purposes only
New
Article: 1674747 Intrastat: 84433210 SKU: TD4420TNZ1
Pricing and stock details are available to registered users only.
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
| Print Speed | Up to 152 mm/sec |
| Connectivity Technology | Wired |
| Interface | USB 2.0, LAN, USB host, RS232C |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | ZPL, ZPL II, EPL, DPL, SBPL |
| Features | Gap sensor, transmissive media sensor, label detection sensor |
| Barcodes | Code 93, Code 39, Code 49, GS1 DataBar, QR code, MaxiCode, Aztec code, Telepen, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, China Post, Plessey, Code 128B, Code 128C, German Post, Code 128A, ITF-14, EAN-128, MSI |
| RAM Installed (Max) | 64 MB |
| Flash Memory | 128 MB |
| Media Type | Fanfold paper, continuous labels, die cut labels |
| Max Media Size | Roll (11 cm) |
| Min Media Size (Custom) | 20 mm |
| Max Media Size (Custom) | 112 mm |
| Media Sizes | Roll (4cm), Roll (11 cm) |
| Max Printing Width | 108 mm |
| Max Printing Length | 25400 mm |
| Media Thickness Range | 0.06 mm - 0.19 mm |
| Roll Maximum Outer Diameter | 127 mm |
| Roll Core Diameter | 25.4 mm, 38 mm |
| Networking | Print server |
| Security Protocols & Features | ARP, MAC address filtering |
| Connections | 1 x RS-232C - 9 pin D-Sub (DB-9) ¦ 1 x USB 2.0 ¦ 1 x USB host ¦ 1 x LAN |
| Cables Included | 1 x USB cable |
| Power Device | Power adapter - external |
| Voltage Required | AC 120/230 V |
| Frequency Required | 50/60 Hz |
| Software Included | Drivers & Utilities |
| OS Required | Linux, Microsoft Windows 7, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Windows 8, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Windows 8.1, Windows 10, Microsoft Windows Server 2016 |
| Service & Support | Limited warranty - 2 years - pick-up and return |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 25 - 85% |
| Width | 28 cm |
| Depth | 20.4 cm |
| Height | 17.75 cm |
| Weight | 2.5 kg |
