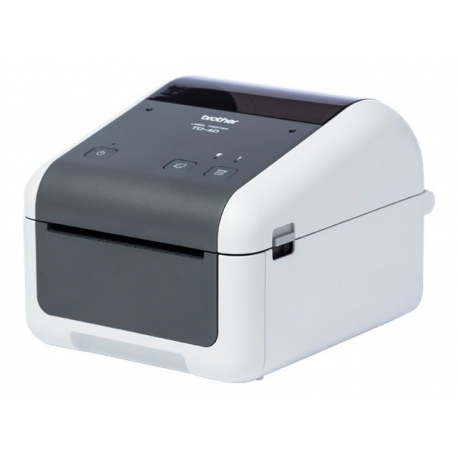

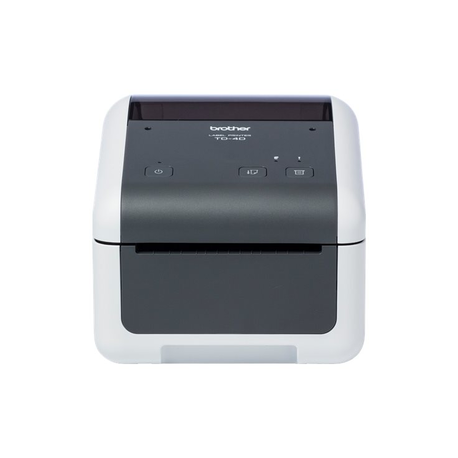

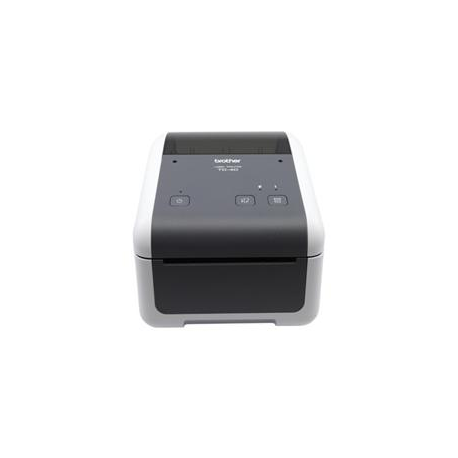

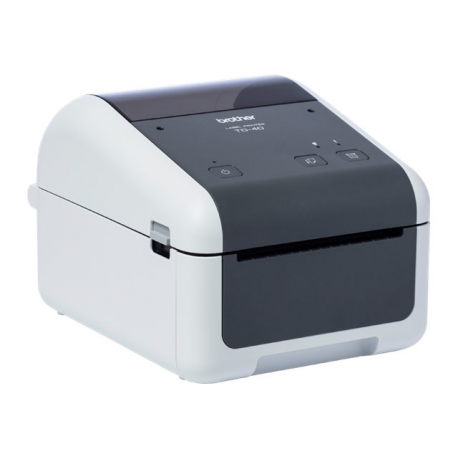

Brother TD-4520DN - Label printer - direct thermal - Roll (11.8 cm) - 300 x 300 dpi - up to 152 mm / sec - USB 2.0, LAN, serial - grey, white
images are for illustrative purposes only
New
Article: 1662322 Intrastat: 84433210 SKU: TD4520DNXX1
Pricing and stock details are available to registered users only.
| Printer Type | Label printer - direct thermal - monochrome |
| Enclosure Colour | Grey, white |
| Print Speed | Up to 152 mm/sec |
| Connectivity Technology | Wired |
| Interface | USB 2.0, LAN, serial |
| Max Resolution (B&W) | 300 x 300 dpi |
| Language Simulation | EPSON ESC/P, ZPL II, EPSON ESC/P Raster, Comtec Printer Control Language (CPCL) |
| Fonts | Brussels, Helsinki, Letter Gothic Bold, Gothic, Brougham |
| Features | Transmissive media sensor, reflective media sensor, open cover sensor, mirror print |
| Barcodes | Code 93, Industrial 2 of 5, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Postnet, PDF417, MSI-Plessey, Data Matrix, ITF, Micro QR code, GS1-128, RSS |
| Printer Features | Drop-in paper loading, real time clock |
| RAM Installed (Max) | 256 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | 64 MB |
| Media Type | Receipt paper, fanfold paper, continuous labels, die cut labels, tags, wristbands |
| Compatible Tapes | RD tape |
| Max Media Size | Roll (11.8 cm) |
| Min Media Size (Custom) | 19 mm x 6.4 mm |
| Max Media Size (Custom) | 118 mm x 3000 mm |
| Media Sizes | Roll (1.9 cm), Roll (11.8 cm) |
| Max Printing Width | 108 mm |
| Media Thickness Range | 0.058 mm - 0.279 mm |
| Roll Maximum Outer Diameter | 127 mm |
| Roll Core Diameter | 12.7 mm |
| Networking | Print server |
| Security Protocols & Features | 802.1x, EAP-TTLS, EAP-TLS, PEAP, EAP-FAST, EAP-MD5 |
| Connections | 1 x RS-232C ¦ 1 x USB 2.0 ¦ 1 x LAN - RJ-45 |
| Cables Included | 1 x USB cable |
| Software Included | Brother P-touch Editor |
| OS Required | Microsoft Windows 7, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Windows 8, Microsoft Windows Server 2012, Android 4.0.3 or later, Microsoft Windows Server 2012 R2, Windows 10, Apple iOS 8 or later, Microsoft Windows Server 2016 |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 85% (non-condensing) |
| Width | 10.8 cm |
| Depth | 22.4 cm |
| Height | 15.5 cm |
| Weight | 2.08 kg |
