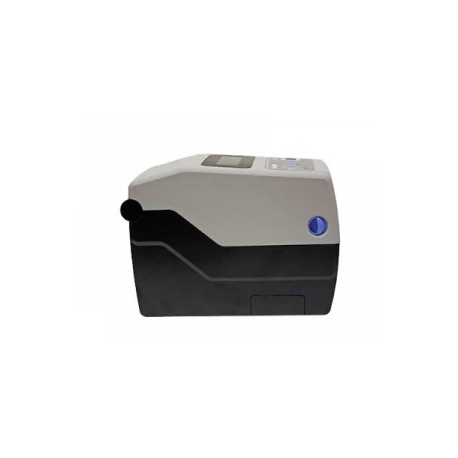

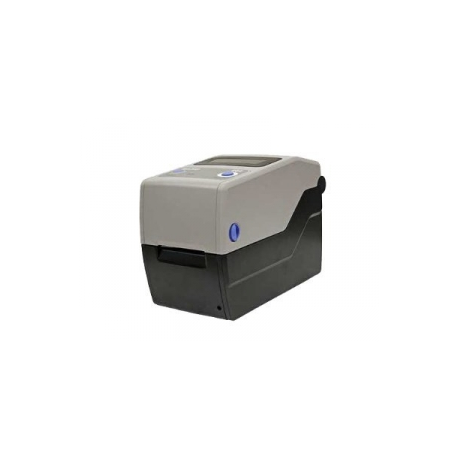

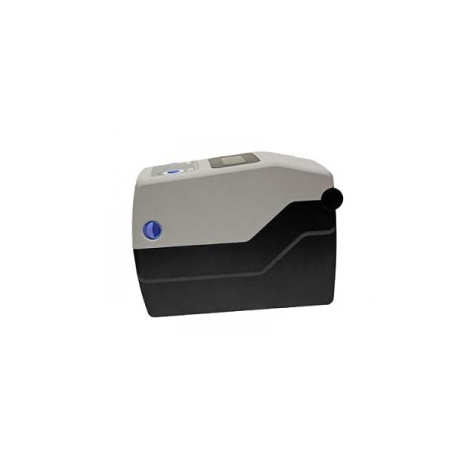

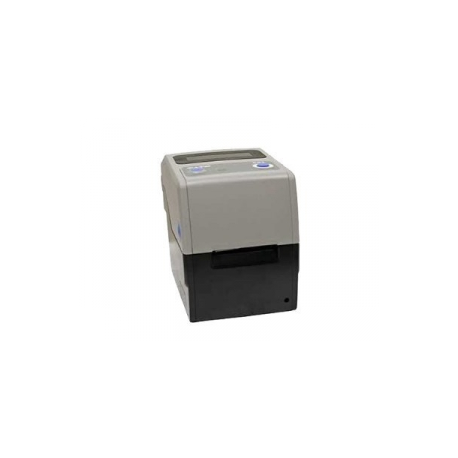

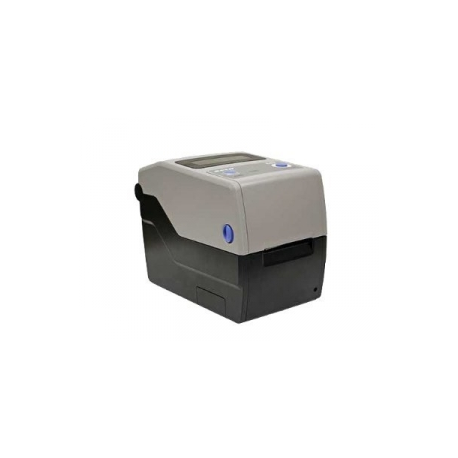

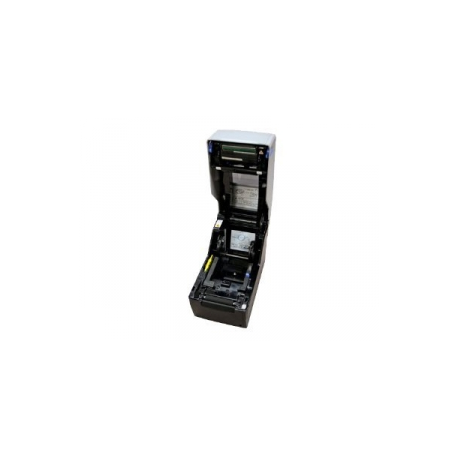

SATO CG208 - Label printer - direct thermal / thermal transfer - Roll (6 cm) - 203 dpi - up to 100 mm / sec - USB, serial
images are for illustrative purposes only
New
Article: 1303727 Intrastat: 84433210 SKU: WWCG20032
Pricing and stock details are available to registered users only.
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
| Print Speed | Up to 100 mm/sec - max speed |
| Connectivity Technology | Wired |
| Interface | USB, serial |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | SBPL 4.2 |
| Fonts | CG Times, CG Triumvirate, OCR-A, OCR-B |
| Styles & Effects | Rotated text |
| Fonts Included | 1 x bitmapped ¦ 1 x barcode |
| Barcodes | Code 39, UCC/EAN-128, GS1 DataBar, QR code, MaxiCode, Bookland, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, Codabar, Code 128, Interleaved 2 of 5, PDF417, Data Matrix |
| Printer Features | Antimicrobial casing |
| RAM Installed (Max) | 8 MB |
| Flash Memory | 4 MB |
| Media Type | Continuous paper labels, die cut labels |
| Max Media Size | Roll (6 cm) |
| Min Media Size (Custom) | 12 mm x 6 mm |
| Max Media Size (Custom) | 60 mm |
| Media Sizes | Roll (6 cm) |
| Max Printing Width | 56 mm |
| Max Printing Length | 600 mm |
| Media Thickness Range | 0.06 mm - 0.19 mm |
| Roll Maximum Outer Diameter | 130 mm |
| Roll Core Diameter | 25.4 mm, 38.1 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (6 cm) |

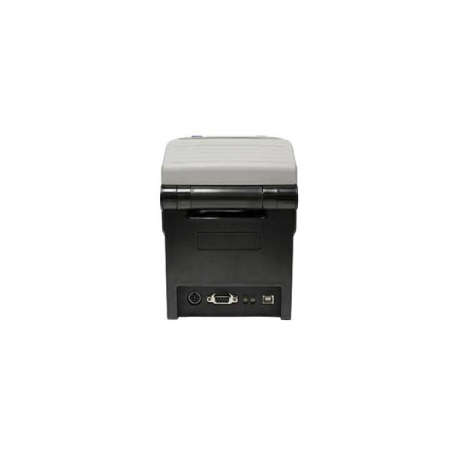

| Connections | 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB - 4 pin USB Type B |
| Features | Paper sensor |
| Compliant Standards | CSA, UL, CCC, FCC, RoHS |
| Power Device | Power adapter - external |
| Voltage Required | AC 120/230 V |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 40 Watt |
| ENERGY STAR | Yes |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 30 - 80% (non-condensing) |
| Width | 12.8 cm |
| Depth | 23.5 cm |
| Height | 17.3 cm |
| Weight | 1.6 kg |
