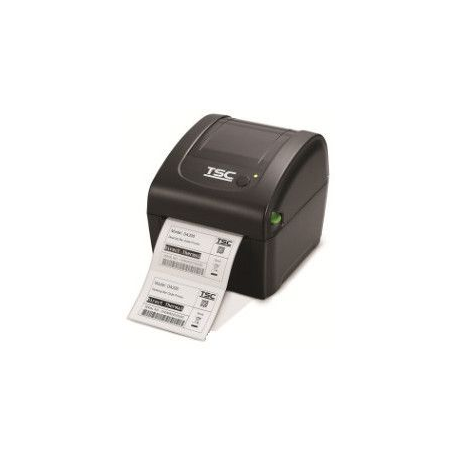

TSC DA200 - Label printer - direct thermal - Roll (11.4 cm) - 203 dpi - up to 152 mm / sec - USB 2.0, LAN
images are for illustrative purposes only
New
Article: 1785500 Intrastat: 84433210 SKU: 99-158A015-2102
Pricing and stock details are available to registered users only.
Label printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 108 mm, roll diameter (max.): 127mm, speed (max.): 152 mm/s, USB, Ethernet, emulation: EPL, ZPL, ZPLII, DPL, RAM: 128 MB, Flash: 64 MB, real time clock, incl.: cable (USB), power supply unit, power cable (EU), label design software
| Printer Type | Label printer - direct thermal - monochrome |
| Localisation | Europe |
| Print Speed | Up to 152 mm/sec - max speed |
| Connectivity Technology | Wired |
| Interface | USB 2.0, LAN |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | TSPL-EZD |
| Fonts | CG Triumvirate Bold Condensed |
| Styles & Effects | Rotated text |
| Features | Realtime clock, open head sensor, transmissive/gap sensor, reflective/black mark sensor |
| Fonts Included | 8 x bitmapped ¦ 1 x scalable |
| Barcodes | Code 93, Code 39, UCC/EAN-128, GS1 DataBar, QR code, MaxiCode, Aztec code, UPC-A, UPC-E, MicroPDF417, Codabar, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, China Post, Plessey, Code 128B, Code 128C, Code 128A, EAN-128, EAN-8, EAN-13, MSI, RSS |
| RAM Installed (Max) | 64 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | 128 MB |
| Media Type | Notch-index tags, continuous labels, fanfold labels, black mark labels |
| Max Media Size | Roll (11.4 cm) |
| Min Media Size (Custom) | 19 mm x 10 mm |
| Max Media Size (Custom) | 114 mm x 25400 mm |
| Media Sizes | Roll (1.9 - 11.4 cm) |
| Max Printing Width | 108 mm |
| Max Printing Length | 25400 mm |
| Media Thickness Range | 0.055 mm - 0.19 mm |
| Roll Maximum Outer Diameter | 127 mm |
| Roll Core Diameter | 25.4 mm, 38 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.4 cm) |
| Networking | Print server |
| Connections | 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x LAN - RJ-45 |
| Cables Included | 1 x USB cable |
| Compliant Standards | FCC Class A certified, UL, CB, CCC, RoHS, WEEE, KC, EAC, RCM, BIS |
| Power Device | Power adapter - external |
| Voltage Required | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Software Included | Drivers & Utilities |
| ENERGY STAR | Yes |
| Service & Support | Limited warranty - 2 years ¦ Limited warranty - printhead - 1 year / 25 km or 1,000,000 inches ¦ Limited warranty - platen - 1 year / 50 km or 2,000,000 inches |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 25 - 85% (non-condensing) |
| Width | 17.2 cm |
| Depth | 19.5 cm |
| Height | 16.5 cm |
| Weight | 1.5 kg |
