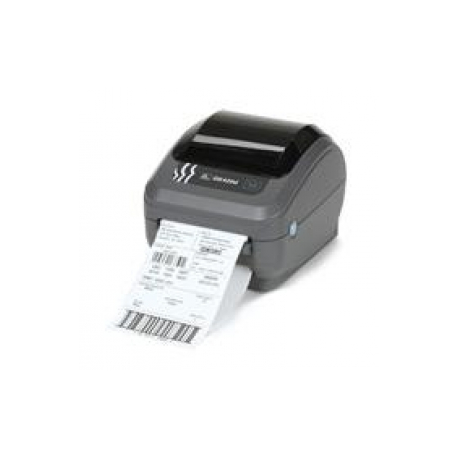

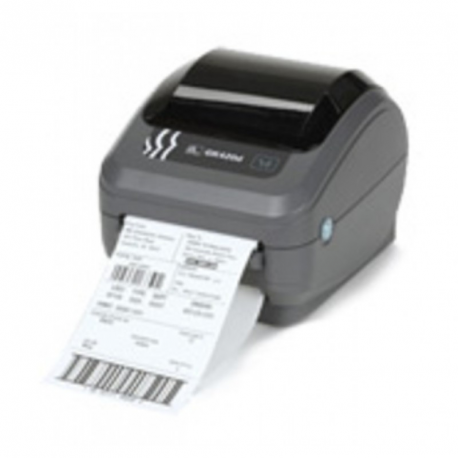

Zebra GK Series GK420d - Label printer - direct thermal - Roll (10.8cm) - 203 dpi - up to 127 mm / sec - parallel, USB, serial
Zebra GK Series GK420d - Label printer - direct thermal - Roll (10.8cm) - 203 dpi - up to 127 mm / sec - parallel, USB, serial
Manufacturer
•ZEBRA
Reference
•GK42-202520-000
Article
•84113
Intrastat
•84433210
Shipping weight
•1.4 kg
203dpi, EPL, ZPL,
Printer Type
Label printer - direct thermal - monochrome
Localisation
United Kingdom, Europe
Print Speed
Up to 127 mm/sec - max speed
Connectivity Technology
Wired
Interface
Parallel, USB, serial
Max Resolution (B&W)
203 dpi
Language Simulation
ZPL, ZPL II, EPL2
Barcodes
Code 93, Industrial 2 of 5, Code 39, UCC/EAN-128, Code 49, CODABLOCK, GS1 DataBar, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, Japanese Post, Plessey, MacroPDF417, EAN-14, Code 128B, Code 128C, German Post, MSI-3, Code 128A
RAM Installed (Max)
8 MB
Technology / Form Factor
SDRAM
Flash Memory
4 MB
Media Type
Continuous forms, fanfold paper, tag stock
Max Media Size
Roll (10.8cm)
Min Media Size (Custom)
19 mm x 9.7 mm
Max Media Size (Custom)
108 mm x 991 mm
Media Sizes
Roll (10.8cm)
Max Printing Width
104 mm
Media Thickness Range
0.08 mm - 0.2 mm
Roll Maximum Outer Diameter
127 mm
Roll Core Diameter
25.4 mm, 12.7 mm, 37.1 mm
Media Feeders
1 x manual - Roll (10.8cm)
Connections
1 x parallel / serial: - RS-232 - 36 PIN Centronics ¦ 1 x USB - 4 pin USB Type B
Compatible with Windows 7
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Compliant Standards
TUV, VCCI, C-Tick, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class B, CCC, FCC Part 15, IRAM
Voltage Required
AC 120/230 V
Frequency Required
50/60 Hz
Min Operating Temperature
5 °C
Max Operating Temperature
41 °C
Humidity Range Operating
10 - 90% (non-condensing)
Width
17.1 cm
Depth
20.9 cm
Height
15.2 cm
Weight
1.4 kg
Weight (Shipping)
3.2 kg
Zebra - Feed switch - for Zebra GX420d; GK Series GK420dCode: 105934-003
Accessories, Nameplate, GK420d (Direct thermal)Code: 105934-060
Zebra - Nameplate - for Zebra GX420tCode: 105934-063
Zebra - NameplateCode: 105934-061
Zebra - Platen bearingsCode: 105934-059
Zebra - Platen - for GK Series GK420dCode: P1027135-039
Zebra - Printer cable - DB-9 to DB-9 - 1.8 m - for GK Series GK420dCode: G105850-003
Zebra - Front bezelCode: 105934-030
Zebra - USB / serial back panelCode: 105934-071
Zebra - USB / Ethernet back panelCode: 105934-074
Zebra - PlatenCode: P1027135-040
Zebra - Gap sensor, fixed - upperCode: P1027135-003
Zebra - NameplateCode: 105934-067
Zebra - NameplateCode: 105934-068
Zebra - NameplateCode: 105934-069
Zebra - Media windowCode: 105934-001
Accessories, Wave Washer .740, Qty of 25Code: HW30115
Zebra - Feed switchCode: 105934-004
Zebra - Platen roller kit - for GX Series GX430tCode: 105934-035
Accessories, Gap/Black line Sensor, Fixed (Thermal transfer)Code: P1027135-013
Zebra - Head up sensorCode: 105934-041
Accessories, Screw M4 x 0.7 x 12, Qty of 25Code: HW10432
Accessories, Nut Hex M3, Qty of 25Code: HW10460
Zebra - Gap / blackline sensorCode: 105934-045
Zebra - Gap / blackline sensorCode: 105934-043
Zebra - Head up sensorCode: 105934-042
Accessories, Washer Split M3, Qty of 50Code: HW10471
Zebra - Shipping packCode: 105934-150
Zebra - Upper gap sensor - for Zebra GX420d; GK Series GK420dCode: P1027135-001
Zebra - LCD cover assemblyCode: 105934-049
Zebra - Dispenser front bezelCode: P1027135-045
Zebra - Front bezel dispenser (pack of 5)Code: P1027135-044
Zebra - 203 dpi - printhead - for Zebra GX420t; GK Series GK420tCode: 105934-038
Accessories, Gap/Black line Sensor, MoveableCode: P1027135-012
Zebra - 203 dpi - printhead - for Zebra GX420d; GK Series GK420dCode: 105934-037
Zebra - Power adapter - 75 Watt - United States - for Zebra ZD410Code: P1079903-026
Zebra - Print mechanism fixed sensorCode: P1027135-007
Zebra - Ribbon carriageCode: P1027135-046
Zebra - 300 dpi - printhead - for GX Series GX430tCode: 105934-039
GSLL 5YR ESSENTIAL CCCode: Z1AE-GSLL-5C0
Zebra - Light duty cutterCode: 105934-032
Zebra - GK main logic board, USB / Ethernet, ZBICode: P1027135-016
Zebra - Printer label cutterCode: 105934-033
Zebra - Main logic board, USB / Serial / Ethernet, 300 DPI, ZBICode: P1027135-024
Zebra - Main logic board U / S / W 64MB 200DPI RTC ZBI ZComaxCode: P1040103-004
