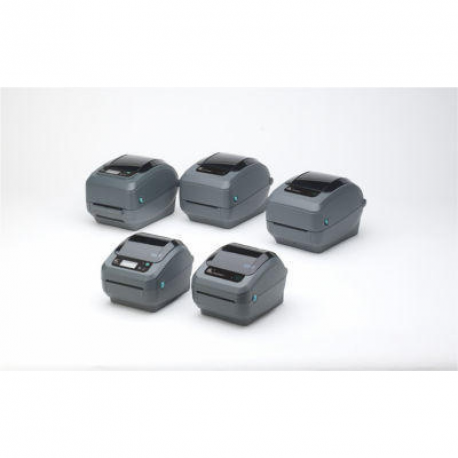

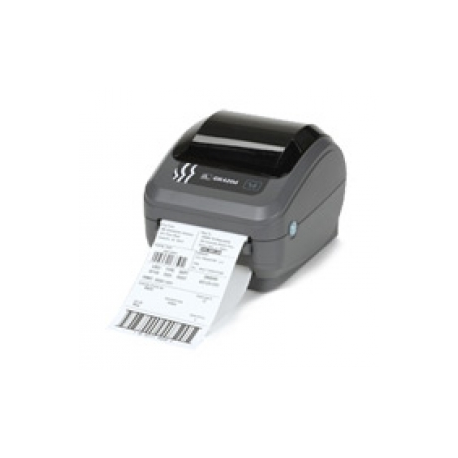

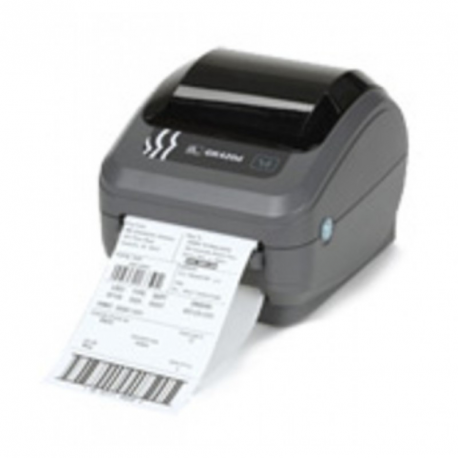

Zebra GK Series GK420d - Label printer - direct thermal - Roll (10.8cm) - 203 dpi - up to 127 mm / sec - USB, LAN
Zebra GK Series GK420d - Label printer - direct thermal - Roll (10.8cm) - 203 dpi - up to 127 mm / sec - USB, LAN
Manufacturer
•ZEBRA
Reference
•GK42-202220-000
Article
•380023
Intrastat
•84433210
Shipping weight
•1.4 kg
203dpi, EPL, ZPL
Printer Type
Label printer - direct thermal - monochrome
Print Speed
Up to 127 mm/sec - B/W - Roll (10.8cm)
Connectivity Technology
Wired
Interface
USB, LAN
Max Resolution (B&W)
203 dpi
Language Simulation
ZPL, ZPL II, EPL2
Barcodes
Code 93, Industrial 2 of 5, Code 39, UCC/EAN-128, Code 49, CODABLOCK, GS1 DataBar, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Code 2 of 5, UPC, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, Japanese Post, MacroPDF417, EAN-14, Code 128B, Code 128C, German Post, MSI-3, Code 128A
RAM Installed (Max)
8 MB
Technology / Form Factor
SDRAM
Flash Memory
4 MB
Media Type
Continuous forms, fanfold paper, tag stock
Max Media Size
Roll (10.8cm)
Min Media Size (Custom)
19 mm x 9.7 mm
Max Media Size (Custom)
108 mm x 991 mm
Media Sizes
Roll (10.8cm)
Max Printing Width
104 mm
Max Printing Length
991 mm
Media Thickness Range
0.08 mm - 0.2 mm
Roll Maximum Outer Diameter
127 mm
Roll Core Diameter
25.4 mm, 38 mm
Media Feeders
1 x manual - 1 roll
Networking
Print server
Network Controller Name
ZebraNet 10/100 Print Server
Data Link Protocol
Ethernet, Fast Ethernet
Connections
1 x LAN - RJ-45 ¦ 1 x USB
Compliant Standards
TUV, VCCI, C-Tick, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class B, CCC, FCC Part 15
Voltage Required
AC 120/230 V
Frequency Required
50/60 Hz
Power Factor Correction
Yes
Min Operating Temperature
5 °C
Max Operating Temperature
41 °C
Humidity Range Operating
10 - 90% (non-condensing)
Width
17.1 cm
Depth
20.9 cm
Height
15.2 cm
Weight
1.4 kg
