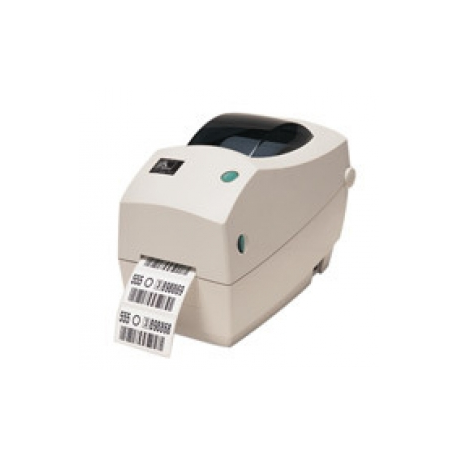

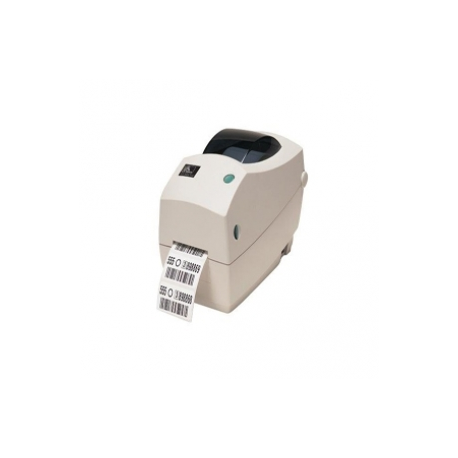

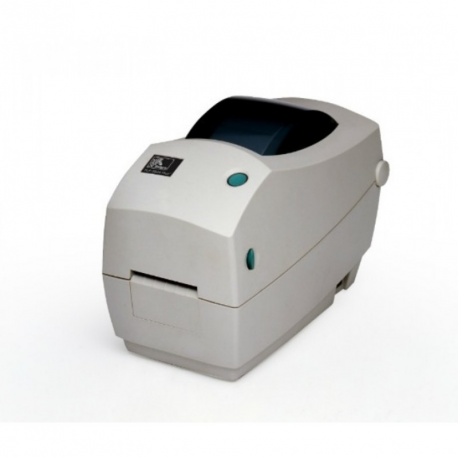

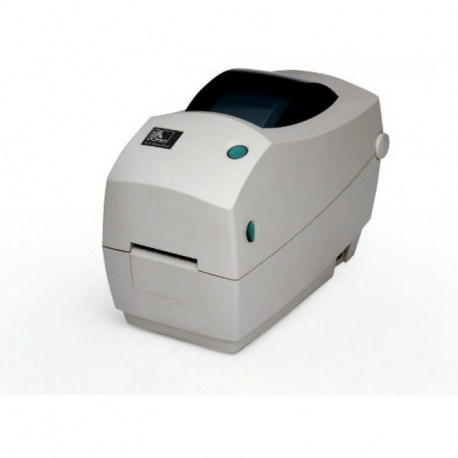

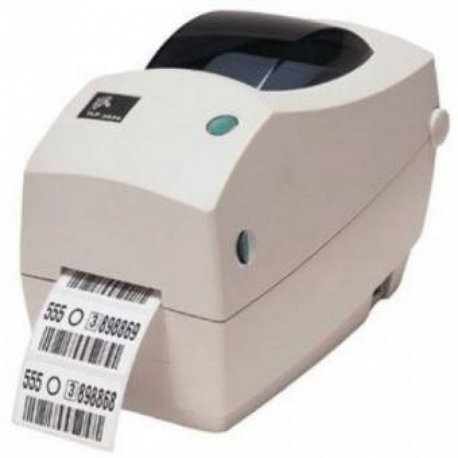

Zebra TLP 2824 Plus - Label printer - thermal transfer - Roll (6 cm) - 203 dpi - up to 102 mm / sec - LAN - peeler
images are for illustrative purposes only
New
Article: 467898 Intrastat: 84433210 SKU: 282P-101521-040
Pricing and stock details are available to registered users only.
| Printer Type | Label printer - thermal transfer - monochrome |
| Print Speed | Up to 102 mm/sec - max speed - 203 dpi |
| Built-in Devices | Peeler |
| Connectivity Technology | Wired |
| Interface | LAN |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | ZPL II, EPL2, EPL |
| Features | Realtime clock, peeler |
| Barcodes | Code 93, Industrial 2 of 5, Code 39, UCC/EAN-128, Code 49, CODABLOCK, GS1 DataBar, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, Japanese Post, EAN-14, Code 128B, Code 128C, German Post, MSI-3, Code 128A, GS1 DataBar Omnidirectional |
| RAM Installed (Max) | 8 MB |
| Flash Memory | 4 MB |
| Media Type | Labels, continuous forms, perforated thermal paper, receipt paper, fanfold paper, tag stock |
| Max Media Size | Roll (6 cm) |
| Max Media Size (Custom) | 60 mm |
| Media Sizes | Roll (6 cm) |
| Max Printing Width | 56 mm |
| Max Printing Length | 991 mm |
| Media Thickness Range | 0.08 mm - 0.18 mm |
| Roll Maximum Outer Diameter | 127 mm |
| Roll Core Diameter | 25.4 mm, 38 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (6 cm) |
| Networking | Print server |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Connections | 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB - 4 pin USB Type B |
| Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| Compliant Standards | UL, VCCI, C-Tick, NOM, FCC, IRAM |
| Power Device | Power adapter - external |
| Voltage Required | AC 120/230 V |
| Frequency Required | 50/60 Hz |
| Software Included | Drivers & Utilities, ZebraDesigner |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 41 °C |
| Humidity Range Operating | 10 - 90% |
| Width | 13.5 cm |
| Depth | 24.1 cm |
| Height | 17.8 cm |
| Weight | 1.6 kg |
