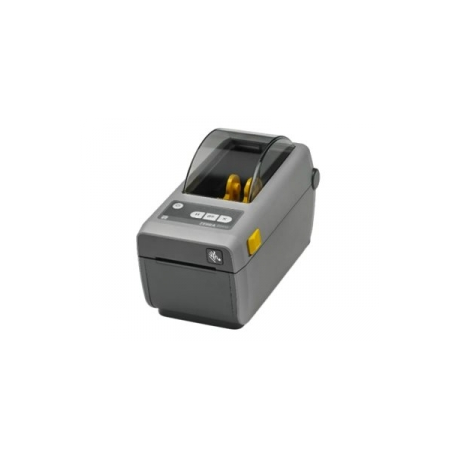

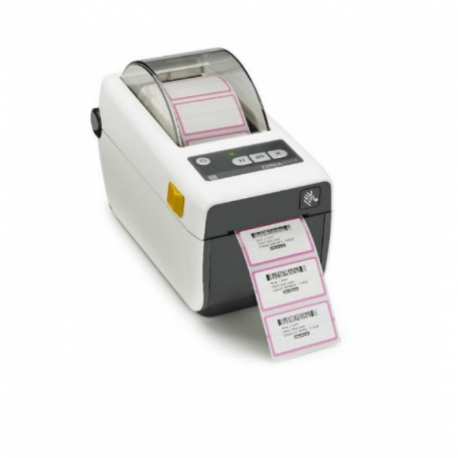

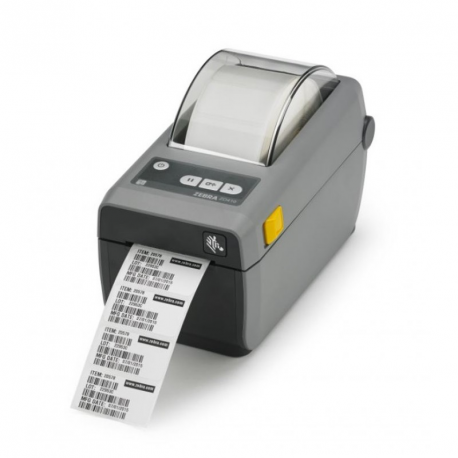

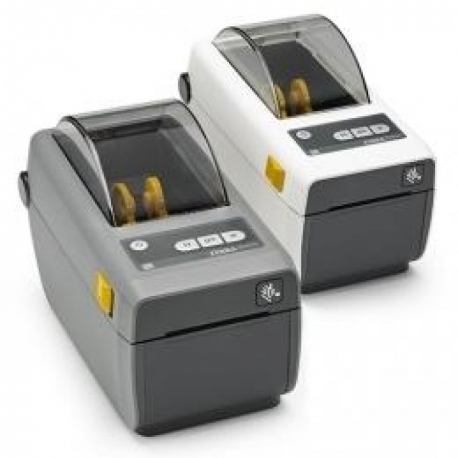

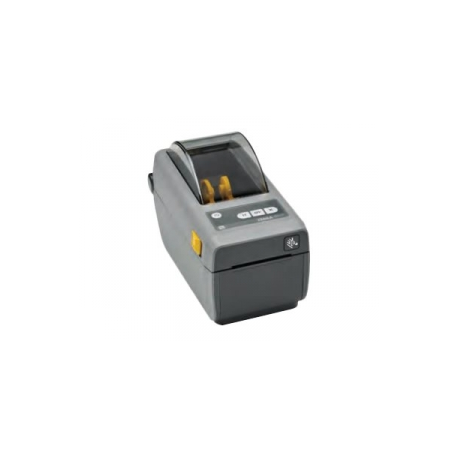

Zebra ZD410 - Label printer - direct thermal - Roll (6 cm) - 300 dpi - up to 102 mm / sec - USB 2.0, USB host, Wi-Fi(ac), Bluetooth 4.1
Manufacturer
•ZEBRA
Reference
•ZD41023-D0EW02EZ
Article
•1302243
Intrastat
•84433210
Shipping weight
•1 kg
USBBluetoothWireless networkDirect thermal300 dpi56 mm
If you need fast, dependable printing in space-constrained areas, you need the ZD410. This ultra-compact printer is designed for small work spaces. When it comes to flexibility, the ZD410 shines - this printer creates high-quality labels, receipts, tags and wristbands. This super-fast printer keeps your workers productive. Deployment is a breeze - the ZD410 is loaded with connectivity solutions. The ZD410 is easy to use, operate and troubleshoot, ensuring your printer is always up and running. The ZD410 - the little printer designed with big business functionality.
Printer Type
Label printer - direct thermal - monochrome
Localisation
United Kingdom, Europe
Print Speed
Up to 102 mm/sec - B/W - 300 dpi
Connectivity Technology
Wireless
Interface
USB 2.0, USB host, Wi-Fi(ac), Bluetooth 4.1
Max Resolution (B&W)
300 dpi
Language Simulation
ZPL II, EPL2, ZBI
Features
Transmissive media sensor, reflective media sensor
Fonts Included
16 x bitmapped ZPL II ¦ 2 x scalable ZPL ¦ 5 x expandable EPL2
Barcodes
Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, Plessey, Standard 2 of 5, EAN-8, EAN-13, MSI
RAM Installed (Max)
256 MB
Technology / Form Factor
SDRAM
Flash Memory
512 MB
Media Type
Receipt paper, tag stock, continuous paper labels, die cut labels, wristband labels, fanfold labels
Max Media Size
Roll (6 cm)
Media Sizes
Roll (6 cm)
Max Printing Width
56 mm
Max Printing Length
991 mm
Media Thickness Range
0.08 mm - 0.305 mm
Roll Maximum Outer Diameter
127 mm
Roll Core Diameter
25.4 mm, 76.2 mm, 38.1 mm, 12.7 mm, 50.8 mm
Media Feeders
1 x manual - 1 roll - Roll (6 cm)
Networking
Print server
Connections
1 x USB 2.0 - 4 pin USB Type B ¦ 1 x USB host - 4 pin USB Type A
Compliant Standards
FCC Class B certified, VCCI, C-Tick, BSMI, EN 61000-3-2, ICES-003, NOM, SABS, EN 61000-3-3, EN55024, EN55022 Class B, FCC Part 15.247, CCC, IC, IEC 60950-1, KCC, FCC Part 15.209, S Mark, cTUVus, EN 62311, EN 300 328, BIS, INMETRO, CU, RSS-247, EN 301 893
Power Device
Power supply
Voltage Required
AC 120/230 V
Frequency Required
50/60 Hz
Power Factor Correction
Yes
Software Included
Drivers & Utilities
ENERGY STAR
Yes
Min Operating Temperature
4.4 °C
Max Operating Temperature
41 °C
Humidity Range Operating
10 - 90% (non-condensing)
Width
11.5 cm
Depth
22 cm
Height
15.1 cm
Weight
1 kg
Zebra - Printer cable - DB-9 to DB-9 - 1.8 m - for GK Series GK420dCode: G105850-003
Zebra - Latch assemblyCode: P1079903-031
Zebra - Media windowCode: P1079903-002
Zebra - Rubber feet (pack of 4)Code: P1080383-021
Zebra - Head up sensorCode: P1080383-011
Zebra - Black line sensorCode: P1079903-012
Zebra - Platen roller bearing - left and right (pack of 10)Code: P1079903-014
Zebra - Shipping pack - for Zebra ZD410Code: P1079903-024
Zebra 5095 Premium Resin - 6-pack - 11 mm x 74 m - print ribbonCode: 05095CT11007
Zebra - Platten rollerCode: P1079903-003
Zebra - Upper media sensor (gap sensor)Code: P1079903-013
Zebra - Mounting bracketCode: P1079903-037
Zebra - Dispenser front bezelCode: P1079903-022
Zebra - Motor assembly, 300 dpiCode: P1079903-006
Zebra - Control panelCode: P1079903-015
Zebra - Cover assemblyCode: P1079903-001
Zebra - Cover assemblyCode: P1079903-036
Zebra - Printer upgrade kit - for Zebra ZD410Code: P1079903-033
Zebra 3400 Wax / Resin Premium - 6-pack - 11 mm x 74 m - print ribbonCode: 03400CT11007
Zebra - Battery base housing - for Zebra ZD410Code: P1080383-602
Zebra - 203 dpi - printhead - for Zebra ZD410Code: P1079903-010
Zebra - Inner lid (without printhead)Code: P1079903-017
Zebra - 300 dpi - printheadCode: P1079903-011

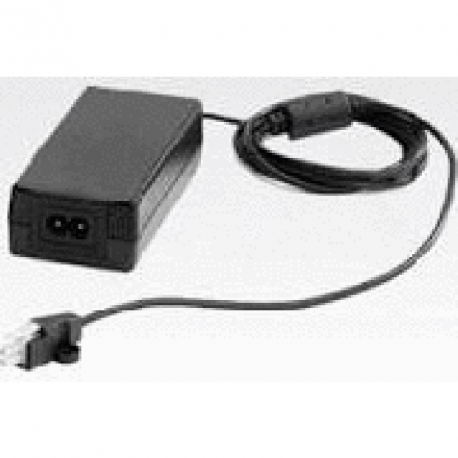

Zebra - Power adapter - 75 Watt - United States - for Zebra ZD410Code: P1079903-026
Zebra - Print mechanism 203 dpiCode: P1079903-018
Zebra - Print mechanism 300 dpiCode: P1079903-019
Zebra - Power adapter - 75 Watt - United States - for Zebra ZD410Code: P1079903-030
Zebra - 2" cutter module - for Zebra ZD410Code: P1079903-021

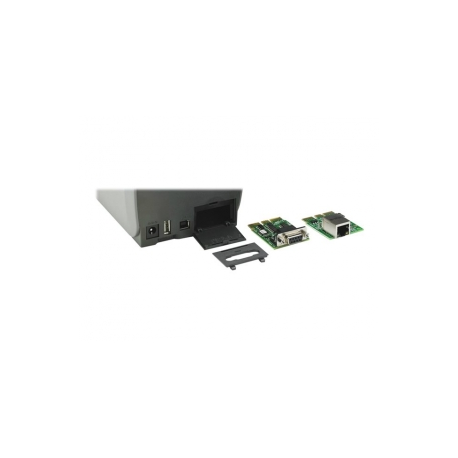

Zebra - Main logic board, USB, USB host, modular connectivity slotCode: P1080383-250
Zebra - 300 dpi - printhead - for Zebra ZD420Code: P1080383-007
Zebra 300dpi Upgrade Kit - Printer upgrade kit - for Zebra ZD420Code: P1080383-035
Zebra - Printer label cutter - for ZT400 Series ZT420Code: P1058930-190
