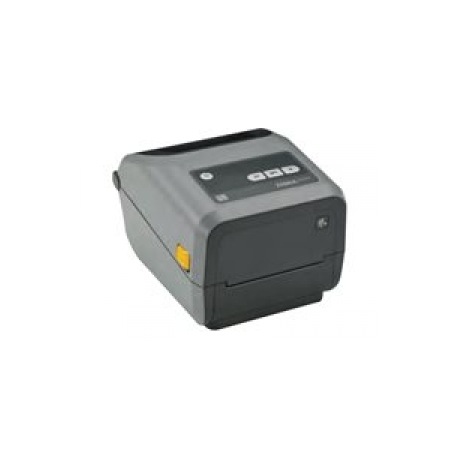

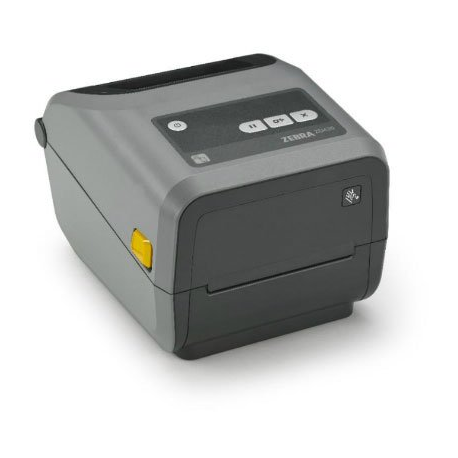

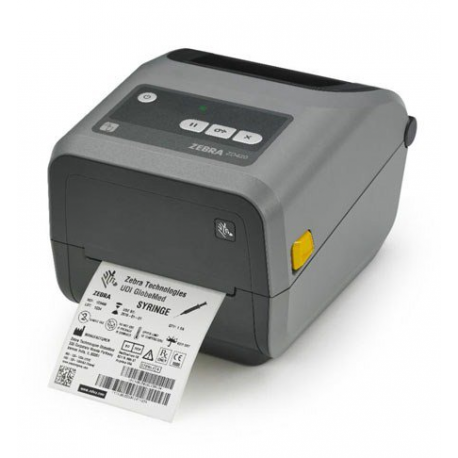

Zebra ZD420 - Label printer - thermal transfer - Roll (11.8 cm) - 203 dpi - up to 152 mm / sec - USB 2.0, USB host
Zebra ZD420 - Label printer - thermal transfer - Roll (11.8 cm) - 203 dpi - up to 152 mm / sec - USB 2.0, USB host
Manufacturer
•ZEBRA
Reference
•ZD42042-C0EM00EZ
Article
•1315631
Intrastat
•84433210
Shipping weight
•2.3 kg

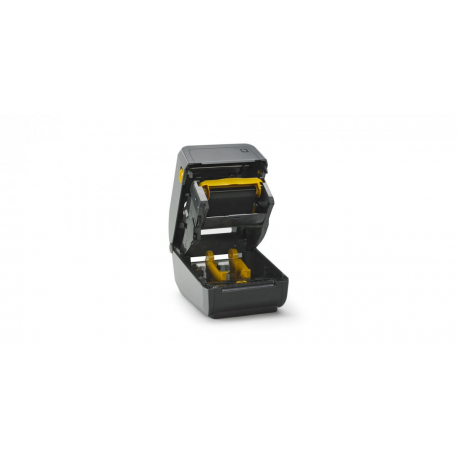

The ZD420 is loaded with features that make it the easiest printer to use in its class. The ZD420 is the only thermal printer to offer a ribbon cartridge, which takes just a few seconds to load, with fool-proof installation - the ribbon cartridge can only be loaded one way for first-time every-time instant loading. The crypto chip in the ribbon lets you know when the ribbon needs replacing. And with five intuitive status icons - status, pause, data, supplies and network - your workers can see at a glance what is needed to keep your Zebra printer up, running and available.
Printer Type
Label printer - thermal transfer - monochrome
Print Speed
Up to 152 mm/sec - B/W - 203 dpi
Connectivity Technology
Wired
Interface
USB 2.0, USB host
Max Resolution (B&W)
203 dpi
Language Simulation
ZPL , ZPL II, EPL2, ZBI, EPL
Features
Real time clock, Black Mark sensor, gap sensor
Fonts Included
16 x bitmapped ZPL II ¦ 2 x scalable ZPL ¦ 5 x expandable EPL2
Barcodes
Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet , PDF417, Data Matrix, PLANET, Plessey, Standard 2 of 5, EAN-8, EAN-13, MSI
RAM Installed (Max)
256 MB
Technology / Form Factor
SDRAM
Flash Memory
512 MB
Media Type
Receipt paper, tag stock, continuous paper labels, die cut labels, wristband labels, fanfold labels
Max Media Size
Roll (11.8 cm)
Media Sizes
Roll (11.8 cm)
Max Printing Width
104 mm
Max Printing Length
991 mm
Media Thickness Range
0.08 mm - 0.19 mm
Roll Maximum Outer Diameter
127 mm
Roll Core Diameter
25.4 mm, 76.2 mm, 38.1 mm, 12.7 mm, 50.8 mm
Media Feeders
1 x manual - 1 roll - Roll (11.8 cm)
Connections
1 x USB 2.0 - 4 PIN USB Type B ¦ 1 x USB host - 4 pin USB Type A
Features
Power Factor Correction (PFC)
Compliant Standards
FCC Class B certified, VCCI, C-Tick, BSMI, ICES-003, NOM, SABS, EN55024, EN55022 Class B, FCC Part 15.247, CCC, IC, IEC 60950-1, KCC, EN 301.893, FCC Part 15.209, S Mark, cTUVus, EN 62311, EN 300 328, BIS, INMETRO, EN61000-3-2, EN61000-3-3, CU, RSS-247
Power Device
Power supply
Voltage Required
AC 120/230 V
Frequency Required
50/60 Hz
Software Included
Drivers & Utilities
ENERGY STAR
Yes
Min Operating Temperature
4.4 °C
Max Operating Temperature
41 °C
Humidity Range Operating
10 - 90% (non-condensing)
Width
20.2 cm
Depth
25.4 cm
Height
17.7 cm
Weight
2.3 kg
