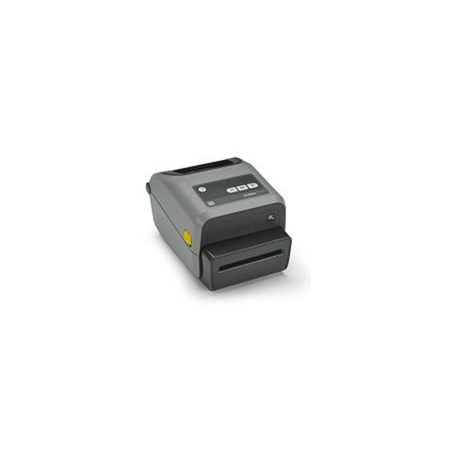

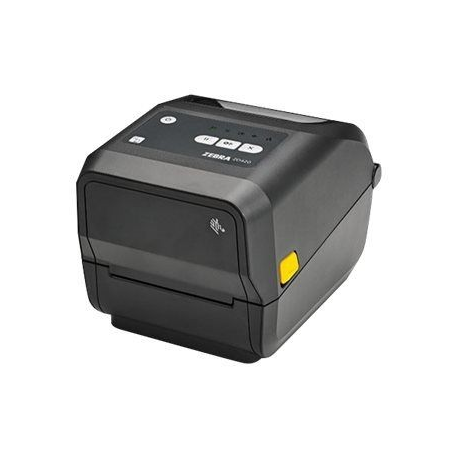

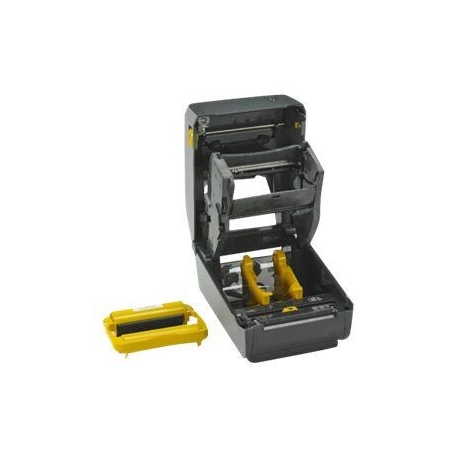

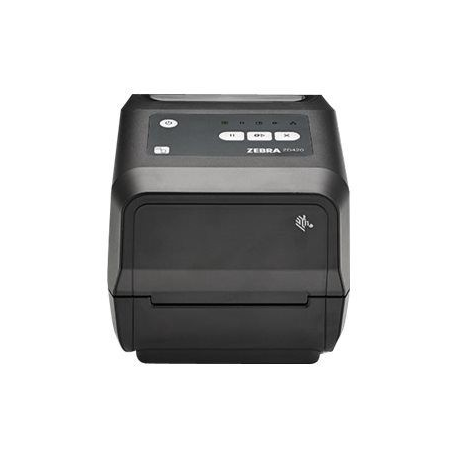

Zebra ZD420t - Label printer - thermal transfer - Roll (11.8 cm) - 300 dpi - up to 102 mm / sec - USB 2.0, USB host - tear bar - grey
Manufacturer
•ZEBRA
Reference
•ZD42043-T0E000EZ
Article
•1484323
Intrastat
•84433210
Shipping weight
•4 kg
USBDirect thermalThermal transfer300 dpi104 mm
Printer Type
Label printer - thermal transfer - monochrome
Enclosure Colour
Grey
Localisation
United Kingdom, Europe
Print Speed
Up to 102 mm/sec - max speed
Connectivity Technology
Wired
Interface
USB 2.0, USB host
Max Resolution (B&W)
300 dpi
Language Simulation
ZPL, ZPL II, EPL2, ZBI, EPL, Extensible Mark-up Language (XML)
Features
Realtime clock, Black Mark sensor, gap sensor, tear bar
Fonts Included
16 x bitmapped ZPL II ¦ 2 x scalable ZPL ¦ 5 x expandable EPL2
Barcodes
Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, Plessey, Standard 2 of 5, EAN-8, EAN-13, MSI
RAM Installed (Max)
256 MB
Technology / Form Factor
SDRAM
Flash Memory
512 MB
Media Type
Receipt paper, tag stock, continuous labels, die cut labels, wristband labels, fanfold labels
Max Media Size
Roll (11.8 cm)
Min Media Size (Custom)
15 mm
Max Media Size (Custom)
118 mm x 991 mm
Media Sizes
Roll (1.5 - 11.8 cm)
Max Printing Width
104 mm
Media Thickness Range
0.08 mm - 0.1905 mm
Roll Maximum Outer Diameter
127 mm
Roll Core Diameter
25.4 mm, 76.2 mm, 38.1 mm, 12.7 mm, 50.8 mm
Media Feeders
Input tray: 1 x manual - 1 roll - Roll (11.8 cm)
Connections
1 x USB 2.0 - 4 pin USB Type B ¦ 1 x USB host - 4 pin USB Type A
Included Accessories
2 core adapters
Cables Included
1 x USB cable
Compliant Standards
FCC Class B certified, VCCI, C-Tick, BSMI, EN 61000-3-2, ICES-003, NOM, SABS, EN 61000-3-3, EN55024, EN55022 Class B, FCC Part 15.247, CCC, IC, IEC 60950-1, KCC, FCC Part 15.209, S Mark, cTUVus, EN 62311, EN 300 328, BIS, INMETRO, CU, RSS-247, EN 301 893
Power Device
Power supply
Frequency Required
50/60 Hz
Power Factor Correction
Yes
ENERGY STAR
Yes
Min Operating Temperature
4.4 °C
Max Operating Temperature
41 °C
Humidity Range Operating
10 - 90% (non-condensing)
Width
20.2 cm
Depth
26.7 cm
Height
19.2 cm
Weight
2.4 kg
Zebra - Platen roller 203 dpiCode: P1080383-413
Zebra - Printer platen roller - for Zebra ZD620; ZD420 Series ZD420tCode: P1080383-223
Zebra - Platen rollerCode: P1080383-414
Zebra - Platen roller bearing kit - left and right (pack of 20)Code: P1080383-224
Zebra - Rubber feet (pack of 4)Code: P1080383-021
Zebra - Head up sensorCode: P1080383-011
Zebra - Covers for hinge (includes side and rear hinge covers)Code: P1080383-225
Zebra - Bezel, standard - frontCode: P1080383-412
Zebra - Media windowCode: P1080383-400
Zebra - Ribbon core adaptersCode: P1080383-231
Zebra - Bezel, standard - frontCode: P1080383-019
Zebra - Bezel, standard - rearCode: P1080383-020
Zebra - Cover open sensorCode: P1080383-044
Zebra - Bezel, standard - rearCode: P1080383-411
KIT,NAMEPLATE,ZD420C,ZD420T,PRINT NO PRICode: P1080383-201
KIT NAME PLATE ZD420DCode: P1080383-401
Zebra - Latch assemblyCode: P1080383-407
Zebra - Media window - for Zebra ZD620Code: P1080383-200
Zebra - Media sensor (blackline sensor) - lowerCode: P1080383-012
Zebra - Media sensor (blackline sensor) - lowerCode: P1080383-410
Zebra - Latch assemblyCode: P1080383-207
Zebra - Printer mounting bracketCode: P1080383-423
Zebra - Media sensor (gap sensor moveable) - upperCode: P1080383-210
Zebra - Ribbon out sensorCode: P1080383-014
Zebra - Dispenser front bezel - for Zebra ZD420Code: P1080383-018
Zebra - Front bezel dispenser - for Zebra ZD420dCode: P1080383-418
Zebra - Packaging kitCode: P1080383-232
Zebra - Shipping packCode: P1080383-424
Zebra - Cover assembly with media windowCode: P1080383-403
Zebra - Cover assemblyCode: P1080383-404
Zebra - Replacement key (pack of 5)Code: P1080383-406
Zebra - Control panel PCBA (without LCD)Code: P1080383-208
Zebra - Battery base housing - for Zebra ZD420d, ZD620d, ZD621dCode: P1080383-601
Zebra - Battery base housing - for Zebra ZD420c, ZD420t, ZD620tCode: P1080383-600
Zebra - Printer upgrade kit - for Zebra ZD410Code: P1079903-033
Zebra - Motor assemblyCode: P1080383-221
Zebra - Inner lid (without printhead)Code: P1080383-402
Zebra - Printhead (203 dpi) - for Zebra ZD620Code: P1080383-415
Zebra - Power adapter - 75 Watt - United States - for Zebra ZD410Code: P1079903-026
Zebra - Convert to 203 dpiCode: P1080383-230
Zebra - Convert to 203 dpiCode: P1080383-422
Zebra - Cover assemblyCode: P1080383-205
Zebra - Power adapter - 75 Watt - United States - for Zebra ZD410Code: P1079903-030
Zebra - Printer cutter module - for ZD420 Series ZD420tCode: P1080383-228
Zebra - 4" cutter - for Zebra ZD420d, ZD620dCode: P1080383-417
Zebra - Print mechanism 203 dpiCode: P1080383-211
Zebra - Ribbon carriageCode: P1080383-209
Zebra - Main logic board, USB, USB host, modular connectivity slotCode: P1080383-250
Zebra - Printhead (300 dpi) - for Zebra ZD420Code: P1080383-416
Zebra - Convert to 300 dpiCode: P1080383-229
Zebra - Convert to 300 dpiCode: P1080383-421
KIT PRINT MECHANISM 203DPICode: P1080383-408
Zebra - Print mechanism 300 dpiCode: P1080383-409
