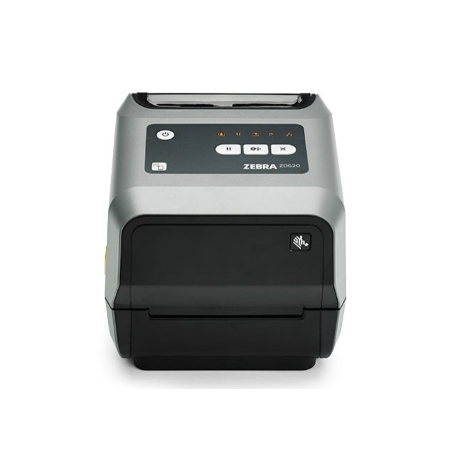

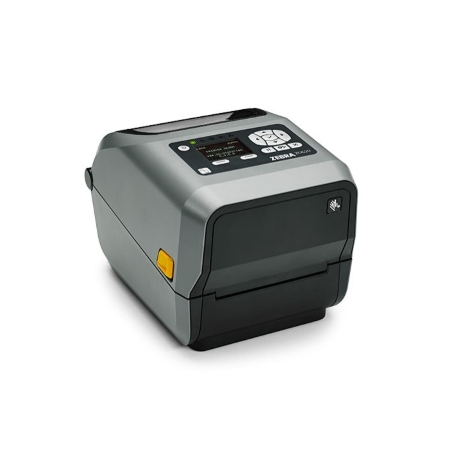

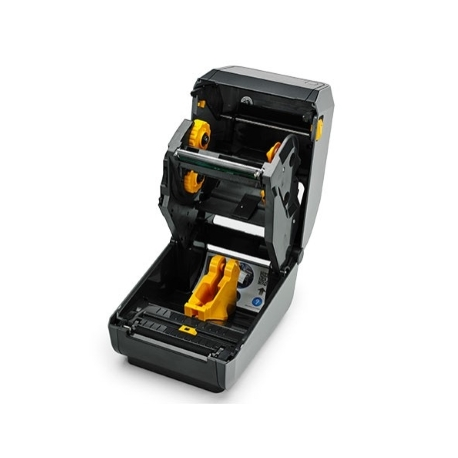

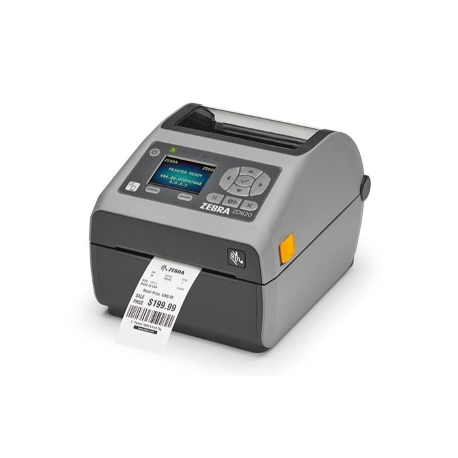

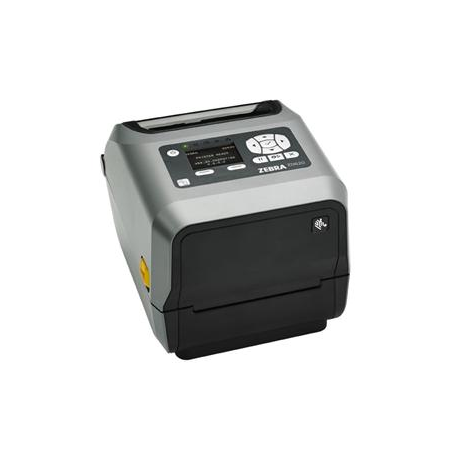

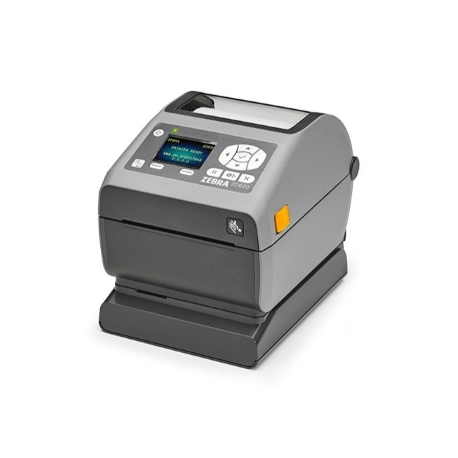

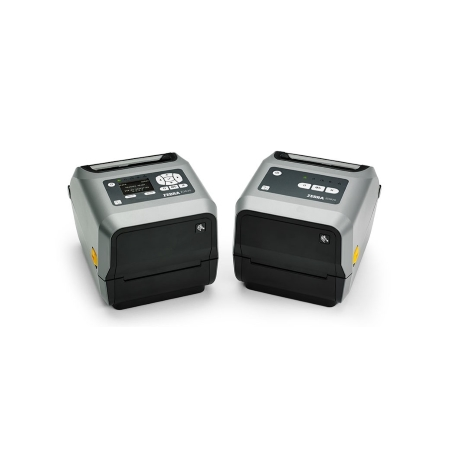

Zebra ZD620d - Label printer - direct thermal - Roll (11.8 cm) - 300 dpi - up to 152 mm / sec - USB 2.0, LAN, serial, USB host, Wi-Fi(ac), Bluetooth 4.1, Bluetooth LE - tear bar - grey
images are for illustrative purposes only
New
Article: 1517892 Intrastat: 84433210 SKU: ZD62143-D0EL02EZ
Pricing and stock details are available to registered users only.
| Printer Type | Label printer - direct thermal - monochrome |
| Enclosure Colour | Grey |
| Print Speed | Up to 152 mm/sec - B/W - 300 dpi |
| Connectivity Technology | Wireless |
| Interface | USB 2.0, LAN, serial, USB host, Wi-Fi(ac), Bluetooth 4.1, Bluetooth LE |
| Max Resolution (B&W) | 300 dpi |
| Language Simulation | ZPL II, EPL2, ZBI, Extensible Mark-up Language (XML) |
| Features | Realtime clock, Black Mark sensor, gap sensor, tear bar |
| Fonts Included | 16 x bitmapped ZPL II ¦ 2 x scalable ZPL ¦ 5 x expandable EPL2 |
| Barcodes | Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, Plessey, Standard 2 of 5, EAN-8, EAN-13, MSI |
| RAM Installed (Max) | 256 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | 512 MB |
| Media Type | Receipt paper, tag stock, continuous labels, die cut labels, wristband labels, fanfold labels |
| Max Media Size | Roll (11.8 cm) |
| Min Media Size (Custom) | 15 mm |
| Max Media Size (Custom) | 118 mm |
| Media Sizes | Roll (11.8 cm) |
| Max Printing Width | 108 mm |
| Max Printing Length | 991 mm |
| Media Thickness Range | 0.08 mm - 0.1905 mm |
| Roll Maximum Outer Diameter | 127 mm |
| Roll Core Diameter | 25.4 mm, 76.2 mm, 38.1 mm, 12.7 mm, 50.8 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.8 cm) |
| Networking | Print server |
| Connections | 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x USB host - 4 pin USB Type A ¦ 1 x LAN - RJ-45 ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) |

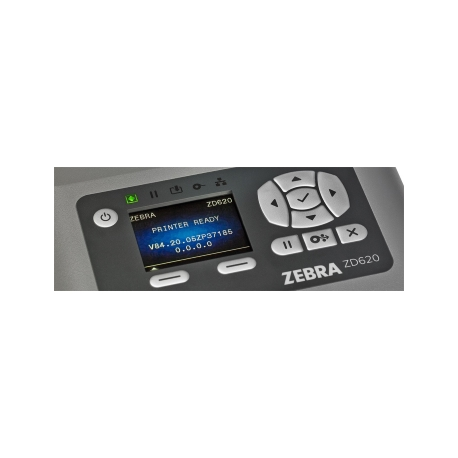

| Features | LCD display |
| Compliant Standards | FCC Class B certified, VCCI, C-Tick, BSMI, EN 61000-3-2, ICES-003, NOM, SABS, EN 61000-3-3, EN55024, EN55022 Class B, FCC Part 15.247, CCC, IC, IEC 60950-1, KCC, FCC Part 15.209, S Mark, cTUVus, EN 62311, EN 300 328, BIS, INMETRO, CU, RSS-247, EN 301 893 |
| Power Device | Power supply |
| Voltage Required | AC 120/230 V |
| Frequency Required | 50/60 Hz |
| Power Factor Correction | Yes |
| Software Included | Drivers & Utilities, Link-OS |
| ENERGY STAR | Yes |
| Min Operating Temperature | 4.4 °C |
| Max Operating Temperature | 41 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Width | 17.7 cm |
| Depth | 22.1 cm |
| Height | 15.1 cm |
| Weight | 1.6 kg |
