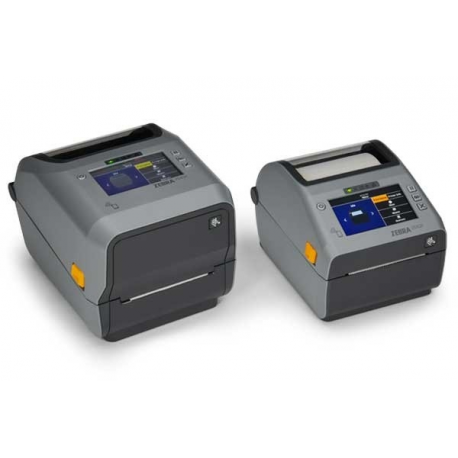

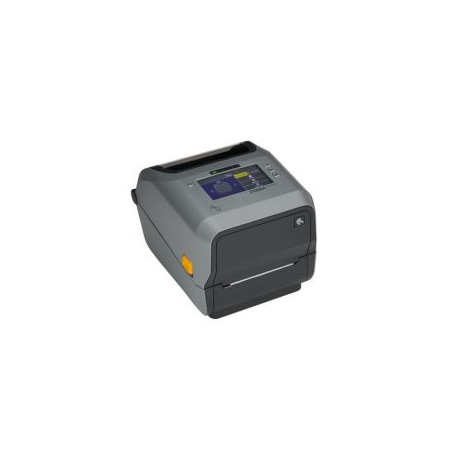

Zebra ZD621d - Label printer - direct thermal - Roll (10.8cm) - 300 dpi - up to 152 mm / sec - USB 2.0, LAN, serial, USB host - cutter
images are for illustrative purposes only
New
Article: 1771337 Intrastat: 84433210 SKU: ZD6A043-D4EF00EZ
Pricing and stock details are available to registered users only.
| Printer Type | Label printer - direct thermal - monochrome |
| Localisation | United Kingdom, Europe |
| Print Speed | Up to 152 mm/sec - max speed |
| Built-in Devices | 4.3 inch LCD touch screen |
| Connectivity Technology | Wired |
| Interface | USB 2.0, LAN, serial, USB host |
| Max Resolution (B&W) | 300 dpi |
| Language Simulation | ZPL II, EPL2, ZBI, EZPL, Extensible Mark-up Language (XML), PDF Direct |
| Fonts | Swiss 721 |
| Features | Label Taken Sensor (LTS), realtime clock, linerless, transmissive/gap sensor, reflective/black mark sensor |
| Cutter | Yes |
| Fonts Included | 16 x bitmapped ZPL II ¦ 2 x scalable ZPL ¦ 5 x expandable EPL2 |
| Barcodes | Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, Plessey, Standard 2 of 5, EAN-8, EAN-13, MSI, UPC-2, UPC-5 |
| RAM Installed (Max) | 256 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | 512 MB |
| Media Type | Linerless labels, tag stock, receipt labels, continuous labels, die cut labels, wristband labels, fanfold labels, black mark labels |
| Max Media Size | Roll (10.8cm) |
| Min Media Size (Custom) | 15 mm x 6.4 mm |
| Max Media Size (Custom) | 108 mm x 991 mm |
| Media Sizes | Roll (1.5 - 10.8 cm) |
| Max Printing Width | 108 mm |
| Media Thickness Range | 0.08 mm - 0.19 mm |
| Roll Maximum Outer Diameter | 127 mm |
| Roll Core Diameter | 25.4 mm, 12.7 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (10.8cm) |
| Networking | Print server |
| Connections | 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x USB host - 4 pin USB Type A ¦ 1 x LAN - RJ-45 ¦ 1 x RS-232 |
| Included Accessories | 2 core adapters, 1" ribbon take-up core, 0.5" ribbon take-up core |
| Cables Included | 1 x USB cable |
| Features | Printer setup mobile app via BLE connection |
| Compliant Standards | FCC Class B certified, VCCI, C-Tick, BSMI, EN 61000-3-2, ICES-003, NOM, SABS, EN 61000-3-3, EN55024, EN55022 Class B, FCC Part 15.247, CCC, IC, IEC 60950-1, KCC, FCC Part 15.209, S Mark, cTUVus, EN 62311, EN 300 328, RoHS 2011/65/EU, BIS, INMETRO, CU, RSS-247, IEC 62368-1, EN 301 893, EN 55035 |
| Power Device | Power adapter - external |
| Voltage Required | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Power Factor Correction | Yes |
| ENERGY STAR | Yes |
| Service & Support | Limited warranty - 2 years |
| Min Operating Temperature | 4.4 °C |
| Max Operating Temperature | 41 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Width | 17.7 cm |
| Depth | 22.1 cm |
| Height | 15.1 cm |
| Weight | 1.6 kg |
