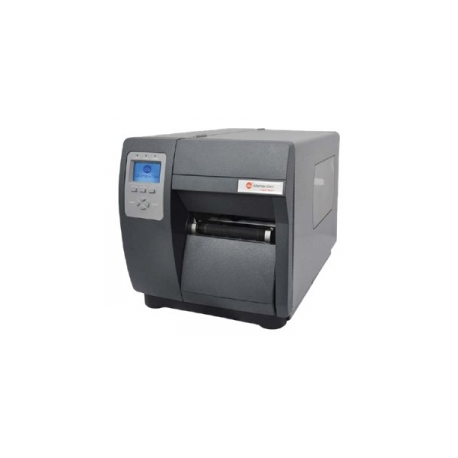

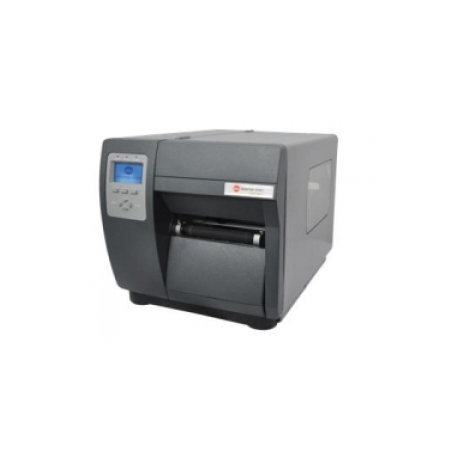

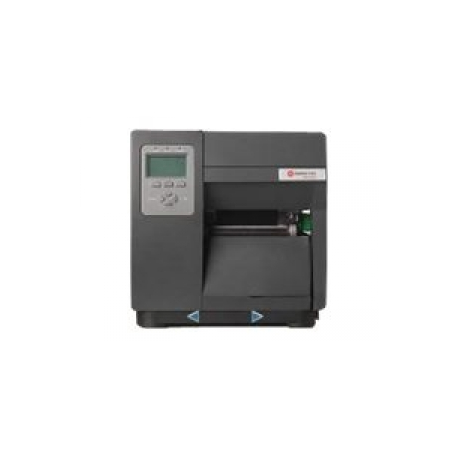

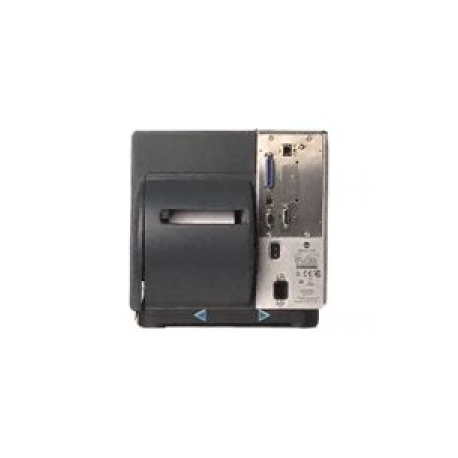

Datamax I-Class Mark II I-4212e - Label printer - thermal transfer - Roll (11.81 cm) - 203 dpi - up to 304 mm / sec - parallel, USB, LAN, serial
images are for illustrative purposes only
New
Article: 467101 Intrastat: 84433210 SKU: I12-00-46000L07
Pricing and stock details are available to registered users only.
| Printer Type | Label printer - thermal transfer - monochrome |
| Form Factor | Stationary |
| Localisation | United Kingdom, Europe |
| Print Speed | Up to 304 mm/sec - max speed - 203 dpi |
| Built-in Devices | Status LCD |
| Connectivity Technology | Wired |
| Interface | Parallel, USB, LAN, serial |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | DPL |
| Fonts | CG Times, CG Triumvirate, CG Triumvirate Bold Condensed, OCR-A, OCR-B |
| Styles & Effects | Bold, Mirror, rotated text |
| Features | Realtime clock |
| Display Resolution | 128 x 64 |
| Keyboard | 7 keys |
| Fonts Included | 1 x scalable ¦ 1 x barcode ¦ 1 x bitmapped ¦ 1 x TrueType |
| Barcodes | Code 93, Industrial 2 of 5, UCC/EAN-128, CODABLOCK, GS1 DataBar, QR code, MaxiCode, Aztec code, Telepen, HIBCC, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Code 16K, Code 3 of 9, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, FIM, PLANET, TLC39, Plessey, Standard 2 of 5, USD-8 |
| Processor | 400 MHz |
| RAM Installed (Max) | 32 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | 64 MB |
| Media Type | Labels, continuous forms, fanfold paper, tag stock, tickets, perforated tags, continuous paper labels, die cut labels |
| Max Media Size | Roll (11.81 cm) |
| Min Media Size (Custom) | 25.4 mm x 6.35 mm |
| Max Media Size (Custom) | 118.1 mm |
| Media Sizes | Roll (2.54 - 11.81 cm) |
| Max Printing Width | 104.1 mm |
| Max Printing Length | 2514.6 mm |
| Media Thickness Range | 0.0635 mm - 0.254 mm |
| Roll Maximum Outer Diameter | 203.2 mm |
| Roll Core Diameter | 76.2 mm, 38.1 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.8 cm) |
| Networking | Print server |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Connections | 1 x parallel - 36 PIN Centronics ¦ 1 x RS-232 - 25 pin D-Sub (DB-25) ¦ 1 x USB ¦ 1 x LAN - RJ-45 |
| Included Accessories | 3.0"/1.5" Media Hub |
| Features | Clear window, rugged |
| Compliant Standards | PCT, EN55024, EN55022 Class A, CCC, UL 60950-1, IEC 60950-1, FCC Part 15 A, cULus, GOST-R, GB 4943, GB 17625.1, ISO 9001:2008, CAN/CSA C22.2 No. 60950-1-07, GB 9254-2008 |
| Power Device | Power supply - internal |
| Voltage Required | AC 230V |
| Frequency Required | 50/60 Hz |
| Software Included | Drivers & Utilities, NETira Configuration Tool |
| OS Required | Microsoft Windows NT, Microsoft Windows Vista / XP |
| Service & Support | Limited warranty - 1 year ¦ Limited warranty - printhead - 1 year or 1,000,000 inches |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Width | 32.05 cm |
| Depth | 47.24 cm |
| Height | 32.26 cm |
| Weight | 20.5 kg |
