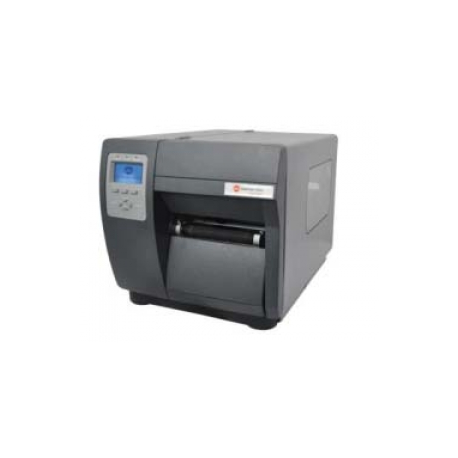

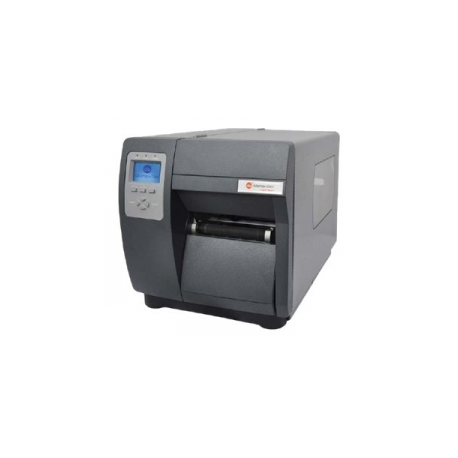

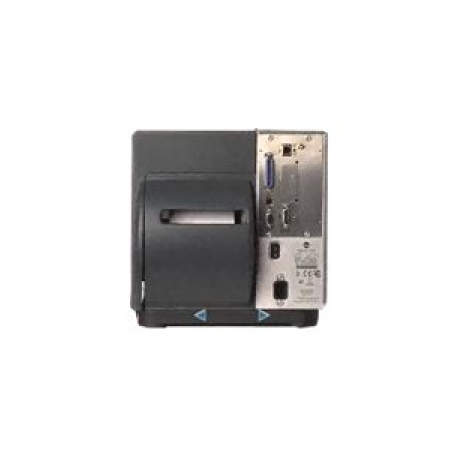

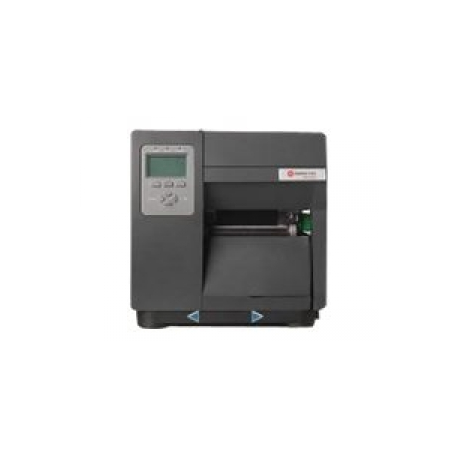

Datamax I-Class Mark II I-4310e - Label printer - direct thermal / thermal transfer - Roll (11.8 cm) - 300 dpi - up to 254 mm / sec - parallel, USB, LAN, serial - rewinder
images are for illustrative purposes only
New
Article: 464841 Intrastat: 84433210 SKU: I13-00-46900L07
Pricing and stock details are available to registered users only.
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
| Localisation | United Kingdom, Europe |
| Print Speed | Up to 254 mm/sec - max speed |
| Built-in Devices | Status LCD |
| Connectivity Technology | Wired |
| Interface | Parallel, USB, LAN, serial |
| Max Resolution (B&W) | 300 dpi |
| Language Simulation | DPL |
| Fonts | CG Times, CG Triumvirate, CG Triumvirate Bold Condensed, OCR-A, OCR-B |
| Styles & Effects | Bold, Mirror, rotated text |
| Features | Rewinder, realtime clock |
| Barcodes | Code 93, Industrial 2 of 5, UCC/EAN-128, GS1 DataBar, QR code, MaxiCode, Aztec code, Telepen, HIBCC, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Code 16K, Code 3 of 9, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, FIM, PLANET, TLC39, Plessey, Standard 2 of 5, USD-8 |
| Processor | 400 MHz |
| RAM Installed (Max) | 32 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | 64 MB (installed) / 64 MB (max) |
| Media Type | Labels, continuous forms, fanfold paper, tag stock, tickets, perforated tags, continuous paper labels, die cut labels |
| Max Media Size | Roll (11.8 cm) |
| Min Media Size (Custom) | 25.4 mm x 6.35 mm |
| Max Media Size (Custom) | 118 mm |
| Media Sizes | Roll (2.54 - 11.8 cm) |
| Max Printing Width | 105.7 mm |
| Max Printing Length | 2514.6 mm |
| Media Thickness Range | 0.0635 mm - 0.254 mm |
| Roll Maximum Outer Diameter | 203.2 mm |
| Roll Core Diameter | 76.2 mm, 38.1 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.8 cm) |
| Networking | Print server |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Connections | 1 x parallel - 36 PIN Centronics ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x LAN - RJ-45 |
| Included Accessories | Rewind |
| Compliant Standards | ISO 9001:2008 |
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V |
| Frequency Required | 50/60 Hz |
| Software Included | Drivers & Utilities |
| Service & Support | Limited warranty - 1 year ¦ Limited warranty - printhead - 1 year or 1,000,000 inches |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Width | 32.05 cm |
| Depth | 47.24 cm |
| Height | 32.26 cm |
| Weight | 20.5 kg |
