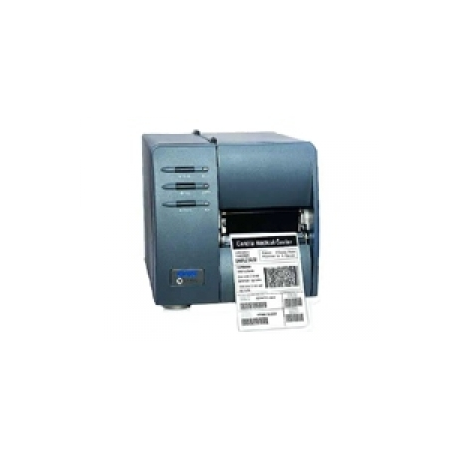

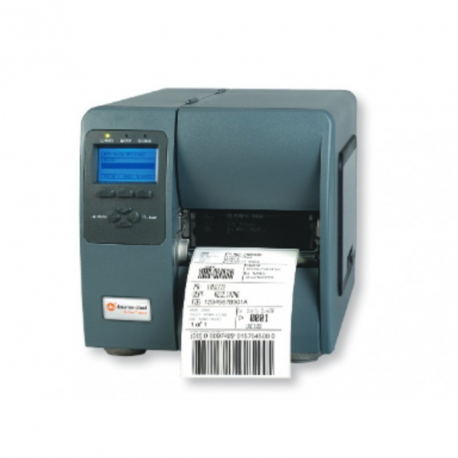

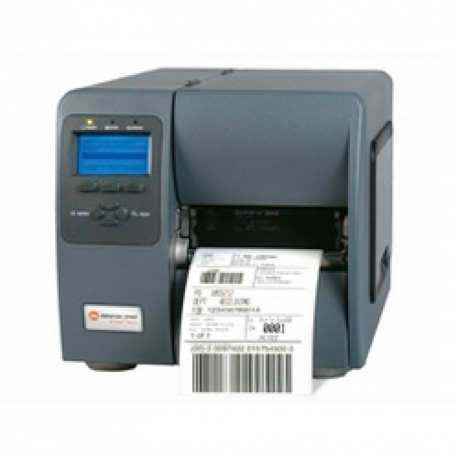

Datamax M-Class Mark II M-4206 - Label printer - direct thermal - Roll (11.8 cm) - 203 dpi - up to 152 mm / sec - parallel, USB, LAN, serial
images are for illustrative purposes only
New
Article: 448321 Intrastat: 84433210 SKU: KD2-00-06000Y00
Pricing and stock details are available to registered users only.
| Printer Type | Label printer - direct thermal - monochrome |
| Print Speed | Up to 152 mm/sec - max speed - 203 dpi |
| Connectivity Technology | Wired |
| Interface | Parallel, USB, LAN, serial |
| Max Resolution (B&W) | 203 dpi |
| Fonts | CG Triumvirate, OCR-A, OCR-B |
| Display Resolution | 128 x 64 |
| Keyboard | 5 keys |
| Fonts Included | 1 x bitmapped ¦ 1 x TrueType ¦ Intellifonts |
| Barcodes | Code 93, UCC/EAN-128, GS1 DataBar, QR code, MaxiCode, Aztec code, Telepen, HIBCC, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 3 of 9, UPC, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, FIM, TLC39 |
| Processor | 100 MHz |
| RAM Installed (Max) | 8 MB |
| Flash Memory | 4 MB |
| Media Type | Continuous forms, perforated labels, fanfold paper |
| Max Media Size | Roll (11.8 cm) |
| Max Media Size (Custom) | 118 mm |
| Media Sizes | Roll (11.8 cm) |
| Max Printing Width | 108 mm |
| Max Printing Length | 2475 mm |
| Media Thickness Range | 0.064 mm - 0.254 mm |
| Roll Maximum Outer Diameter | 203 mm |
| Roll Core Diameter | 38 mm, 76.2 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.8 cm) |
| Networking | Print server |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Network / Transport Protocol | TCP/IP, IPX/SPX, UDP/IP, ICMP/IP, LPR/LPD, BOOTP, DHCP, RARP |
| Remote Management Protocol | SNMP, Telnet, HTTP |
| Expansion Slots | 1 x expansion slot |
| Connections | 1 x parallel - 36 PIN Centronics ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB ¦ 1 x LAN - RJ-45 |
| Included Accessories | Plastic cover, label roll hanger |
| Features | LCD display |
| Compliant Standards | EN 60950, EN55024, CSA 22.2 No. 950, UL 60950, EN55022 Class B, FCC CFR47 Part 15, FCC Part 15 A, GOST-R |
| Power Device | Power supply - internal |
| Voltage Required | AC 120 V |
| Frequency Required | 50/60 Hz |
| Min Operating Temperature | 4 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 10 - 95% |
| Width | 24.9 cm |
| Depth | 45.9 cm |
| Height | 26.2 cm |
| Weight | 9.5 kg |
