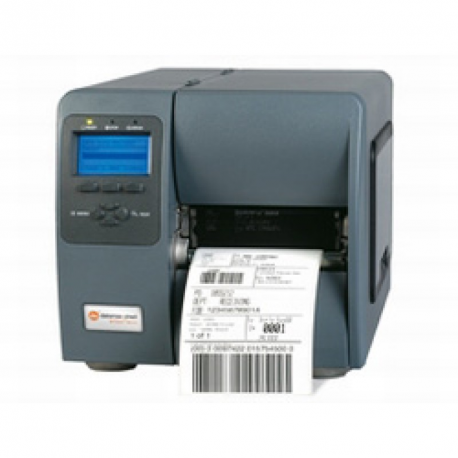

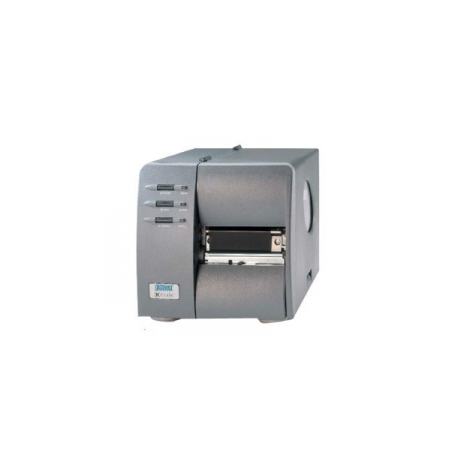

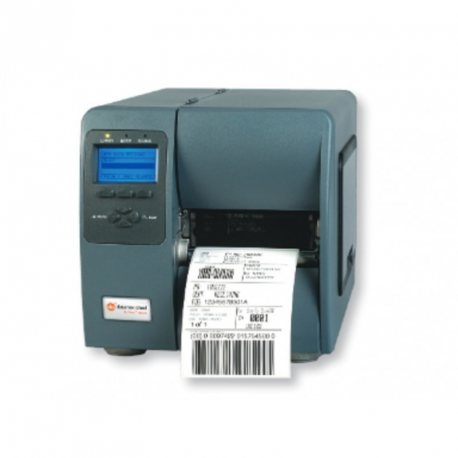

Datamax M-Class Mark II M-4206 - Label printer - direct thermal / thermal transfer - Roll (11.8 cm) - 203 dpi - up to 152 mm / sec - parallel, USB, LAN, serial
images are for illustrative purposes only
New
Article: 448313 Intrastat: 84433210 SKU: KD2-00-46000Y00
Pricing and stock details are available to registered users only.
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
| Print Speed | Up to 152 mm/sec - max speed - 203 dpi |
| Built-in Devices | Status LCD |
| Connectivity Technology | Wired |
| Interface | Parallel, USB, LAN, serial |
| Max Resolution (B&W) | 203 dpi |
| Barcodes | Code 93, UCC/EAN-128, GS1 DataBar, QR code, MaxiCode, Aztec code, Telepen, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 3 of 9, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, FIM, TLC39 |
| Processor | 100 MHz |
| RAM Installed (Max) | 8 MB |
| Flash Memory | 8 MB |
| Media Type | Continuous forms, perforated labels, fanfold paper |
| Max Media Size | Roll (11.8 cm) |
| Max Media Size (Custom) | 118 mm |
| Media Sizes | Roll (1.9 cm), Roll (11.8 cm) |
| Max Printing Width | 108 mm |
| Media Thickness Range | 0.0635 mm - 0.254 mm |
| Roll Maximum Outer Diameter | 203 mm |
| Roll Core Diameter | 38 mm, 76.2 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.8 cm) |
| Networking | Print server |
| Data Link Protocol | Ethernet |
| Connections | 1 x parallel ¦ 1 x RS-232 ¦ 1 x USB ¦ 1 x LAN - RJ-45 |
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V |
| Frequency Required | 50/60 Hz |
| Min Operating Temperature | 4 °C |
| Max Operating Temperature | 35 °C |
| Width | 25.7 cm |
| Depth | 46.2 cm |
| Height | 25.9 cm |
| Weight | 12.2 kg |
