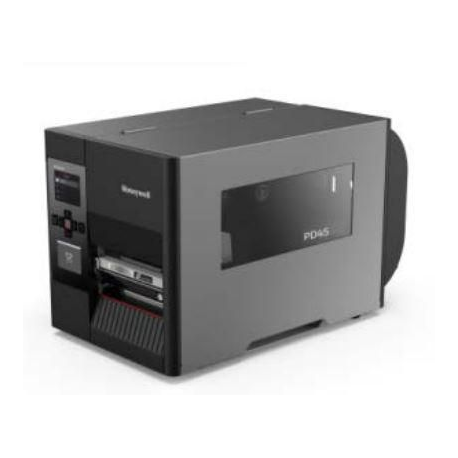

Honeywell PD45 - Label printer - direct thermal / thermal transfer - Roll (11.4 cm) - 203 dpi - up to 250 mm/sec - USB 2.0, LAN, serial, USB 2.0 host - rewinder
images are for illustrative purposes only
New
Article: 1874869 Intrastat: 84433210 SKU: PD4500B0030000200
Pricing and stock details are available to registered users only.
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
| Print Speed | Up to 250 ppm - 203 dpi |
| Built-in Devices | 2.36 inch keyed LCD display |
| Connectivity Technology | Wired |
| Interface | USB 2.0, LAN, serial, USB 2.0 host |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | ZPL II, Intermec Printer Language (IPL), Intermec Fingerprint, Intermec Direct Protocol, Extensible Mark-up Language (XML), DPL, ZSim2 |
| Features | Rewinder, Label Taken Sensor (LTS), peel off sensor |
| Processor | ARM 800 MHz |
| RAM Installed (Max) | 128 MB |
| Technology / Form Factor | DDR3 SDRAM |
| Flash Memory | 128 MB |
| Media Type | Labels, continuous labels, tags |
| Max Media Size | Roll (11.4 cm) |
| Min Media Size (Custom) | 20 mm |
| Max Media Size (Custom) | 114 mm |
| Media Sizes | Roll (2 - 11.4 cm) |
| Max Printing Width | 108 mm |
| Max Printing Length | 48000 mm |
| Media Thickness Range | 0.076 mm - 0.255 mm |
| Roll Maximum Outer Diameter | 80 mm |
| Roll Core Diameter | 25.4 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.4 cm) |
| Networking | Print server |
| Security Protocols & Features | LEAP, WEP, WPA, WPA2, EAP-TTLS, EAP-TLS, PEAP, EAP-FAST |
| Connections | 1 x USB 2.0 - 4 pin USB Type B USB 2.0 host - 4 pin USB Type A 1 x LAN - RJ-45 1 x RS-232 |
| Power Device | Power supply - internal |
| Voltage Required | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 85% (non-condensing) |
| Width | 24.9 cm |
| Depth | 43.8 cm |
| Height | 27 cm |
| Weight | 10.82 kg |
