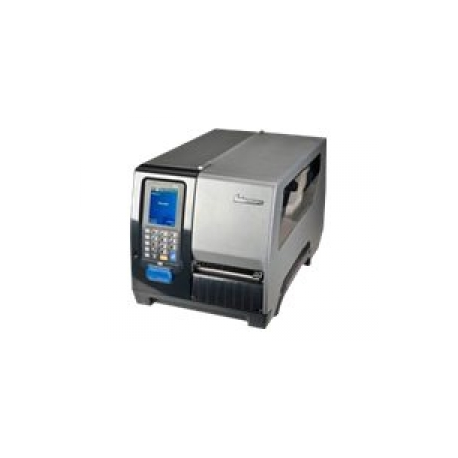

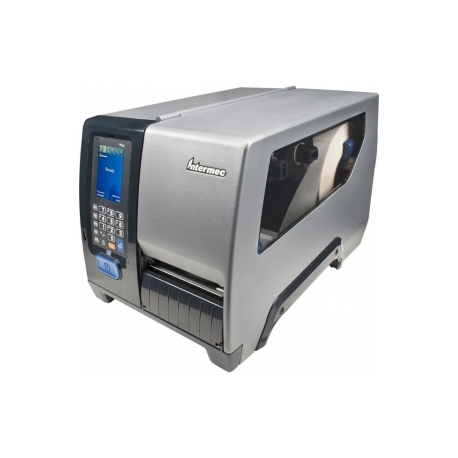

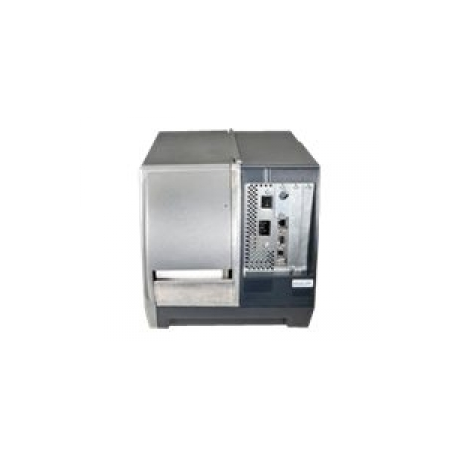

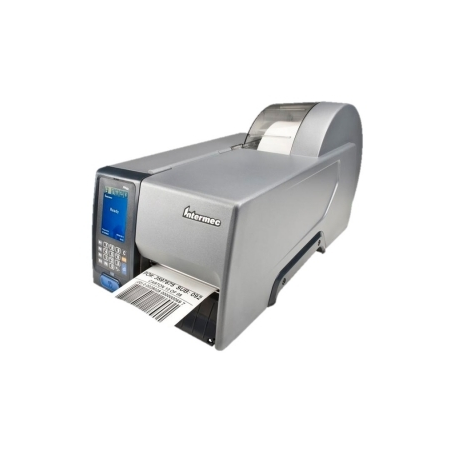

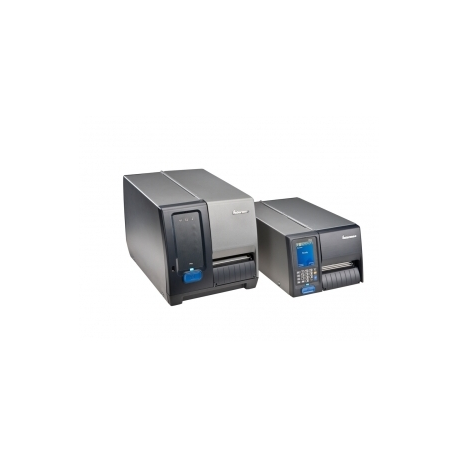

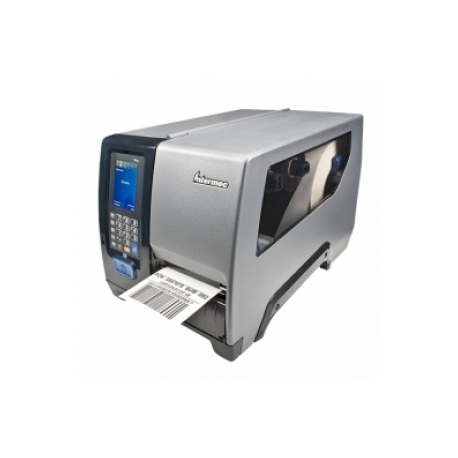

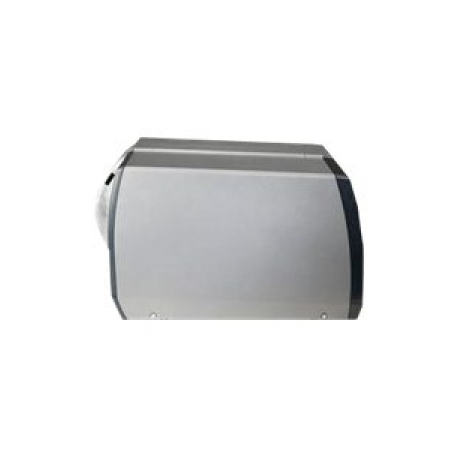

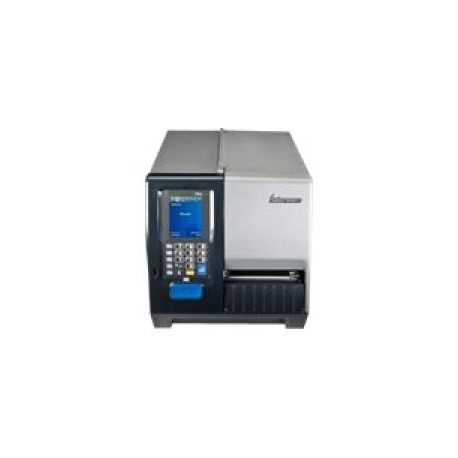

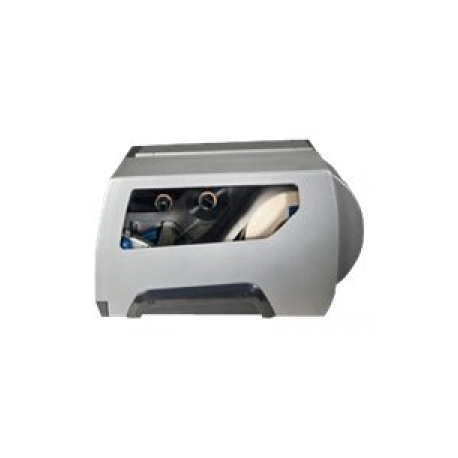

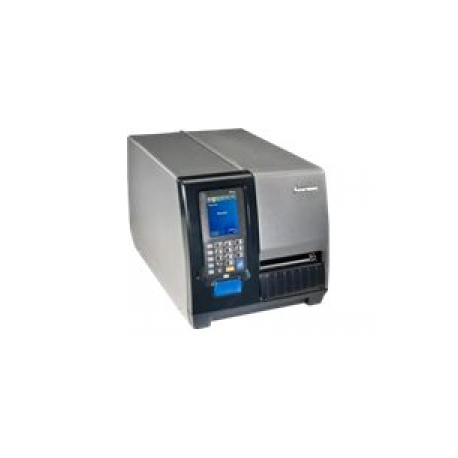

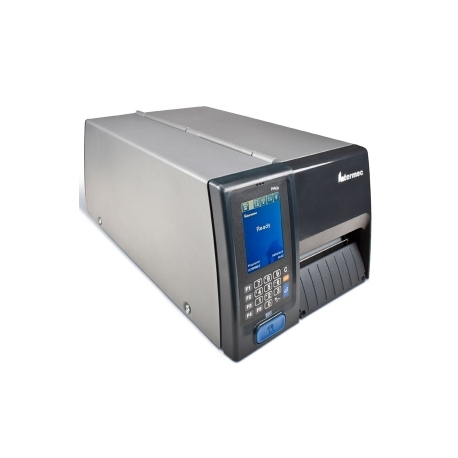

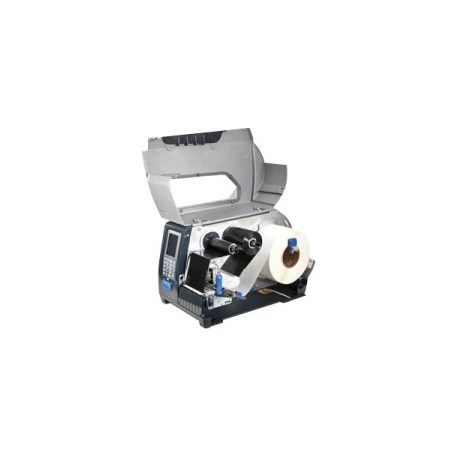

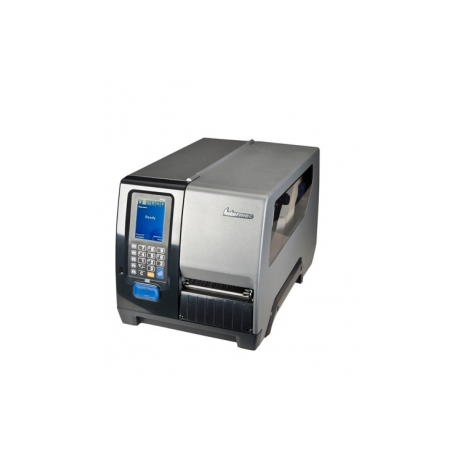

Honeywell PM43 - Label printer - direct thermal / thermal transfer - Roll (11.4 cm) - 203 dpi - up to 300 mm / sec - USB, LAN, serial
images are for illustrative purposes only
New
Article: 420299 Intrastat: 84433210 SKU: PM43A01000000202
Pricing and stock details are available to registered users only.
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
| Localisation | Europe |
| Print Speed | Up to 300 mm/sec - max speed - 203 dpi |

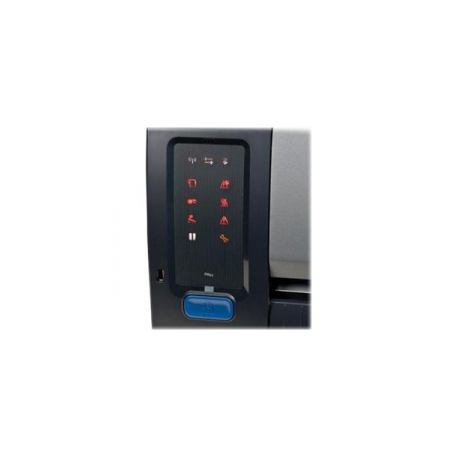

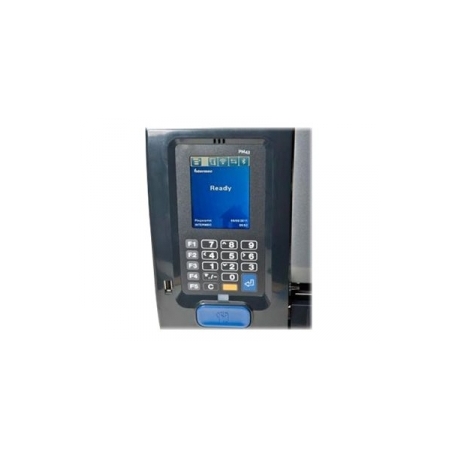

| Built-in Devices | Status LCD |
| Connectivity Technology | Wired |
| Interface | USB, LAN, serial |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | ZPL, Intermec Printer Language (IPL), DSim (Datamax Interpreter), ZSim, Extensible Mark-up Language (XML), DPL |
| Barcodes | EAN/JAN, Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, UCC/EAN-128, Code 49, ISBT 128, GS1 DataBar, QR code, MaxiCode, Aztec code, HIBCC, LOGMARS, MicroPDF417, Codabar, Code 128, Code 11, Code 16K, UPC, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, Plessey, AIAG, Standard 2 of 5, Grid Matrix Code |
| Printer Features | RFID ready, USB host |
| RAM Installed (Max) | 128 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | 128 MB |
| Media Type | Labels, linerless labels, fanfold paper, tag stock, tickets |
| Max Media Size | Roll (11.4 cm) |
| Min Media Size (Custom) | 19.1 mm |
| Max Media Size (Custom) | 114.3 mm |
| Media Sizes | Roll (1.9 - 11.4 cm) |
| Max Printing Width | 108 mm |
| Media Weight | 57.6 g/m² - 250 g/m² |
| Roll Maximum Outer Diameter | 213 mm |
| Roll Core Diameter | 76.2 mm, 38.1 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.4 cm) |
| Networking | Print server |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP, LPR/LPD, SMTP, FTP, BOOTP, DHCP |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP |
| Connections | 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x LAN - RJ-45 ¦ 1 x USB - 4 pin USB Type A |
| Included Accessories | Fixed media hanger |
| Compliant Standards | FCC Class A certified, UL, C-Tick, cUL, EN55022, CCC, RoHS |
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 300 Watt |
| Power Consumption Stand by / Sleep | 9 Watt |
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits) |
| ENERGY STAR | Yes |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Width | 28.4 cm |
| Depth | 48.4 cm |
| Height | 29.5 cm |
| Weight | 15.8 kg |
