Honeywell PM43c - Label printer - thermal transfer - Roll (11.4 cm) - 300 dpi - up to 300 mm / sec - USB 2.0, LAN, serial, USB host

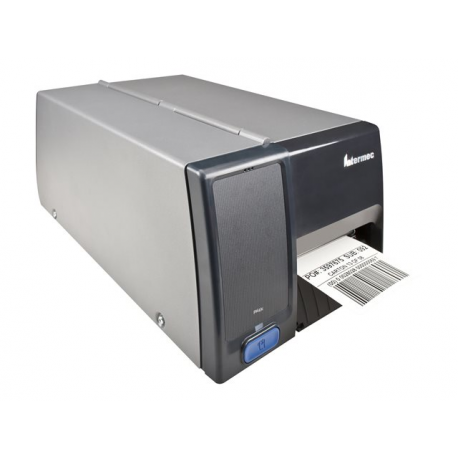

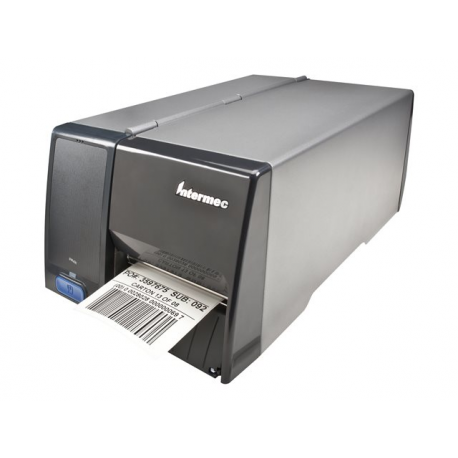

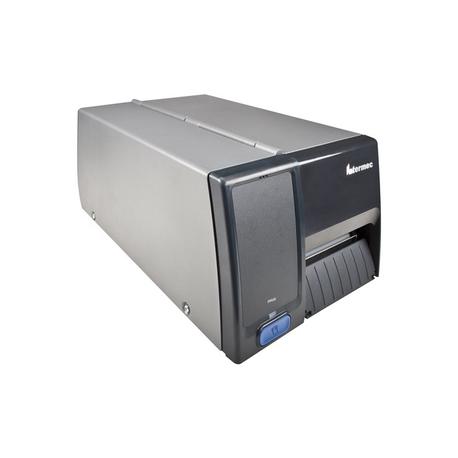

images are for illustrative purposes only
New
Article: 1562138 Intrastat: 84433210 SKU: PM43CA1130000300
Pricing and stock details are available to registered users only.
| Printer Type | Label printer - thermal transfer - monochrome |
| Print Speed | Up to 300 mm/sec - max speed |
| Built-in Devices | Status LCD, touch screen |
| Connectivity Technology | Wired |
| Interface | USB 2.0, LAN, serial, USB host |
| Max Resolution (B&W) | 300 dpi |
| Language Simulation | ZPL, Intermec Printer Language (IPL), Intermec Fingerprint, Intermec Direct Protocol, DSim (Datamax Interpreter), ZSim, Extensible Mark-up Language (XML), DPL |
| Barcodes | EAN/JAN, Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, Code 49, ISBT 128, QR code, MaxiCode, Aztec code, MicroPDF417, Codabar, Code 128, Code 11, Code 16K, UPC, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, Plessey, Standard 2 of 5, Grid Matrix Code |
| Printer Features | RFID ready, USB host |
| RAM Installed (Max) | 128 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | 128 MB |
| Media Type | Labels, linerless labels, fanfold paper, tag stock, tickets |
| Max Media Size | Roll (11.4 cm) |
| Min Media Size (Custom) | 19.1 mm x 6.35 mm |
| Max Media Size (Custom) | 114.3 mm |
| Media Sizes | Roll (1.9 - 11.4 cm) |
| Max Printing Width | 106 mm |
| Media Weight | 57.6 g/m² - 250 g/m² |
| Roll Maximum Outer Diameter | 213 mm |
| Roll Core Diameter | 76.2 mm, 38.1 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.4 cm) |
| Networking | Print server |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP |
| Expansion Slots | 1 x expansion slot |
| Connections | 1 x LAN - RJ-45 ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x USB 2.0 host - 4 pin USB Type A |
| Included Accessories | Long door, fixed media hanger, front access door |
| Compliant Standards | FCC Class A certified, UL, C-Tick, cUL, CCC, RoHS, EN 55022 Class A |
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 300 Watt |
| Power Consumption Stand by | 9 Watt |
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits) |
| ENERGY STAR | Yes |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Width | 25.25 cm |
| Depth | 43.184 cm |
| Height | 18.1 cm |
| Weight | 12.5 kg |
