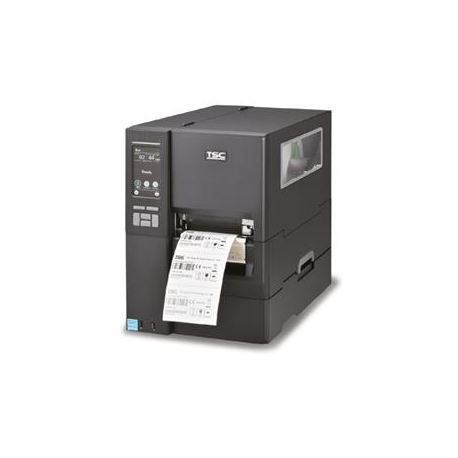

TSC MH241P - Label printer - direct thermal / thermal transfer - Roll (11.4 cm) - 203 dpi - up to 356 mm / sec - USB 2.0, LAN, serial, USB host - rewinder
images are for illustrative purposes only
New
Article: 1771628 Intrastat: 84433210 SKU: MH241P-A001-0302
Pricing and stock details are available to registered users only.
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
| Print Speed | Up to 356 mm/sec - max speed |
| Built-in Devices | 4.3 inch LCD touch screen |
| Connectivity Technology | Wired |
| Interface | USB 2.0, LAN, serial, USB host |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | ZPL, ZPL II, EPL, DPL, TSPL-EZD |
| Fonts | CG Triumvirate Bold Condensed |
| Styles & Effects | Rotated text |
| Features | Rewinder, realtime clock, ribbon end sensor, ribbon encode sensor, open head sensor, transmissive/gap sensor, reflective/black mark sensor |
| Display Resolution | 480 x 272 |
| Fonts Included | 8 x bitmapped ¦ 1 x scalable |
| Barcodes | Code 93, Code 39, GS1 DataBar, QR code, MaxiCode, Aztec code, UPC-A, UPC-E, Codabar, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, China Post, Plessey, Code 128B, Code 128C, Code 128A, EAN-128, EAN-8, EAN-13, MSI, RSS, UPC-2, UPC-5 |
| RAM Installed (Max) | 256 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | 512 MB |
| Type | Card reader |
| Supported Flash Memory Cards | microSD |
| Media Type | Continuous labels, die cut labels, fanfold labels, black mark labels |
| Max Media Size | Roll (11.4 cm) |
| Min Media Size (Custom) | 20 mm x 5 mm |
| Max Media Size (Custom) | 114 mm x 2540 mm |
| Media Sizes | Roll (2 - 11.4 cm) |
| Max Printing Width | 104 mm |
| Max Printing Length | 25400 mm |
| Media Thickness Range | 0.06 mm - 0.28 mm |
| Roll Maximum Outer Diameter | 203.2 mm |
| Roll Core Diameter | 76.2 mm, 38.1 mm |
| Media Feeders | 1 x manual - Roll (11.4 cm) |
| Networking | Print server |
| Connections | 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x RS-232 ¦ 1 x LAN - RJ-45 ¦ 2 x USB host - 4 pin USB Type A |
| Cables Included | 1 x USB cable ¦ Power cable (EU) |
| Compliant Standards | FCC Class A certified, UL, TUV, BSMI, cUL, CCC, RoHS, WEEE, S Mark, KC, EAC, BIS, CoC, RCM Class A |
| Power Device | Power supply - internal |
| Voltage Required | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| ENERGY STAR | Yes |
| Service & Support | Limited warranty - 2 years ¦ Limited warranty - printhead - 1 year / 25 km ¦ Limited warranty - platen - 1 year / 50 km |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 25 - 85% (non-condensing) |
| Width | 27.6 cm |
| Depth | 50.2 cm |
| Height | 41.2 cm |
| Weight | 18.93 kg |
