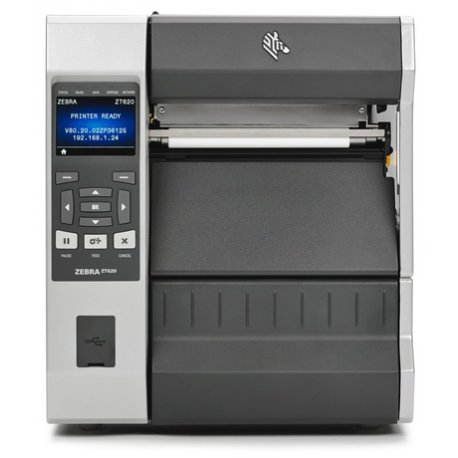

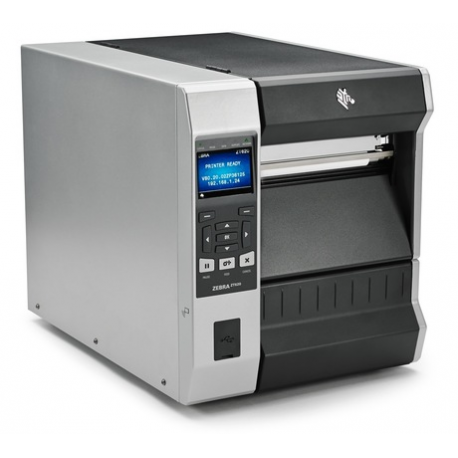

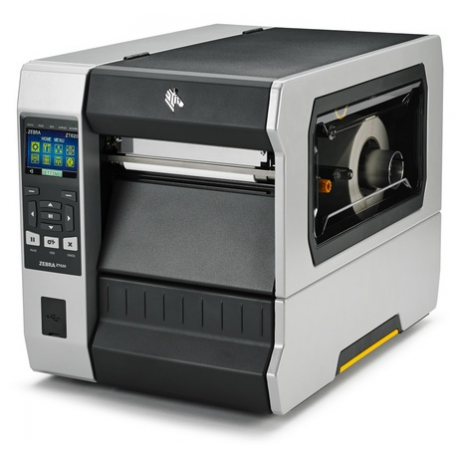

Zebra ZT620 - Label printer - direct thermal / thermal transfer - Roll (17.1 cm) - 300 dpi - up to 305 mm / sec - USB, serial, Gigabit LAN, USB host, NFC, Bluetooth 4.0 - rewinder
images are for illustrative purposes only
New
Article: 1662715 Intrastat: 84433210 SKU: ZT62063-T2E0200Z
Pricing and stock details are available to registered users only.
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
| Localisation | United Kingdom, Europe |
| Print Speed | Up to 305 mm/sec - max speed |
| Built-in Devices | Status LCD |
| Connectivity Technology | Wireless |
| Interface | USB, serial, Gigabit LAN, USB host, NFC, Bluetooth 4.0 |
| Max Resolution (B&W) | 300 dpi |
| Language Simulation | ZPL, ZPL II, Extensible Mark-up Language (XML) |
| Fonts | CG Triumvirate Bold Condensed, OCR-A, OCR-B |
| Styles & Effects | Mirror, rotated text |
| Features | Rewinder, realtime clock |
| Display Resolution | 240 x 320 |
| Fonts Included | 16 x bitmapped ¦ 2 x scalable |
| Barcodes | Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, TLC39, Plessey, Code 128B, Code 128C, Code 128A, Standard 2 of 5, EAN-8, EAN-13, MSI, RSS-14 |
| Printer Features | Multi-level Element Energy Equalizer (E3) |
| Processor | Cortex-A9 800 MHz |
| RAM Installed (Max) | 1 GB |
| Technology / Form Factor | SDRAM |
| Flash Memory | 2 GB |
| Media Type | Continuous labels, die cut labels |
| Max Media Size | Roll (17.1 cm) |
| Min Media Size (Custom) | 51 mm |
| Max Media Size (Custom) | 180 mm |
| Media Sizes | Roll (5.1 - 17.8 cm) |
| Max Printing Width | 168 mm |
| Max Printing Length | 3810 mm |
| Media Thickness Range | 0.058 mm - 0.25 mm |
| Roll Maximum Outer Diameter | 203 mm |
| Roll Core Diameter | 76 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (17.1 cm) |
| Compliant Standards | EPC Class 1 Generation 2, ISO/IEC 18000-63, RAIN |
| Networking | Print server |
| Connections | 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB - 4 pin USB Type B ¦ 1 x Gigabit LAN - RJ-45 ¦ 2 x USB host - 4 pin USB Type A |
| Included Accessories | Spindle, bi-fold door |
| Features | Clear door |
| Compliant Standards | FCC Class B certified, VCCI, C-Tick, BSMI, EN 61000-3-2, ICES-003, NOM, EN 61000-3-3, EN55024, EN55022 Class B, CCC, IEC 60950-1, KCC, GOST-R, S Mark, cTUVus, UkrSEPRO |
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V |
| Frequency Required | 50/60 Hz |
| Power Factor Correction | Yes |
| ENERGY STAR | Yes |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 85% (non-condensing) |
| Width | 34.145 cm |
| Depth | 50.5 cm |
| Height | 39.568 cm |
| Weight | 26 kg |
