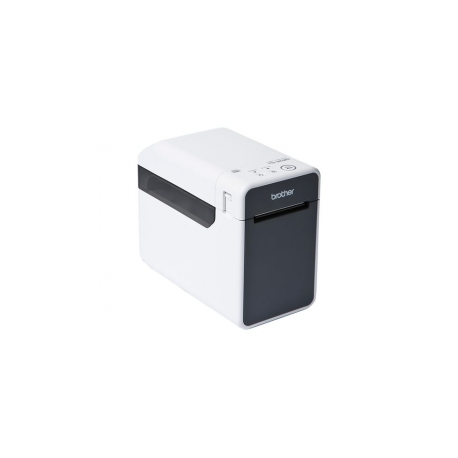

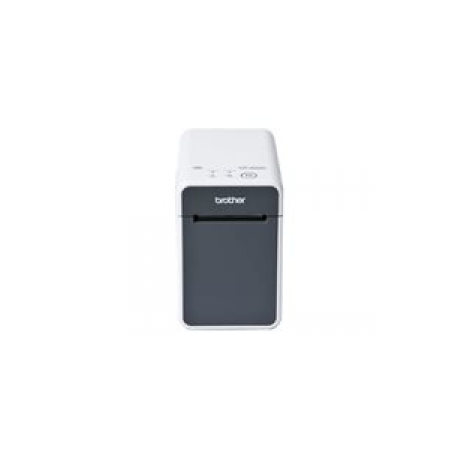

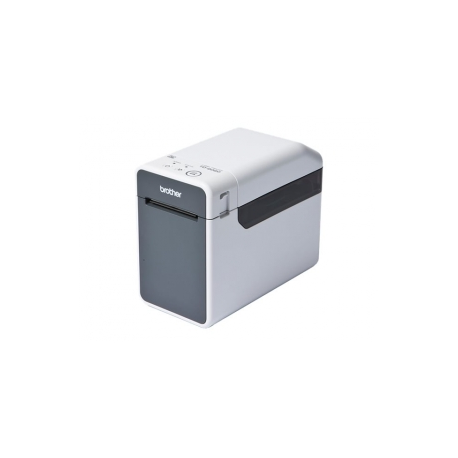

Brother TD-2020 - Label printer - direct thermal - 203 x 203 dpi - up to 152.4 mm / sec - USB 2.0, serial - tear bar

images are for illustrative purposes only

New

Article: 1306045 Intrastat: 84433210 SKU: TD2020ZU1
Pricing and stock details are available to registered users only.
  • High speed printing
  • Small size, but big on performance
  • Ergonomic design
  • Adjustable edge-to-edge media sensor
  • Print from a database
Designed for use in almost any retail work space, the TD-2020 is among the most compact and fastest 2.2-inch wide desktop thermal printers for retail applications. At 203dpi, it prints price, mark-down, product identification, returns and shelf-edge labels quickly at up to 6ips. Also prints tags and receipts for kiosk and POS applications. An innovative drop-in roll, spindle-less design helps make loading easy with existing or standard converted media.



Printer TypeLabel printer - direct thermal - monochrome
Built-in DevicesTear bar
Connectivity TechnologyWired
InterfaceUSB 2.0, serial
Max Resolution (B&W)203 x 203 dpi
Language SimulationEPSON ESC/P, ZPL II
FontsBrussels, Helsinki, Letter Gothic Bold, Gothic
FeaturesBlack Mark sensor, gap sensor, tear bar
RAM Installed (Max)6 MB
Media TypeReceipt paper, die cut labels
Compatible TapesRD tape
Min Media Size (Custom)19 mm
Max Media Size (Custom)63 mm
Media SizesRoll (6.3 cm)
Max Printing Width56 mm
Max Printing Length1 m
Media Thickness Range0.058 mm - 0.279 mm
Roll Maximum Outer Diameter127 mm
Roll Core Diameter25.4 mm
Connections1 x serial - RJ-25 ¦ 1 x USB 2.0 - 4 pin mini-USB Type B
Cables Included1 x USB cable
Power DevicePower adapter - external
Voltage RequiredAC 120/230 V
Frequency Required50/60 Hz
Software IncludedDriver
OS RequiredMicrosoft Windows XP, Microsoft Windows 7, Microsoft Windows Vista, Windows 8
Min Operating Temperature5 °C
Max Operating Temperature40 °C
Humidity Range Operating20 - 80% (non-condensing)
Width11.1 cm
Depth21.5 cm
Height17.2 cm
Weight1.32 kg
