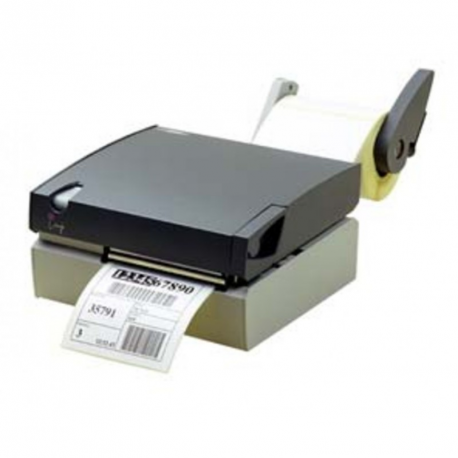

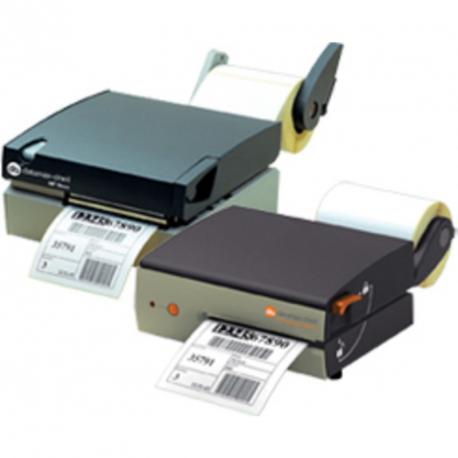

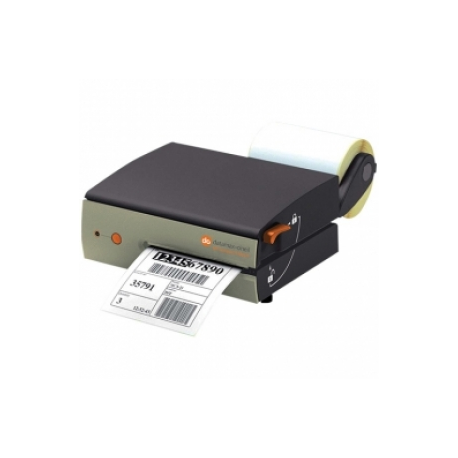

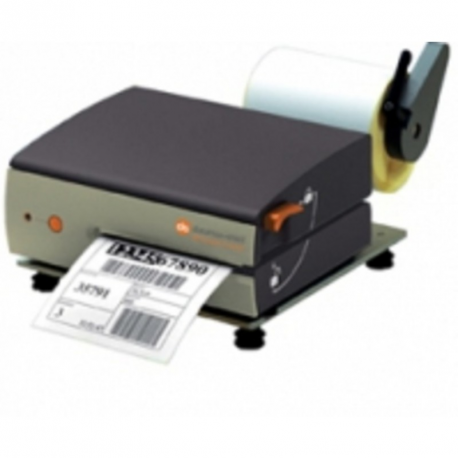

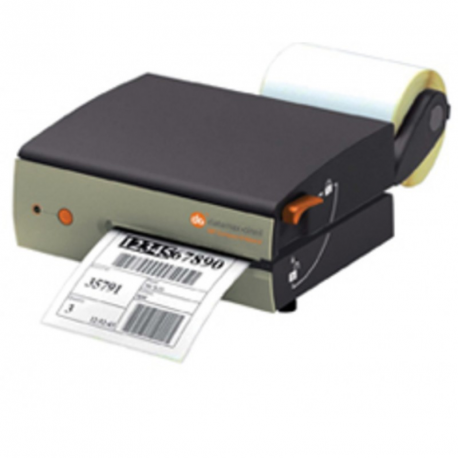

Datamax MP-Series Compact4 Mark III - Label printer - direct thermal - Roll (11.5 cm) - 200 dpi - up to 125 mm / sec - USB, LAN, serial
images are for illustrative purposes only
New
Article: 1337754 Intrastat: 84433210 SKU: XF1-00-03000000
Pricing and stock details are available to registered users only.
| Printer Type | Label printer - direct thermal - monochrome |
| Print Speed | Up to 125 mm/sec - max speed - 200 dpi |
| Built-in Devices | Tear bar |
| Connectivity Technology | Wired |
| Interface | USB, LAN, serial |
| Max Resolution (B&W) | 200 dpi |
| Language Simulation | ZPL, DPL |
| RAM Installed (Max) | 64 MB |
| Flash Memory | 128 MB |
| Media Type | Continuous paper labels, die cut labels, fanfold labels |
| Max Media Size | Roll (11.5 cm) |
| Min Media Size (Custom) | 40 mm x 10 mm |
| Max Media Size (Custom) | 115 mm |
| Media Sizes | Roll (4 - 11.5 cm) |
| Max Printing Width | 115 mm |
| Media Thickness Range | 0.058 mm - 0.18 mm |
| Roll Maximum Outer Diameter | 100 mm |
| Roll Core Diameter | 40 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.5 cm) |
| Networking | Print server |
| Connections | 1 x LAN - RJ-45 ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB |
| Cables Included | 1 x USB cable ¦ 1 x serial cable ¦ 1 x network cable |
| Power Device | Power supply |
| Voltage Required | AC 120/230 V |
| Frequency Required | 50/60 Hz |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Width | 23 cm |
| Depth | 26 cm |
| Height | 10.5 cm |
| Weight | 3.5 kg |
