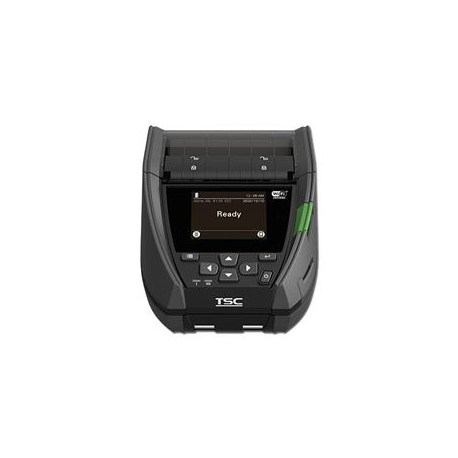

TSC Alpha-30L - Label printer - direct thermal - Roll (8 cm) - 203 dpi - up to 127 mm / sec - USB 2.0, NFC, Bluetooth 5.0
images are for illustrative purposes only
New
Article: 1769078 Intrastat: 84433210 SKU: A30L-A001-1002
Pricing and stock details are available to registered users only.
| Printer Type | Label printer - direct thermal - monochrome |
| Built-in Devices | 2.3 inch LCD display |
| Connectivity Technology | Wireless |
| Interface | USB 2.0, NFC, Bluetooth 5.0 |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | EPSON ESC/POS, ZPL II, EPL2, Comtec Printer Control Language (CPCL), TSPL-EZC |
| Features | Realtime clock, transmissive media sensor, reflective media sensor, open head sensor |
| Fonts Included | 8 x bitmapped ¦ 1 x scalable |
| Barcodes | Code 93, Industrial 2 of 5, Code 39, Code 49, GS1 DataBar, QR code, MaxiCode, Aztec code, Telepen, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 11, Interleaved 2 of 5, Postnet, PDF417, PLANET, TLC39, China Post, Codablock F, Plessey, EAN-14, Code 128B, Code 128C, Code 128A, ITF-14, Standard 2 of 5, EAN-128, EAN-8, EAN-13, MSI, UPC-2, UPC-5, Deutsche Post Identcode, Deutsche Post Leitcode, GS1 DataMatrix |
| RAM Installed (Max) | 128 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | 128 MB |
| Type | Card reader |
| Supported Flash Memory Cards | microSD |
| Media Type | Linerless labels, receipt labels, continuous labels, die cut labels, fanfold labels, black mark labels |
| Max Media Size | Roll (8 cm) |
| Min Media Size (Custom) | 12.7 mm |
| Media Sizes | Roll (2.54 - 8 cm) |
| Max Printing Width | 72 mm |
| Max Printing Length | 2794 mm |
| Media Thickness Range | 0.06 mm - 0.16 mm |
| Roll Core Diameter | 19.1 mm, 12.7 mm |
| Media Feeders | 1 x manual - Roll (8 cm) |
| Connections | 1 x USB 2.0 - 24 pin USB-C |
| Included Accessories | Belt clip |
| Features | Water-resistant, dust-resistant |
| Compliant Standards | IP54, MFI |
| Power Device | Power adapter - external |
| Type | Lithium Ion |
| Capacity | 3030 mAh |
| Service & Support | Limited warranty - 2 years ¦ Limited warranty - printhead - 1 year or 1,000,000 inches ¦ Limited warranty - platen - 1 year or 2,000,000 inches ¦ Limited warranty - battery - 1 year |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Width | 11.7 cm |
| Depth | 17.3 cm |
| Height | 7.9 cm |
| Weight | 745 g |
