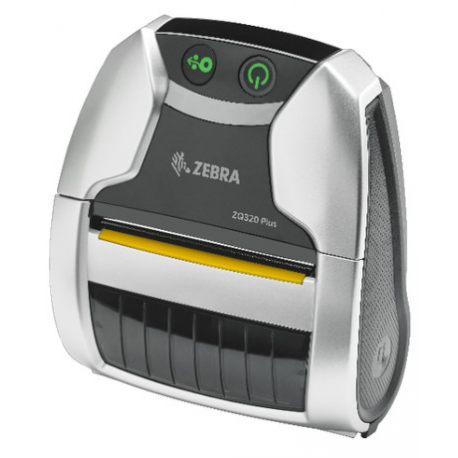

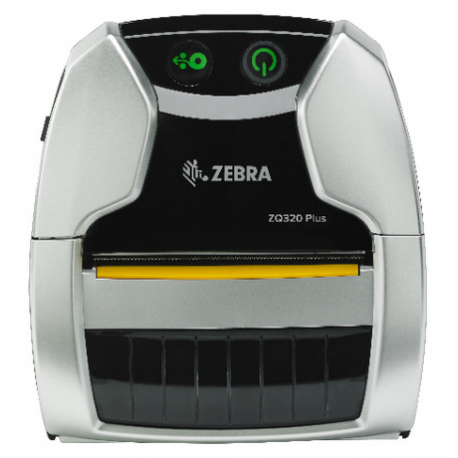

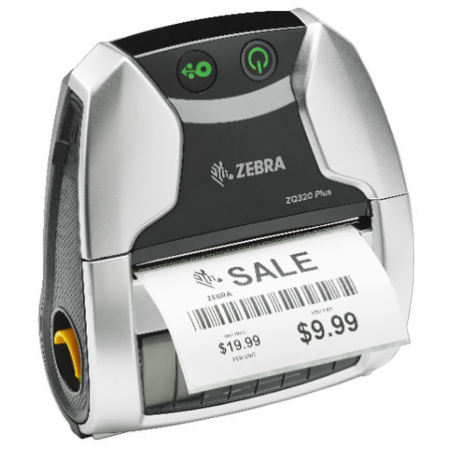

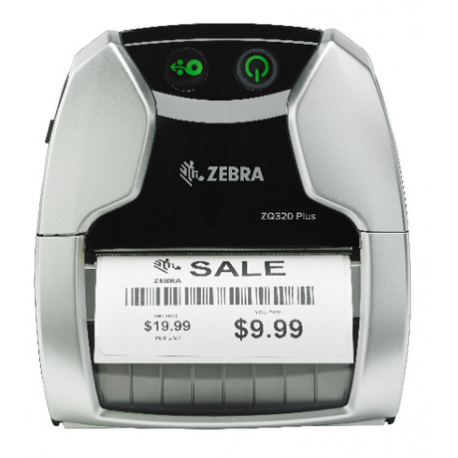

Zebra ZQ320 Plus - Receipt printer - direct thermal - Roll (8 cm) - 203 dpi - up to 100 mm/sec - USB 2.0, NFC, Wi-Fi(ac), Bluetooth 4.2 LE - tear bar - silver
images are for illustrative purposes only
New
Article: 3013525 Intrastat: 84433210 SKU: ZQ32-A0W03RE-00
Pricing and stock details are available to registered users only.
| Printer Type | Receipt printer - direct thermal - monochrome |
| Enclosure Colour | Silver |
| Print Speed | Up to 100 mm/sec - max speed |
| Connectivity Technology | Wireless |
| Interface | USB 2.0, NFC, Wi-Fi(ac), Bluetooth 4.2 LE |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | ZPL, Comtec Printer Control Language (CPCL) |
| Fonts | CG Triumvirate Bold Condensed |
| Features | Tear bar, Black Mark sensor, label detection sensor |
| Fonts Included | 25 x bitmapped 1 x scalable |
| Barcodes | Code 93, Code 39, NW-7, Code 128, EAN-13, EAN-8, Interleaved 2 of 5, UCC/EAN-128, UPC-A, UPC-E, Aztec code, Data Matrix, GS1 DataBar, QR code, MaxiCode, MicroPDF417, PDF417, TLC39, Codabar, RSS |
| RAM Installed (Max) | 128 MB |
| Flash Memory | 256 MB |
| Media Type | Receipt paper, linerless labels |
| Max Media Size | Roll (8 cm) |
| Min Media Size (Custom) | 12.5 mm |
| Max Media Size (Custom) | 80 mm |
| Media Sizes | Roll (8 cm) |
| Max Printing Width | 72 mm |
| Media Thickness Range | 0.05334 mm - 0.16 mm |
| Roll Maximum Outer Diameter | 40 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (8 cm) |
| Networking | Print server |
| Remote Management Protocol | SNMP, Telnet, HTTP |
| Security Protocols & Features | LEAP, WEP, WPA, WPA2, 802.1x, TKIP, AES, EAP-TTLS, EAP-TLS, PEAP, EAP-FAST |
| Connections | 1 x USB 2.0 - 24 pin USB-C |

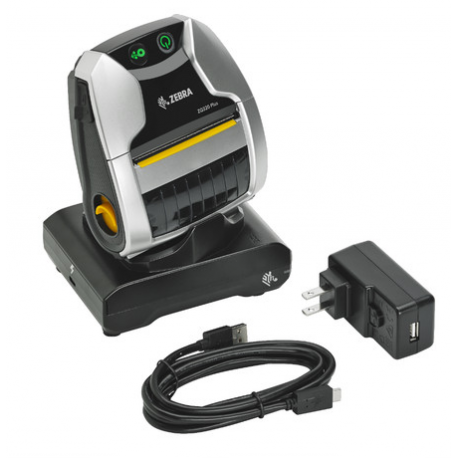

| Included Accessories | Belt clip |
| Cables Included | 1 x USB-C to USB-A cable |
| Features | For indoor use |
| Compliant Standards | IP54, MFI, MIL-STD-810, FCC Part 15, EN55022 Class B, IC, TUV, IEC 60950, VCCI, C-Tick, NOM, PSE Mark, S Mark, CCC |
| Type | Lithium Ion |
| Required Qty | 1 |
| Included | 1 |
| Capacity | 2280 mAh |
| OS Required | Microsoft Pocket PC, Microsoft Windows Mobile for Pocket PC 2002, Microsoft Windows CE .NET, Microsoft Windows Mobile for Pocket PC 2003 Second Edition, Microsoft Windows NT / 2000 / XP, Android 2.3, Apple iOS 5, Android 4.0, Android 4.1 (Jelly Bean), Apple iOS 6, Apple iOS 7, Apple iOS 10 |
| Service & Support | Limited warranty - 1 year |
| Min Operating Temperature | -15 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Width | 11.77 cm |
| Depth | 13 cm |
| Height | 4.95 cm |
| Weight | 430 g |
