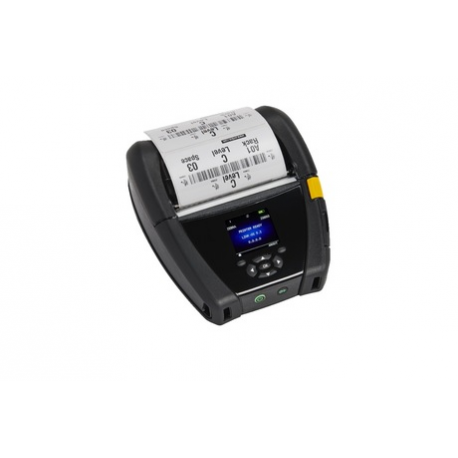

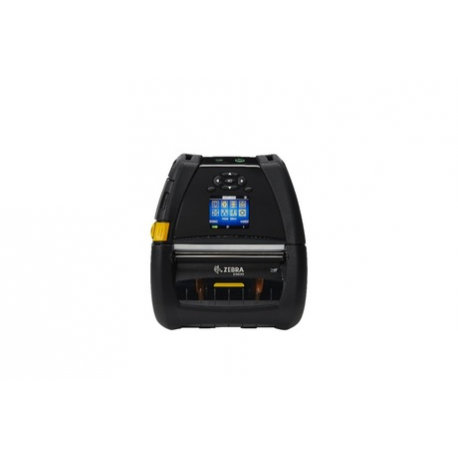

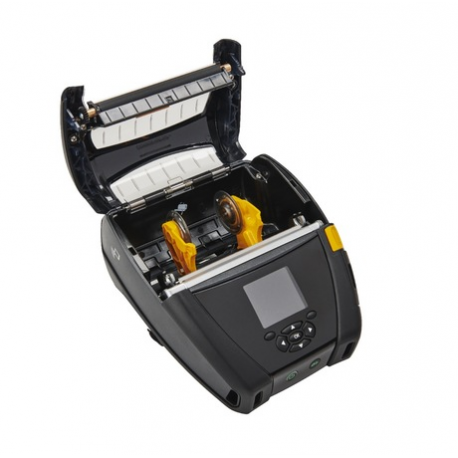

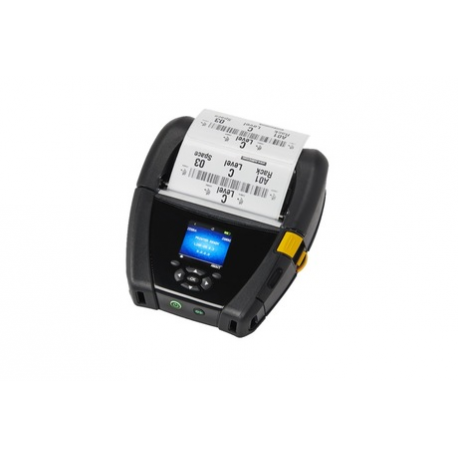

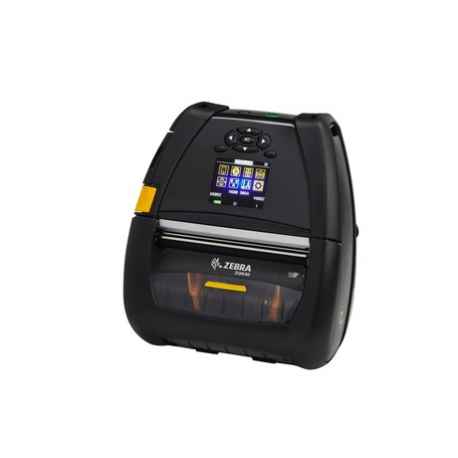

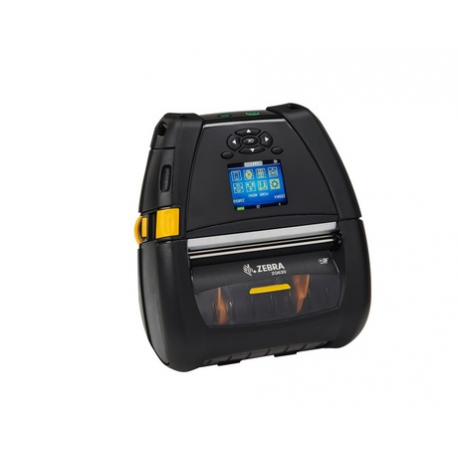

Zebra ZQ600 Series ZQ630 Plus - Label printer - direct thermal - Roll (11.2 cm) - 203 dpi - up to 115 mm / sec - USB, NFC, RS232C, Wi-Fi(ac), Bluetooth 4.2 LE
Zebra ZQ600 Series ZQ630 Plus - Label printer - direct thermal - Roll (11.2 cm) - 203 dpi - up to 115 mm / sec - USB, NFC, RS232C, Wi-Fi(ac), Bluetooth 4.2 LE
Manufacturer
•ZEBRA
Reference
•ZQ63-RUWA004-00
Article
•3046321
Intrastat
•84433210
Shipping weight
•1.1 kg
Printer Type
Label printer - direct thermal - monochrome
Print Speed
Up to 115 mm/sec - max speed
Built-in Devices
LCD display
Connectivity Technology
Wireless
Interface
USB, NFC, RS232C, Wi-Fi(ac), Bluetooth 4.2 LE
Max Resolution (B&W)
203 dpi
Language Simulation
ZPL, EPL, Comtec Printer Control Language (CPCL), ZBI 2.x
Fonts
CG Triumvirate Bold Condensed
Features
Black Mark sensor, gap sensor, label present sensor
Fonts Included
25 x bitmapped ¦ 1 x scalable
Barcodes
Code 93, Code 39, UCC/EAN-128, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, FIM, TLC39, Plessey, EAN-8, EAN-13, MSI, RSS
Printer Features
XML-enabled printing
Processor
400 MHz
RAM Installed (Max)
256 MB
Flash Memory
512 MB
Media Type
Receipt paper, linerless labels, RFID labels, tag labels, die cut labels, black mark labels, gap
Max Media Size
Roll (11.2 cm)
Min Media Size (Custom)
51 mm x 12.7 mm
Max Media Size (Custom)
112 mm x 813 mm
Media Sizes
Roll (5.1 - 11.2 cm)
Max Printing Width
104 mm
Max Printing Length
813 mm
Media Thickness Range
0.05842 mm - 0.1524 mm
Roll Maximum Outer Diameter
66 mm
Roll Core Diameter
19 mm, 34.9 mm
Media Feeders
1 x manual - 1 roll - Roll (11.2 cm)
Networking
Print server
Remote Management Protocol
SNMP, NTP
Security Protocols & Features
LEAP, WEP, WPA, WPA2, 802.1x, TKIP, AES, EAP-TTLS, EAP-TLS, PEAP, EAP-FAST
Connections
1 x USB - mini-USB Type B ¦ 1 x RS-232C
Included Accessories
Belt clip
Features
Water-resistant, dust-resistant
Compliant Standards
CSA, TUV, EN 60950, EN55024, EN55022 Class B, FCC Part 15 B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, IP54, MFI, VCCI Class B, IEEE 802.11r
Type
Lithium Ion
Included
1
Capacity
6600 mAh
Software Included
Link-OS
ENERGY STAR
Yes
Service & Support
Limited warranty - parts and labour - 1 year
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 90% (non-condensing)
Width
16.51 cm
Depth
18.67 cm
Height
8.25 cm
Weight
1.1 kg
