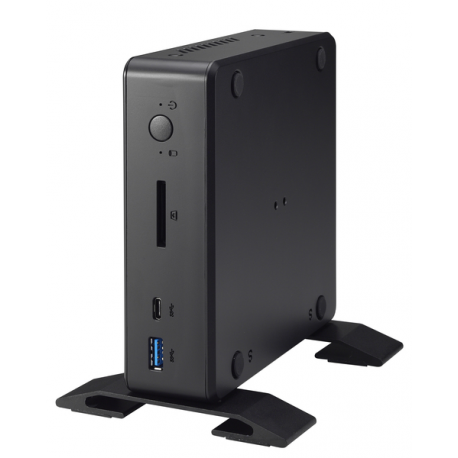

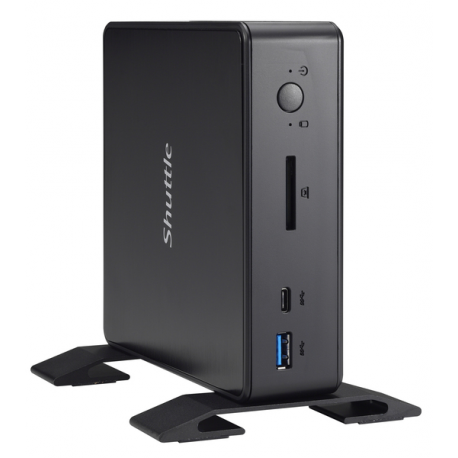

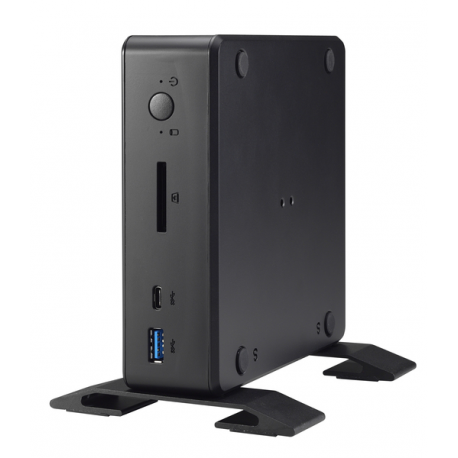

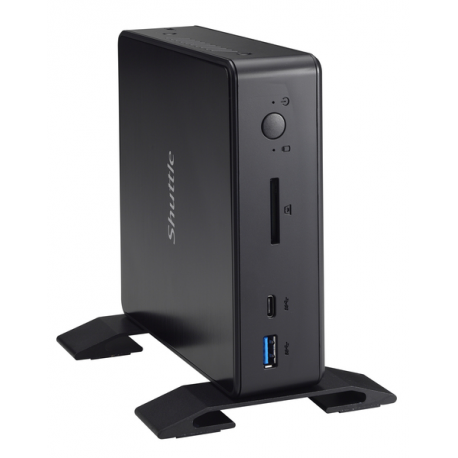

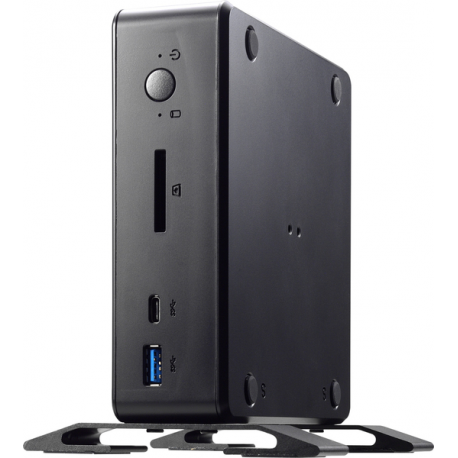

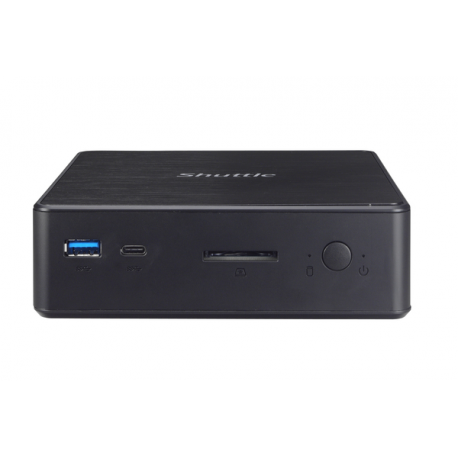

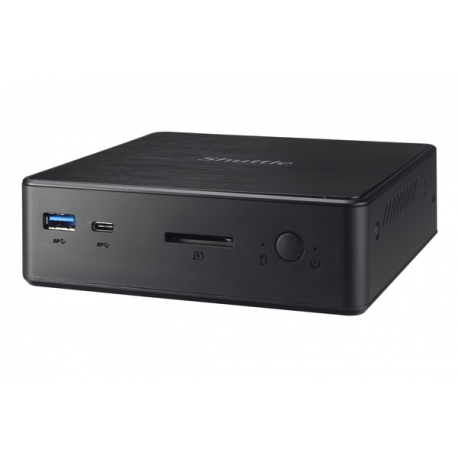

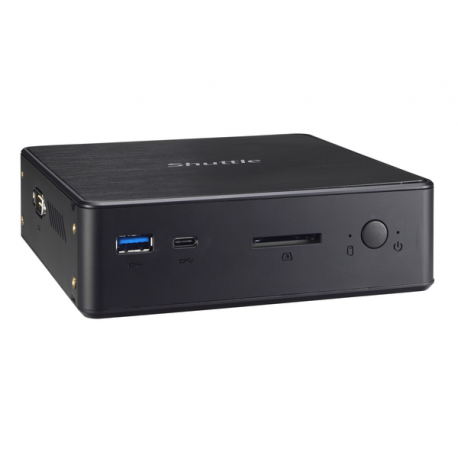

Shuttle XPC nano NC10U3 - Barebone - mini PC - 1 x Core i3 8145U / 2.1 GHz ULV - RAM 0 GB - UHD Graphics 620 - GigE - WLAN: 802.11b / g / n - black
Prece var atšķirties no attēlā redzamās, vai attēlā var būt aksesuāri, kas neietilpst preces komplektācijā.
Jaunums
Artikuls: 3144978 Intrastat: 84718000 Ražotāja kods: PFB-NC10U301
Cenas un noliktavu atlikumi ir pieejami tikai reģistrētiem lietotājiem.
| Type | PC barebone |
| Product Form Factor | Mini PC |
| Embedded Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
| Colour | Black |
| CPU | Intel Core i3 (8th Gen) 8145U |
| Clock Speed | 2.1 GHz |
| Max Turbo Speed | 3.9 GHz |
| Number of Cores | Dual-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Power Efficiency | Ultra Low Voltage (ULV) |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache |
| Installed Size | L3 Cache - 4 MB |
| Cache Per Processor | 4 MB |
| Installed Size | 0 GB / 32 GB (max) |
| Technology | DDR4 SDRAM - non-ECC |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Features | Unbuffered, dual channel memory architecture |
| Type | No HDD |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 1 |
| Type | No optical drive |
| Type | Card reader |
| Supported Flash Memory Cards | SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| Monitor Type | None. |
| Graphics Processor | Intel UHD Graphics 620 |
| Video Interfaces | HDMI, DisplayPort |
| Max Monitors Supported | 2 |
| Compliant Standards | High Definition Audio |
| Ethernet Controller | Intel I211 |
| Wireless LAN Supported | Yes |
| Wireless NIC | Realtek RTL8188EE |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Features | Wake on LAN (WoL), PXE support |
| Bays | 1 (total) / 1 (free) x internal 2.5" x 1/8H |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2242/2260/2280 (Key B-M) ¦ 1 (total) / 0 (free) x M.2 Card - 2230 (Key A-E) |

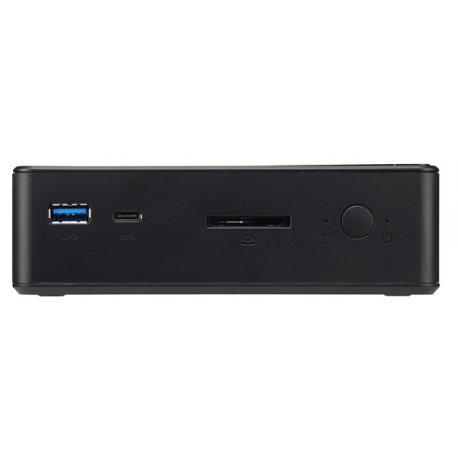

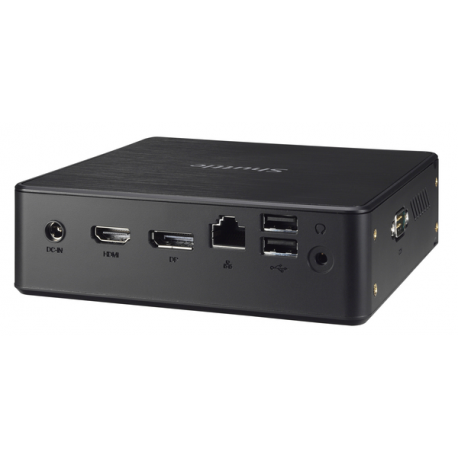

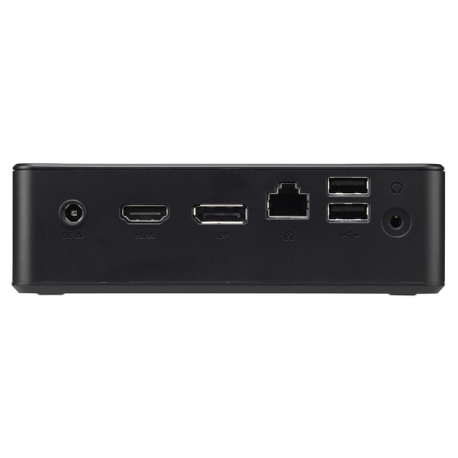

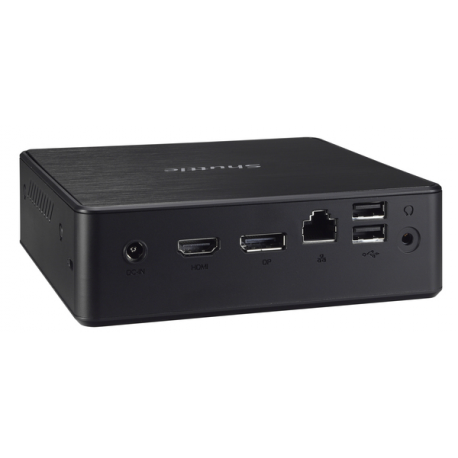

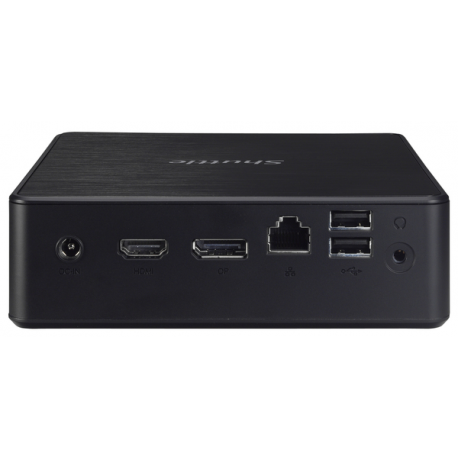

| Interfaces | 1 x USB 3.1 Gen 2 (1 in front) ¦ 1 x USB-C 3.1 Gen 2 (1 in front) ¦ 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x DisplayPort ¦ 1 x headphones/microphone ¦ 2 x USB 2.0 ¦ 1 x serial |

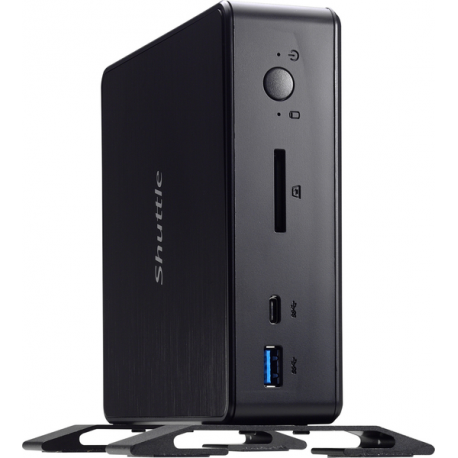

| Included Accessories | Horizontal feet, VESA mounting kit, 2.5" HDD bracket, screw set |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Compliant Standards | VCCI, BSMI, CB, FCC, RoHS, ETL, ErP Ready, RCM, ErP 2009/125/EC, EMC 2014/30/EU, LVD 2014/35/EU, RED, RED 2014/53/EU |
| Device Type | Power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 65 Watt |
| OS Provided | No operating system |
| Software | Drivers & Utilities |
| ENERGY STAR Certified | Yes |
| Width | 14.2 cm |
| Depth | 14.2 cm |
| Height | 4.2 cm |
| Weight | 400 g |
| Shipping Weight | 1.2 kg |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
