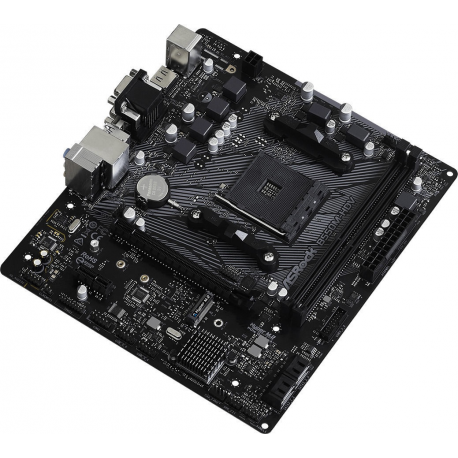

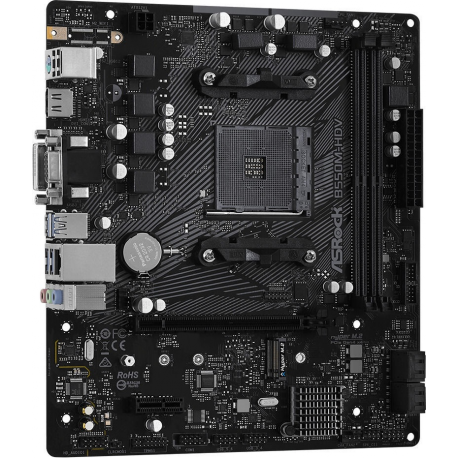

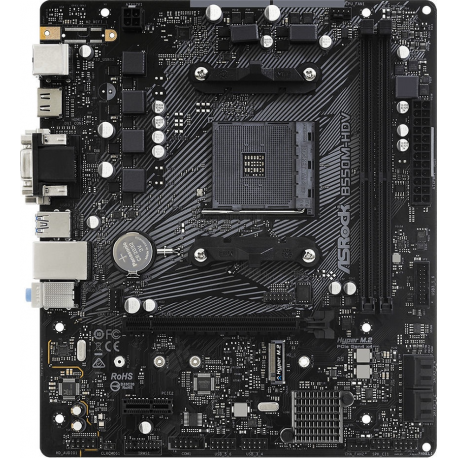

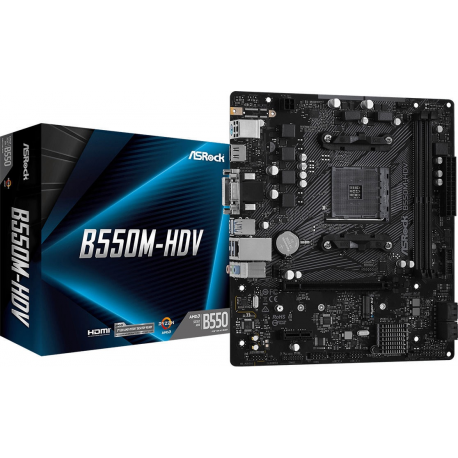

ASRock B550M-HDV - Motherboard - micro ATX - Socket AM4 - AMD B550 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)

  • Mainboard|ASROCK|AMD B550|SAM4|MicroATX|1xPCI-Express 3.0 1x|1xM.2|1xPCI-Express 4.0 16x|Memory DDR4|Memory slots 2|1x15pin D-su
  • Mainboard|ASROCK|AMD B550|SAM4|MicroATX|1xPCI-Express 3.0 1x|1xM.2|1xPCI-Express 4.0 16x|Memory DDR4|Memory slots 2|1x15pin D-su
  • Mainboard|ASROCK|AMD B550|SAM4|MicroATX|1xPCI-Express 3.0 1x|1xM.2|1xPCI-Express 4.0 16x|Memory DDR4|Memory slots 2|1x15pin D-su
  • Mainboard|ASROCK|AMD B550|SAM4|MicroATX|1xPCI-Express 3.0 1x|1xM.2|1xPCI-Express 4.0 16x|Memory DDR4|Memory slots 2|1x15pin D-su
  • Mainboard|ASROCK|AMD B550|SAM4|MicroATX|1xPCI-Express 3.0 1x|1xM.2|1xPCI-Express 4.0 16x|Memory DDR4|Memory slots 2|1x15pin D-su
Prece var atšķirties no attēlā redzamās, vai attēlā var būt aksesuāri, kas neietilpst preces komplektācijā.

Jaunums

Artikuls: 1761289 Intrastat: 84717020 Ražotāja kods: B550M-HDV
Cenas un noliktavu atlikumi ir pieejami tikai reģistrētiem lietotājiem.
 Salīdzināt
Product TypeMotherboard - micro ATX
Chipset TypeAMD B550
Processor SocketSocket AM4
Max Processors Qty1
Compatible ProcessorsRyzen (supports 3rd Generation Ryzen and New Generation Ryzen with Radeon Graphics)
Max Size64 GB
TechnologyDDR4
Bus Clock2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 3200 MHz, 4666 MHz (O.C.), 4733 MHz (O.C.), 4466 MHz (O.C.)
Supported RAM Integrity CheckNon-ECC, ECC (operate in non-ECC mode)
Registered or BufferedUnbuffered
FeaturesDual channel memory architecture, AMD Memory Profile (AMP), supported ECC modules operate in non-ECC mode
Max Allocated RAM Size2 GB
TypeHD Audio (8-channel)
Audio CodecRealtek ALC887
Compliant StandardsHigh Definition Audio
Network ControllerRealtek RTL8111H
Network InterfacesGigabit Ethernet
Expansion Slots1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (Ryzen series CPUs Matisse); PCIe 3.0 x16 mode (Ryzen series APUs)) ¦ 1 x PCIe 3.0 x1
Storage InterfacesSATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2

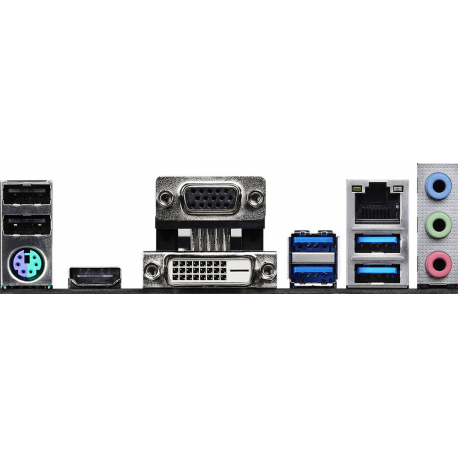

Interfaces1 x PS/2 keyboard / mouse ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 2 x USB 2.0 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack
Internal Interfaces4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header
Power Connectors4-pin ATX12V connector, 24-pin main power connector
BIOS TypeAMI
BIOS FeaturesJumperFree, SMBIOS 2.3 support, UEFI BIOS, ACPI 5.1 support
Hardware MonitoringCPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage
Sleep / Wake UpWake on LAN (WOL)
Hardware FeaturesASRock Instant Flash, HDCP compliant, 15µ Gold Contact, 6 Phase Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, Sapphire Black PCB, XXL Aluminum Alloy Heatsink, ASRock Live Update, Premium 50A Power Choke, ASRock Hyper M.2
Included AccessoriesI/O back plate, 1 x M.2 screw
Cables Included2 x Serial ATA cable
Software IncludedDrivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN
Compliant StandardsPlug and Play, FCC, EuP Ready, ErP Ready, HDCP 2.3
Width23 cm
Depth20.1 cm
