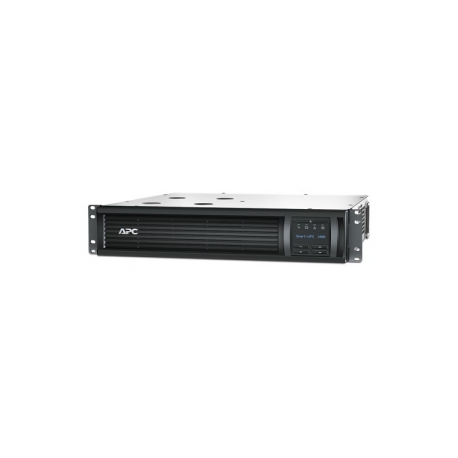

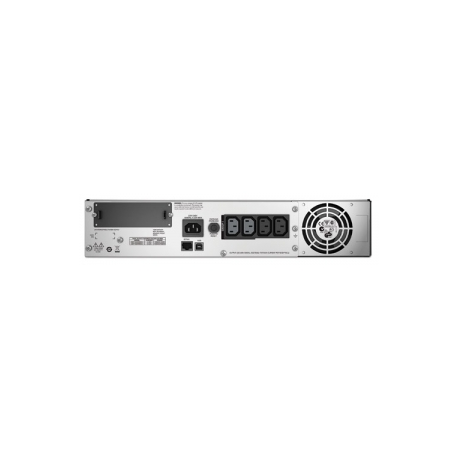

APC Smart-UPS 1000 LCD - UPS (rack-mountable) - AC 230 V - 700 Watt - 1000 VA - RS-232, USB - output connectors: 4 - 2U - for P / N: AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A
APC Smart-UPS 1000 LCD - UPS (rack-mountable) - AC 230 V - 700 Watt - 1000 VA - RS-232, USB - output connectors: 4 - 2U - for P / N: AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A
Ražotājs
•SCHNEIDER
Ražotāja kods
•SMT1000RMI2U
Artikuls
•74585
Intrastat
•84734080
Pakas svars
•31.5 kg
<ul><li>Green mode</li><li>Energy meter</li><li>Intuitive LCD interface</li><li>Single switched outlet group</li><li>Pure sine wave output on battery</li><li>Cold-start capable</li><li>SmartSlot</li><li>Temperature-compensated battery charging</li><li>Intelligent battery management</li><li>Power conditioning</li><li>Automatic restart of loads after UPS shutdown</li><li>Disconnected battery notification</li><li>Network manageable</li><li>Audible alarms</li><li>Serial connectivity</li><li>Hot-swappable batteries</li><li>Predictive failure notification</li><li>Resettable circuit breakers</li><li>Battery failure notification</li></ul>
Green mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. Energy meter provides actual kilowatt hours of usage for energy conscious users. Intuitive LCD interface provides clear and accurate information with the ability to configure the UPS locally with easy to use navigation keys. Single switched outlet group may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on / off and non-critical load shedding. Pure sine wave output on battery simulates utility power to provide a high degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. Cold-start capable provides temporary battery power when the utility power is out.<br /><br /><p> </p>
Device Type
UPS - rack-mountable
Height (Rack Units)
2U
UPS Technology
Line interactive
Input Voltage
AC 230 V
Input Voltage Range
AC 160 - 280 V
Input Voltage Range (Adjustable)
AC 151 - 302 V
Frequency Provided
57 - 63 Hz
Frequency Required
50/60 Hz
Input Connectors
Power IEC 60320 C14
Power Output Connectors Details
4 x power IEC 60320 C13
Output Voltage
AC 220/230/240 V 57 - 63 Hz
Power Capacity
700 Watt / 1000 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Surge Energy Rating
459 Joules
Circuit Protection
Circuit breaker
Technology
Lead Acid
Run Time (Up To)
8.7 min at full load ¦ 31.3 min at half load
Recharge Time
3 hours
Remote Management Interface
RS-232, USB
Interfaces
1 x USB ¦ 1 x serial
Expansion Slots
1 (total) / 1 (free) x SmartSlot
Cables Included
Serial cable ¦ USB cable
Rack Mounting Kit
Included
Features
Audible alarm, LCD display, Automatic Voltage Regulation (AVR), LED indicators
Compliant Standards
C-Tick, GOST, UL 1449, VDE, EN 50091-2, RoHS Exemption 7b, EN 50091-1, REACH
Software Included
Drivers & Utilities
Service & Support
Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95%
Sound Emission
45 dBA
Width
48 cm
Depth
45.7 cm
Height
8.9 cm
Weight
28.2 kg
Shipping Width
59.4 cm
Shipping Depth
60.3 cm
Shipping Height
25.1 cm
Shipping Weight
31.5 kg
Designed For
P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, ACF600, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR100, AR100HD, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W
