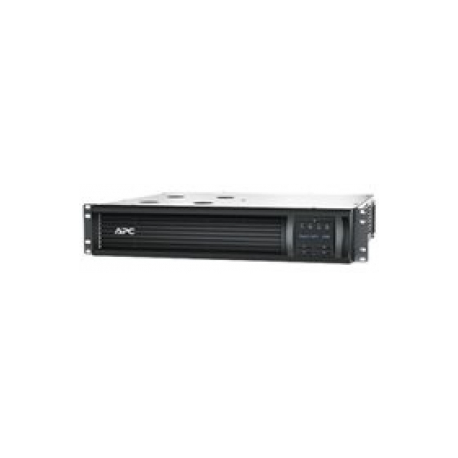

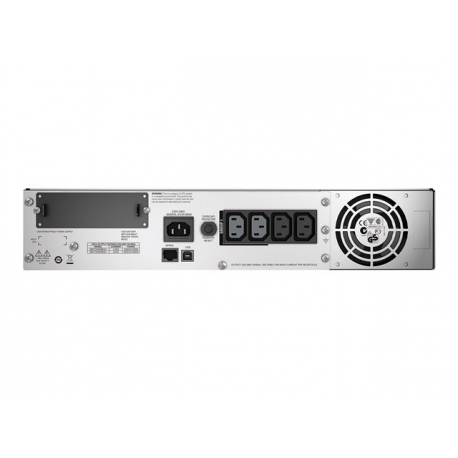

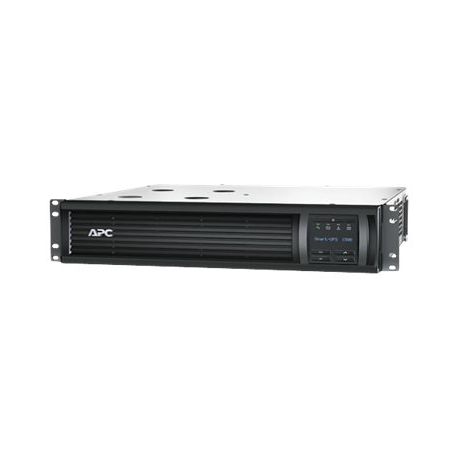

APC Smart-UPS 1500 LCD - UPS (rack-mountable) - AC 230 V - 1000 Watt - 1500 VA - RS-232, USB - output connectors: 4 - 2U - black - for P / N: AR106SH6, AR109SH6, AR112SH6, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP
APC Smart-UPS 1500 LCD - UPS (rack-mountable) - AC 230 V - 1000 Watt - 1500 VA - RS-232, USB - output connectors: 4 - 2U - black - for P / N: AR106SH6, AR109SH6, AR112SH6, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP
Ražotājs
•APC
Ražotāja kods
•SMT1500R2I-6W
Artikuls
•1409056
Intrastat
•84734080
Pakas svars
•31.9 kg
<ul><li>High online efficiency</li><li>Green mode</li><li>Energy meter</li><li>Predictive replace battery date</li><li>Intuitive LCD interface</li><li>Single switched outlet group</li><li>Pure sine wave output on battery</li><li>Cold-start capable</li><li>Temperature-compensated battery charging</li><li>Intelligent battery management</li><li>Power conditioning</li><li>Automatic restart of loads after UPS shutdown</li><li>Disconnected battery notification</li><li>Network manageable</li><li>Serial connectivity</li><li>Disconnected battery notification</li><li>Hot-swappable batteries</li><li>Predictive failure notification</li><li>Resettable circuit breakers</li><li>Adjustable voltage sensitivity</li></ul>
High online efficiency reduces utlility costs, generates less heat. Green mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. Energy meter provides actual kilowatt hours of usage for energy conscious users. Predictive replace battery date dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. Intuitive LCD interface provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.<br /><br /><p> </p>
Device Type
UPS - rack-mountable
Height (Rack Units)
2U
Colour
Black
UPS Technology
Line interactive
Input Voltage
AC 230 V
Input Voltage Range
AC 160 - 286 V
Input Voltage Range (Adjustable)
AC 151 - 302 V
Frequency Provided
47 - 53 / 57 - 63 Hz
Frequency Required
50/60 Hz
Input Connectors
1 x power IEC 60320 C14
Power Output Connectors Details
4 x power IEC 60320 C13
Output Voltage
AC 220/230/240 V ± 5% - 47 - 53 / 57 - 63 Hz
Power Capacity
1000 Watt / 1500 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Surge Energy Rating
459 Joules
Circuit Protection
Circuit breaker
Technology
Lead Acid
Run Time (Up To)
7 min at full load ¦ 26 min at half load
Recharge Time
3 hours
Remote Management Interface
RS-232, USB
Interfaces
1 x USB ¦ 1 x serial
Expansion Slots
1 SmartSlot
Cables Included
Serial cable - external ¦ USB cable - external
Rack Mounting Kit
Included
Features
Audible alarm, LCD display
Compliant Standards
TUV, C-Tick, VDE, EN 50091-2, RoHS, EN 50091-1, REACH
Software Included
APC PowerChute Business Edition
Service & Support
Limited warranty - 6 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95%
Sound Emission
46 dBA
Width
43.2 cm
Depth
45.7 cm
Height
8.9 cm
Weight
28.64 kg
Shipping Width
59.4 cm
Shipping Depth
60.3 cm
Shipping Height
25.1 cm
Shipping Weight
31.91 kg
Designed For
P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, ACF600, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR100, AR100HD, AR106SH6, AR109SH6, AR112SH6, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3003, AR3003SP, AR3006, AR3006SP, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3103, AR3103SP, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3106, AR3106SP, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3
