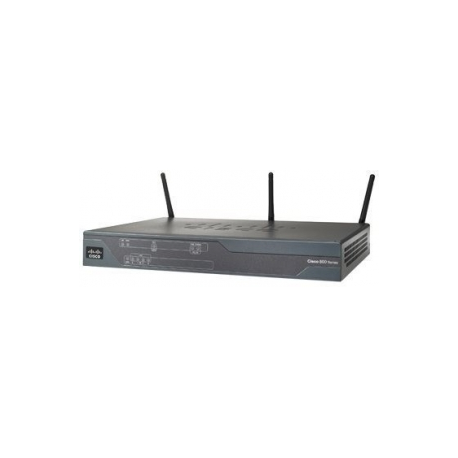

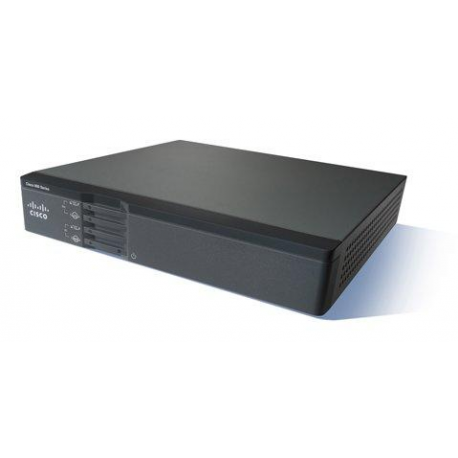

Cisco 867VAE - Router - DSL modem - 4-port switch - GigE - WAN ports: 2 - rack-mountable
Prece var atšķirties no attēlā redzamās, vai attēlā var būt aksesuāri, kas neietilpst preces komplektācijā.
Jaunums
Artikuls: 1346733 Intrastat: 85176200 Ražotāja kods: C867VAE-K9
Cenas un noliktavu atlikumi ir pieejami tikai reģistrētiem lietotājiem.
| Device Type | Router - 4-port switch (integrated) |
| Enclosure Type | Desktop, rack-mountable - 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Capacity | IPSec VPN tunnels: 10 |
| Network / Transport Protocol | IPSec, PPPoE, PPPoA, DHCP, DNS |
| Routing Protocol | RIP-1, RIP-2 |
| Remote Management Protocol | SNMP 3, HTTP, HTTPS, SSH |
| Features | Firewall protection, auto-uplink (auto MDI/MDI-X), IPv6 support, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), DHCP server, DNS proxy, DHCP relay, Web Services Management Agent (WSMA), NetFlow, DHCP client |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ah, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN55022 Class B, EN 61000-4-3, EN 61000-4-6, AS/NZS 3548, FCC CFR47 Part 15, VCCI V-3 |
| RAM | 256 MB (installed) / 256 MB (max) |
| Flash Memory | 64 MB |
| Framing Format | ANSI T1.413 |
| Type | DSL modem |
| Digital Signaling Protocol | ADSL2+, VDSL2 |
| Protocols & Specifications | ITU G.994.1 (G.hs), ITU G.992.3 Annex A, ITU G.992.3 Annex L, ITU G.992.5 Annex M, ITU G.993.2, ITU G.992.3 Annex M, ITU G.992.5 Annex A, ITU G.992.5 Annex B, ITU G.992.3 Annex B |
| Interfaces | LAN: 4 x 10Base-T/100Base-TX - RJ-45 ¦ Management: 1 x console - RJ-45 ¦ WAN: 1 x ADSL2+ ¦ USB: 1 x 4 pin USB Type A ¦ WAN: 1 x VDSL2 ¦ LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 |
| Power Device | External power adapter - 60 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| OS Provided | Cisco IOS Advanced Security |
| Width | 20.9 cm |
| Depth | 19.8 cm |
| Height | 3.9 cm |
| Weight | 2.5 kg |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 85% (non-condensing) |
