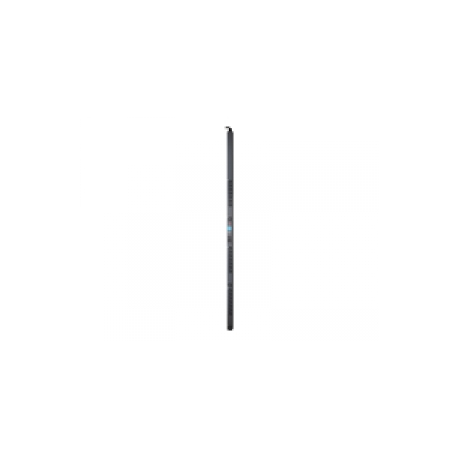

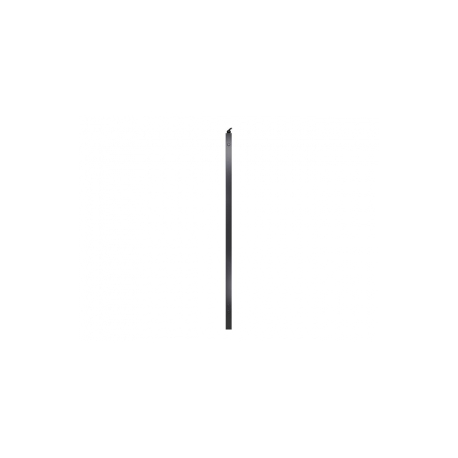

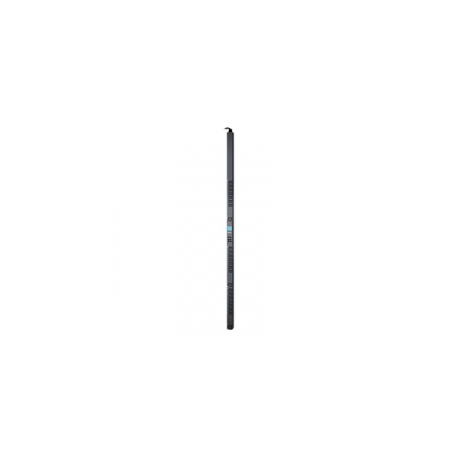

APC Metered-by-Outlet with Switching Rack PDU ZeroU 2G - Power distribution unit (rack-mountable) - AC 400 V - 11 kW - 3-phase - Ethernet 10 / 100 - output connectors: 24 - 0U - black - for P / N: SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC, SRT5KRMXLW-TW
APC Metered-by-Outlet with Switching Rack PDU ZeroU 2G - Power distribution unit (rack-mountable) - AC 400 V - 11 kW - 3-phase - Ethernet 10 / 100 - output connectors: 24 - 0U - black - for P / N: SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC, SRT5KRMXLW-TW
Manufacturer
•SCHNEIDER
Reference
•AP8681
Article
•630816
Intrastat
•85044090
Shipping weight
•10.48 kg
Device Type
Power distribution unit - rack-mountable
Height (Rack Units)
0U
Colour
Black
Input Voltage
AC 400 V
Input Wiring
3-phase
Frequency Required
50/60 Hz
Input Connectors
Power IEC 60309 16A, power IEC 60309 20A
Power Output Connectors Details
21 x power IEC 60320 C13 ¦ 3 x power IEC 60320 C19
Output Voltage
AC 230 V
Max Electric Current
16 A
Power Capacity
11 kW
Remote Management Interface
Ethernet 10/100
Remote Management Protocol
SNMP, Telnet, HTTP, HTTPS, SSH, CLI
Interfaces
1 x LAN - RJ-45 ¦ 1 x management - RJ-12 ¦ 1 x USB - 4 pin USB Type A
Cables Included
Power cable 1.83 m ¦ Serial cable - external
Rack Mounting Kit
Included
Features
LED display, voltage monitoring, firmware upgradable
Compliant Standards
UL, EN 61000-3-2, ICES-003, VDE, EN 61000-3-3, EN55024, EN55022 Class A, RoHS, FCC Part 15 A, GOST-R, REACH
Service & Support
Limited warranty - 2 years
Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 95%
Width
5.6 cm
Depth
5.1 cm
Height
182.9 cm
Weight
8.23 kg
Shipping Width
16.2 cm
Shipping Depth
11.7 cm
Shipping Height
203.8 cm
Shipping Weight
10.5 kg
Designed For
P/N: AP7950B, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3100G, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3105, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140G, AR3140W, AR3150SP, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3180G, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3357X674, NBES0302, NBPD0160A, NBPD0171, NBPD0172, NBPD0180, NBWL0355A, NBWL0356A, SMC1000, SMC1000-2U, SMC1000-BR, SMC1000I, SMC1000I-2U, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC1500, SMC15002U-BR, SMC1500-BR, SMC1500I, SMC1500I-2U, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-BR, SMC1500IC, SM
