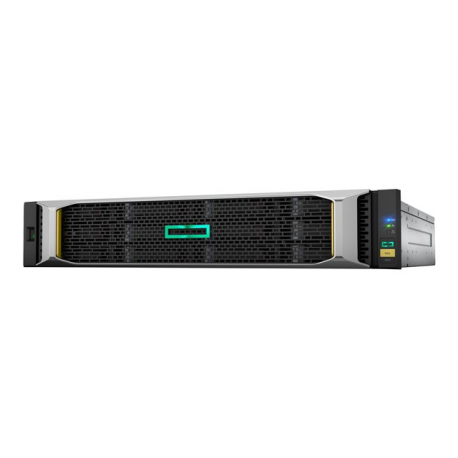

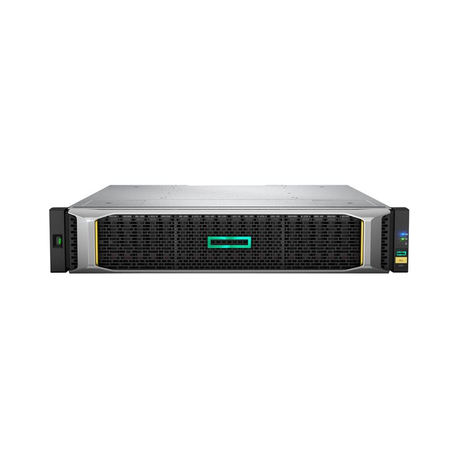

HPE Modular Smart Array 2050 SAN Dual Controller LFF Storage - Hard drive array - 12 bays (SAS-3) - SAS 12Gb / s (external) - rack-mountable - 2U
HPE Modular Smart Array 2050 SAN Dual Controller LFF Storage - Hard drive array - 12 bays (SAS-3) - SAS 12Gb / s (external) - rack-mountable - 2U
Manufacturer
•HPE
Reference
•Q1J28A
Article
•1536665
Intrastat
•84717020
Shipping weight
•18.4 kg
<br/>
Device Type
Hard drive array
Enclosure Type
Rack-mountable - 2U
Installed Devices / Modules Qty
0
Supported Devices / Modules Qty
12
Supported Drives
SAS-3
Max Supported Capacity
120 TB
HDD Array External Interface
SAS 12Gb/s
Maximum LUNs
512
CPU
No CPU
Type
RAID (SAS-3)
Installed Qty
2
Interface Type
SAS 12Gb/s
Data Transfer Rate
1.2 GBps
Cache / Buffer Size (Max)
8 GB
RAID Level
RAID 1, RAID 5, RAID 6, RAID 10
Installed Qty
2
Type
No HDD
Expansion Bays
12 (total) / 12 (free) - 3.5" LFF
Interfaces
8 x SAS 12Gb/s ¦ 2 x mini-USB 2.0 (management) ¦ 2 x Ethernet 1000Base-T (management) - RJ-45 ¦ 2 x SAS
OS Required
HP-UX, Red Hat Linux, Apple MacOS X, Microsoft Windows Server 2016, Microsoft Windows Hyper-V Server
Features
Systems Insight Manager (SIM)
Compliant Standards
CISPR 22 Class A, CISPR 24, EN55022, GS, EN55024, CCC, FCC Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, RoHS, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, KN24, KN22 Class A, CNS 13438 Class A, ICES-003:2004 Class A, EN61000-3-3, EN61000-3-2
ENERGY STAR Certified
Yes
Power Device
2 x internal power supply - hot-plug
Max Supported Qty
2
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Voltage Required
AC 120/230 V - 50/60 Hz
Power Consumption Operational
344 Watt
Width
44.7 cm
Depth
57.2 cm
Height
8.9 cm
Weight
18.4 kg
Service & Support
Limited warranty - parts - 3 years
Min Operating Temperature
5 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
Sound Emission
55 dBA
